20 RTAC-SVX002A-EN
Control Panel
W1 - Near Side
W2 - Far Side
W3 - Near Side
W4 - Far Side
Side View
Back View
1. Lifting chains/cables will not be the same length.
Adjust to keep unit level while lifting.
2. Do not fork lift unit.
3. Weights are typical for units with R-134a charge.
Storage
Extended storage of the outdoor
unit prior to installation requires the
following precautionary measures:
1. Store the outdoor unit in a secure
area.
2. At least every three months
(quarterly), check the pressure in the
refrigerant circuits to verify that the
refrigerant charge is intact. If it is not,
contact a qualied service organization
and the appropriate Trane sales ofce.
3. Close the discharge and liquid line
isolation valves.
General
Report any damage incurred during
handling or installation to the Trane
sales ofce immediately.

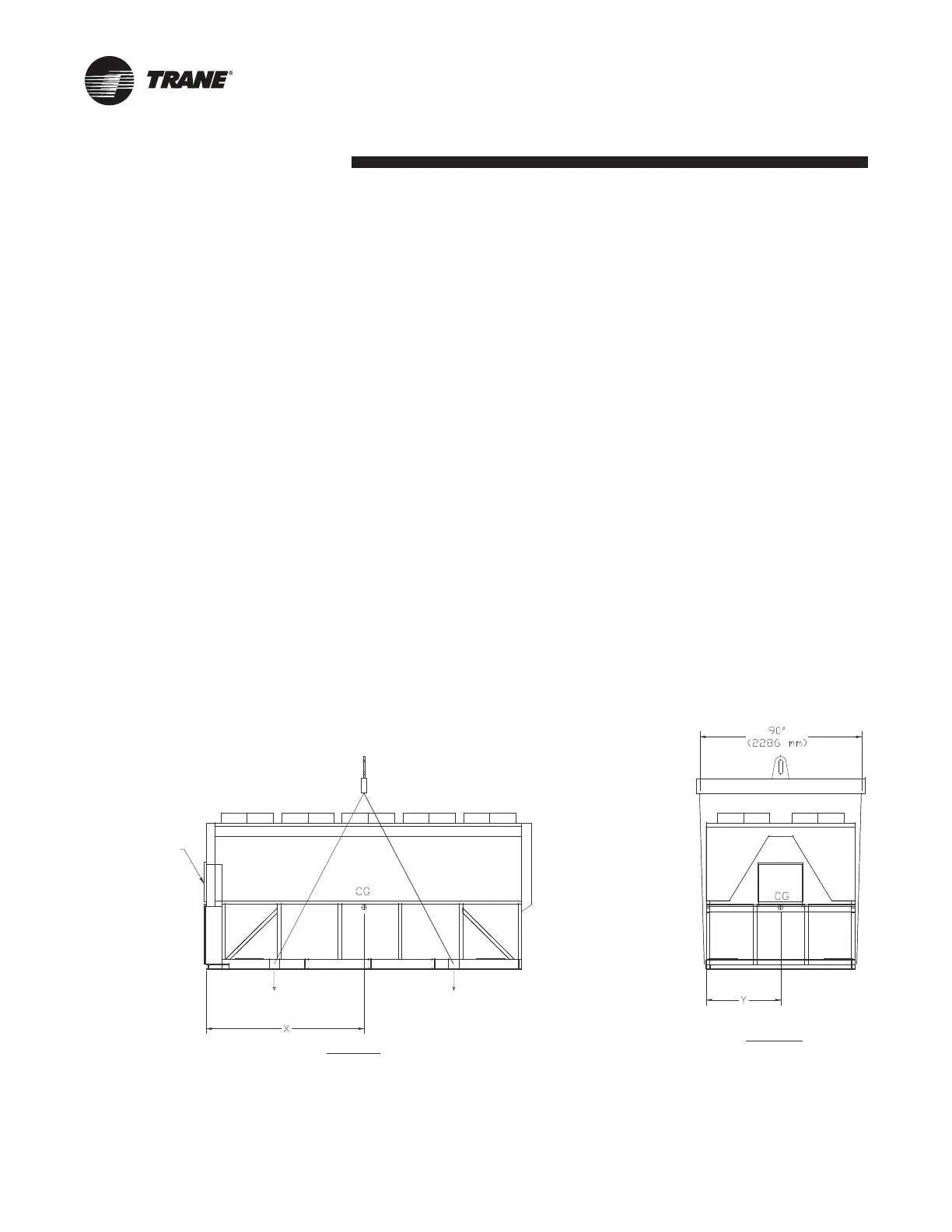

Fig. III-01 – Lifting the Unit (Package and Remote) 15-21-foot Base
Location Requirements
Setting the Unit
A base or foundation is not required if
the selected unit location is level and
strong enough to support the unit’s
operating weight as listed in Tables in
the General Information section.
See Table for lifting weights and center
of gravity (CG) dimensions.
Installation Mechanical
