RTAC-SVX002A-EN 21
Control
Panel
W1 - Near Side
W2 - Far Side
W3 - Near Side
W4 - Far Side
W5 - Near Side
W6 - Far Side
Side View
Back View
1. Lifting chains/cables will not be the same length.
Adjust to keep unit level while lifting.
2. Do not fork lift unit.
3. Weights are typical for units with R-134a charge.
1. Lifting chains/cables will not be the same length.
Adjust to keep unit level while lifting.
2. Do not fork lift unit.
3. Weights are typical for units with R-134a charge.
Installation Mechanical

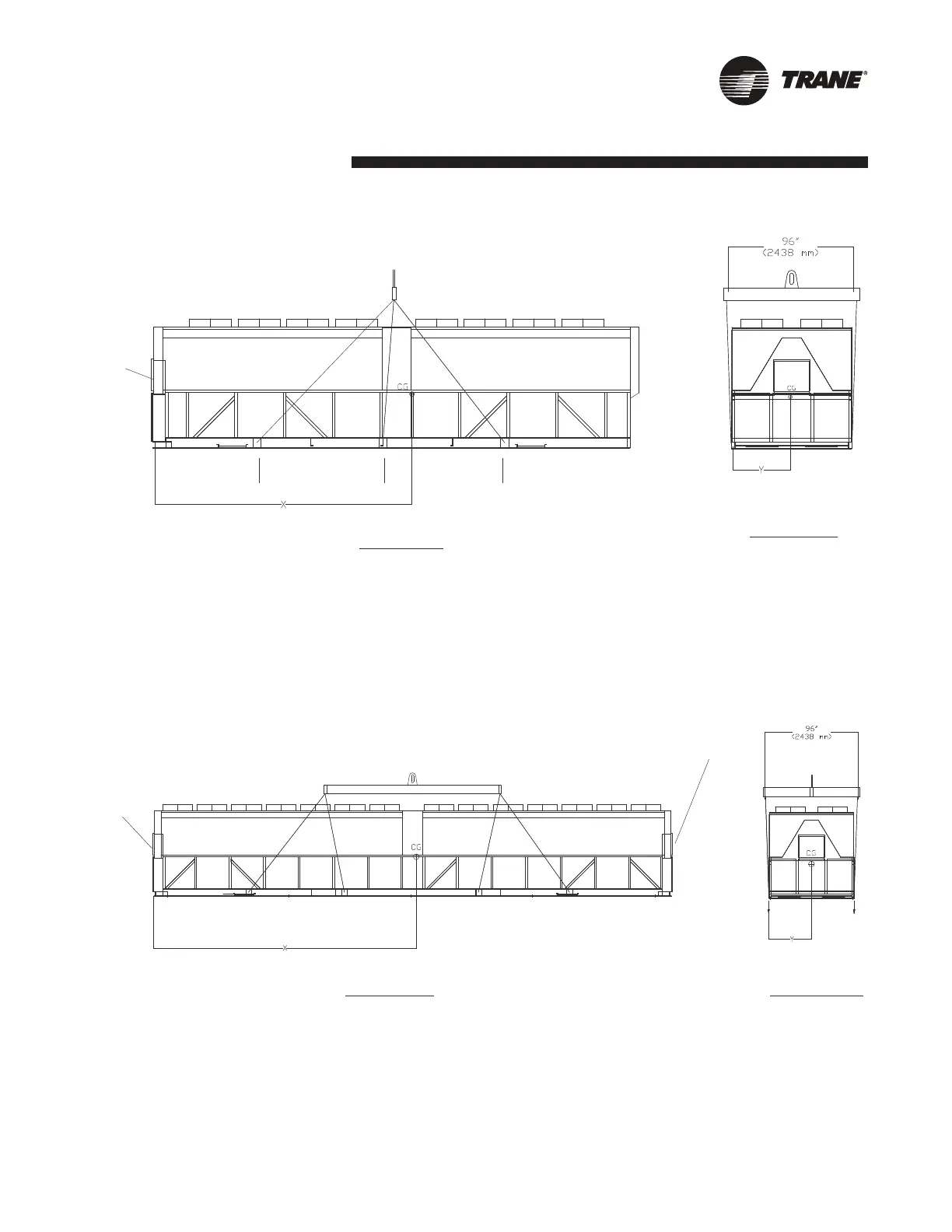

Fig. III-02 – Lifting the Unit (Package and Remote) 30-36-foot Base
Fig. III-03 – Lifting the Unit 39-45-foot Base
Control
Panel
W1 - Near Side
W2 - Far Side
Side View Back View
Control
Panel
W3 - Near Side
W4 - Far Side
W5 - Near Side
W6 - Far Side
W7 - Near Side
W8 - Far Side
To Next Page
