Trane RTAC 225 Series User Manual

RTAC-SVX002A-EN 53
If the lockout is imposed by circuit service tool, the lock should remain in effect until removed by the tool, even without
connection to service tool. For example, a technician can initiate a lock from the service tool, disconnect the service tool
and keep the lock.
No Yes
Remote
Lock
Lock
Lock
Off-line or Comm Fail
Key BAS
Auto Local
Running mode
as determined
by EasyView
or DynaView
Assigned circuit
with the lock
Circuit
Lock
Ice Making
Input installed
and enabled
Ice
Making
Input
DynaView or
Service tool
Installation Electrical

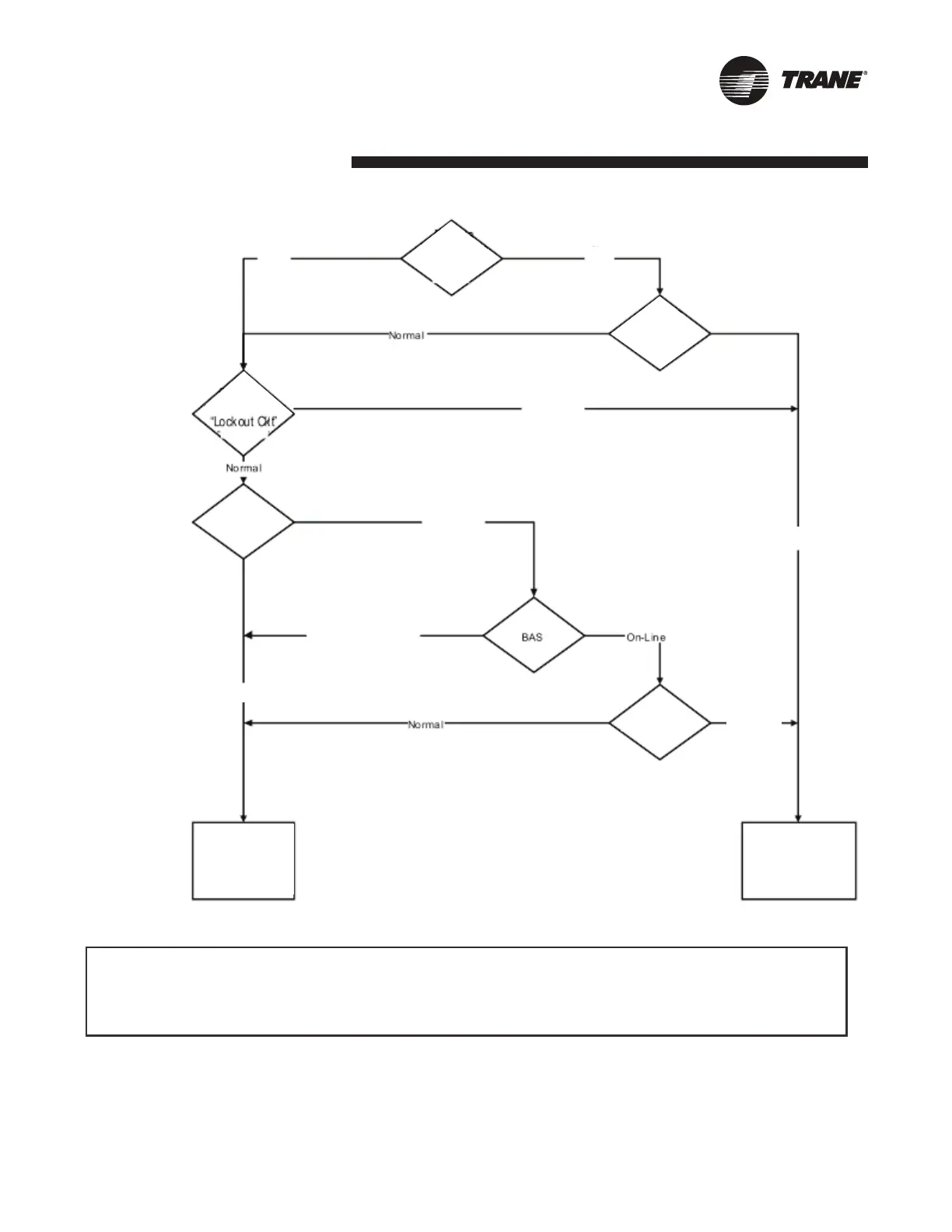

Fig. IV-08 – Arbitration owcharts of conguration points of locking circuit
