RTAD-SVX01F-E4 39
Installation - Mechanical

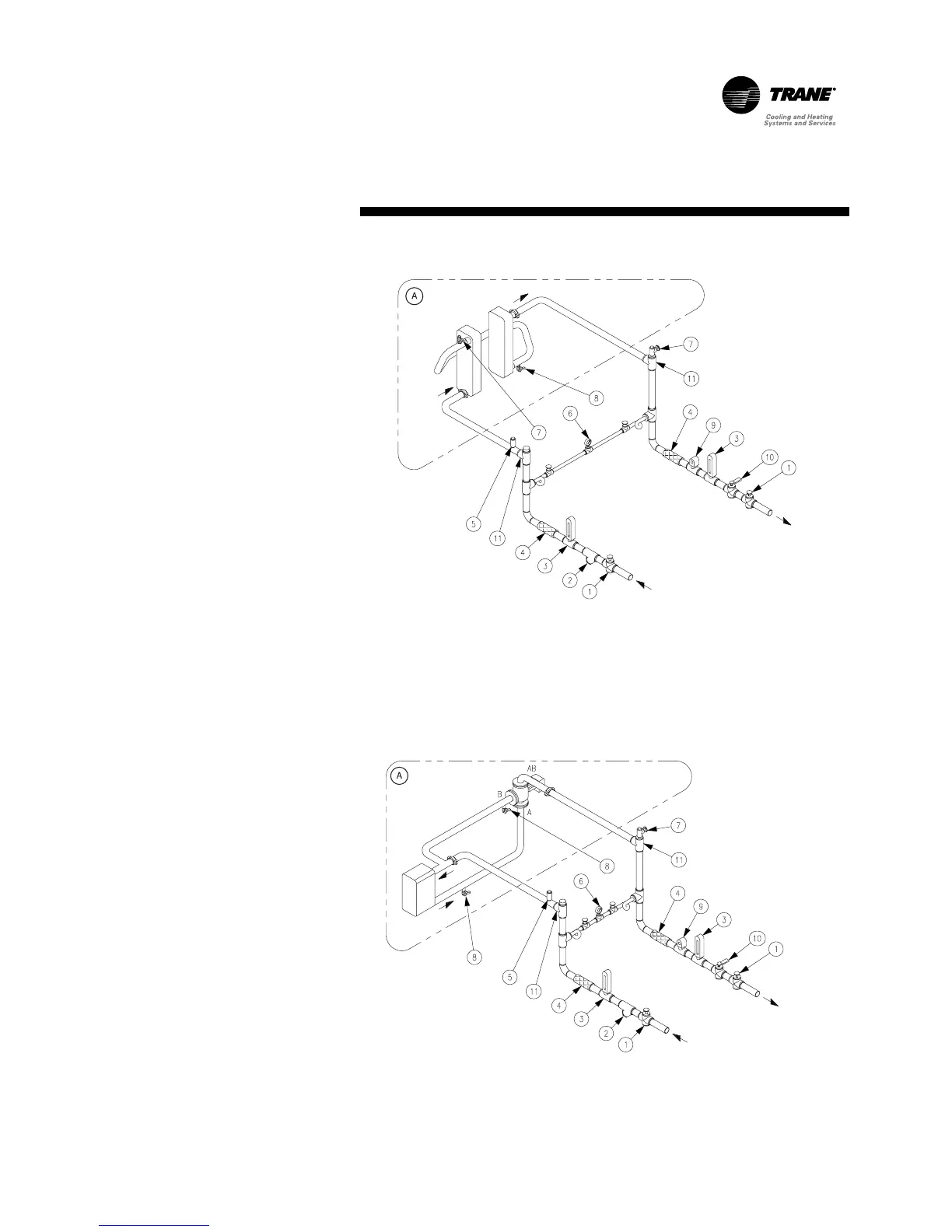

Figure 21 - Suggested condenser piping for typical RTAD PHR
Figure 22 - Suggested condenser piping for typical RTAD THR with 3-way valve
A. Trane-supplied with 3-way valve
option
1. Gate valve
2. Water strainer
3. Thermometer (user option)
4. Vibration eliminator
5. Relief valve
6. Valved pressure gauge
7. Vent
8. Drain
9. Flow switch (warm water flow)
10.Balancing valve
11. Clean out tee
A. Trane-supplied
1. Gate valve
2. Water strainer
3. Thermometer (user option)
4. Vibration eliminator
5. Relief valve
6. Valved pressure gauge
7. Vent
8. Drain
9. Flow switch (warm water flow)
10.Balancing valve
11. Clean out tee
