RTAD-SVX01F-E4 33
Installation - Mechanical

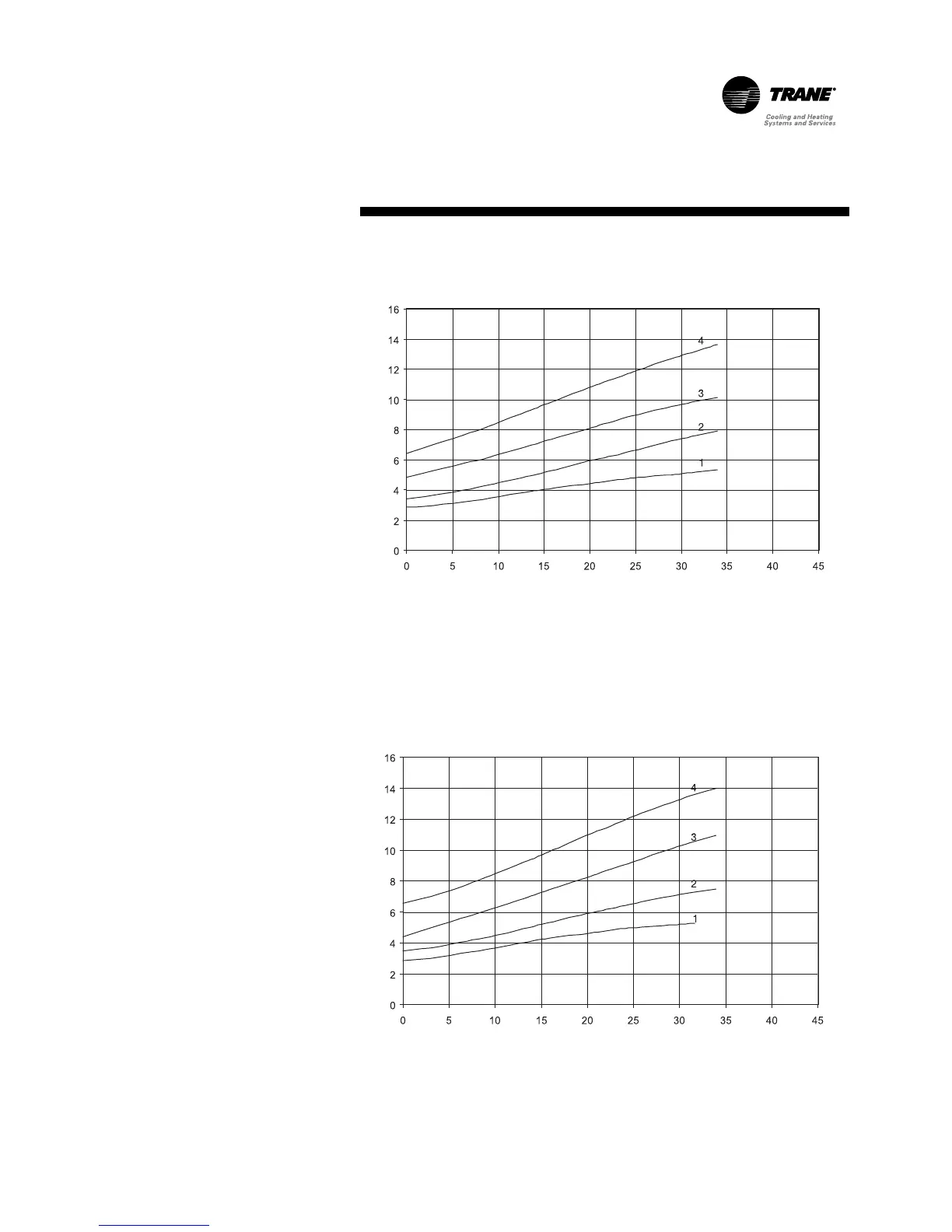

Figure 9 - RTAD 115HE - 125HE - 145SE - 150SE
Pump Capacity Curve Single Pump
1 = LRN 208-13/5.5
2 = LRN 208-14/7.5
3 = SIL 208-16/11
4 = SIL 208-17/15
Figure 10 - RTAD 115HE - 125HE - 145SE - 150SE
Pump Capacity Curve Dual Pump
1 = LRN 208-13/5.5
2 = LRN 208-14/7.5
3 = SIL 208-16/11
4 = SIL 208-17/15
kW
l/s
kW
l/s
