36 RTAD-SVX01F-E4
Installation - Mechanical

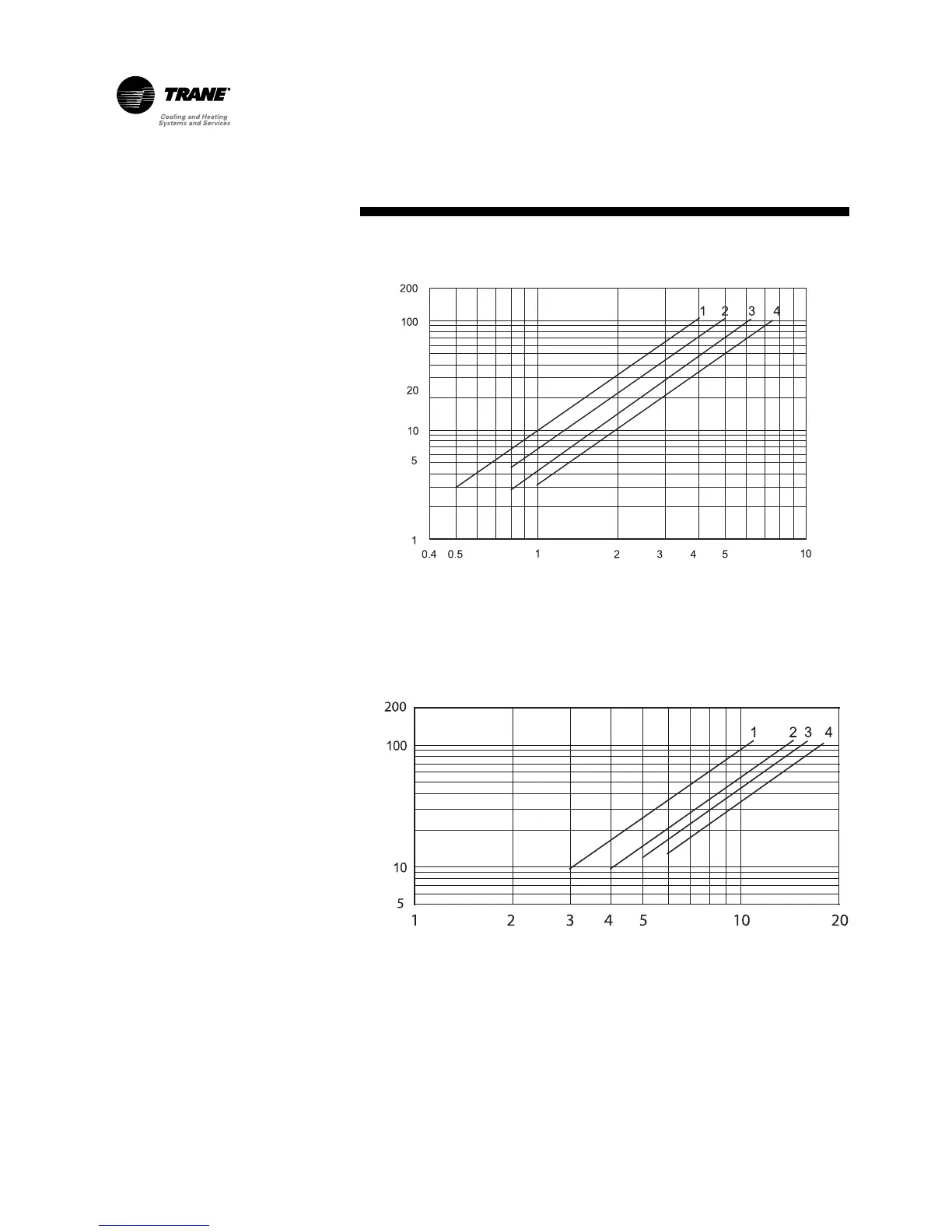

Figure 15 - Condenser Water Pressure Drop RTAD Partial Heat Recovery - Heating Mode
1 = 085-100
2 = 115-125
3 = 145-150
4 = 165-180
Figure 16 - Condenser Water Pressure Drop RTAD Total Heat Recovery - Heating Mode
1 = 085-100
2 = 115-125
3 = 145-150
4 = 165-180
l/s
kPa
l/s
kPa
