Trane S8B1B080M4PSBA - Furnace General Installation; General Venting

22
S8XB-SF-2B-EN

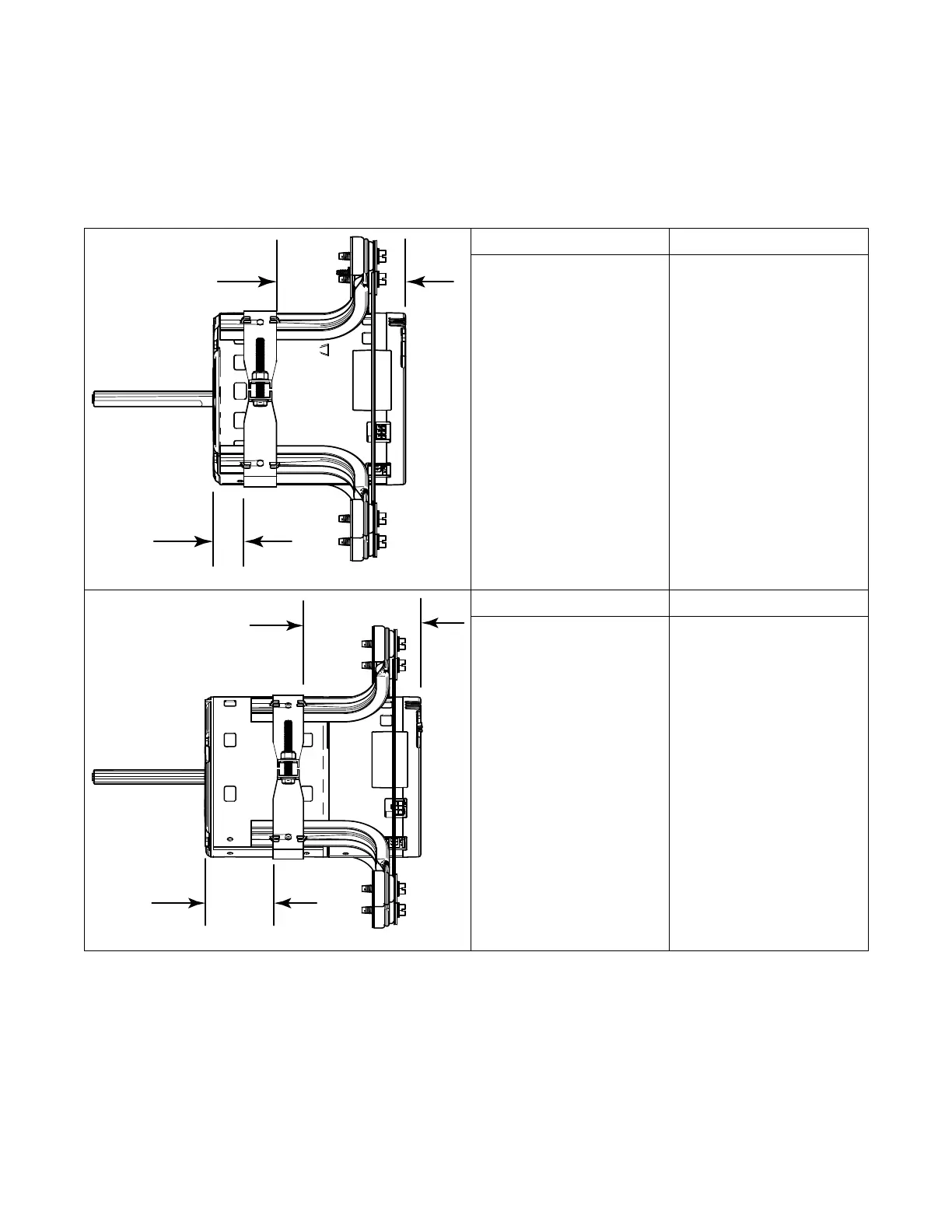

Belly Band Location
Distance from belly band to the front face of motor for
minimum vibration
1.00
A
Blower housing and wheel removed from view for clarity.
Furnace Model Dimension “A” (inches)
B080
4.25 (4–1/4)
2.375
A
Blower housing and wheel removed from view for clarity.
Furnace Model Dimension “A” (inches)
D120
4.125 (4–1/8)
