Unit Dimensions
RT-SVX37B-EN 13

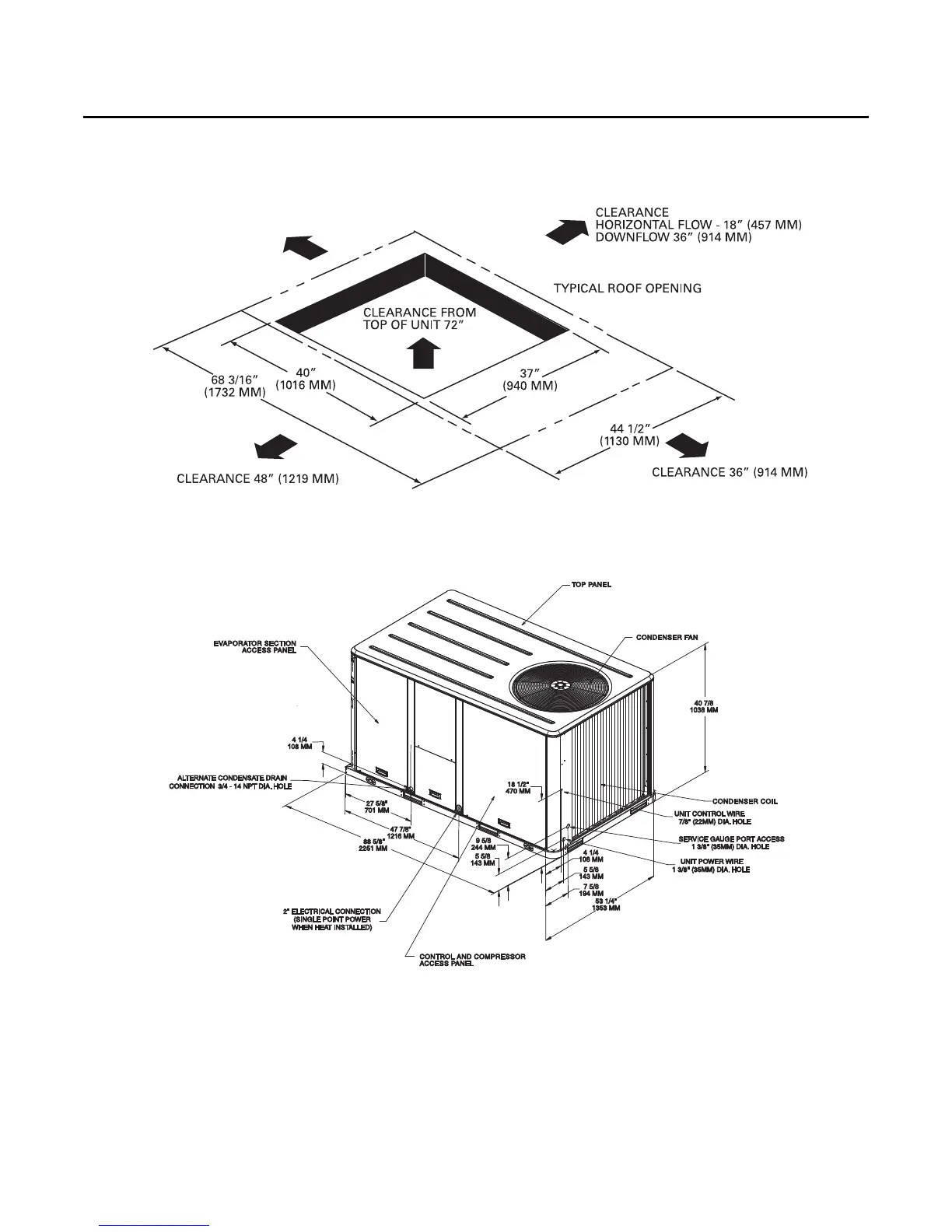

Figure 4. 5 ton units - unit clearance and roof opening
Note: All dimensions are in inches/millimeters.
CLEARANCE 36” (914 MM)
Figure 5. 6, 7½ ton units
Note: All dimensions are in inches/millimeters.
