RT-SVX37B-EN 17
Installation
WARNING
Heavy Objects!
Do not use cables (chains or slings) except as shown.
Each of the cables (chains or slings) used to lift the unit
must be capable of supporting the entire weight of the
unit. Lifting cables (chains or slings) may not be of the
same length. Adjust as necessary for even unit lift.
Other lifting arrangements may cause equipment or
property-only damage. Failure to properly lift unit could
result in death or serious injury.
WARNING
Improper Unit Lift!
Test lift unit approximately 24 inches to verify proper
center of gravity lift point. To avoid dropping of unit,
reposition lifting point if unit is not level. Failure to
properly lift unit could result in death or serious injury
or possible equipment or property-only damage.

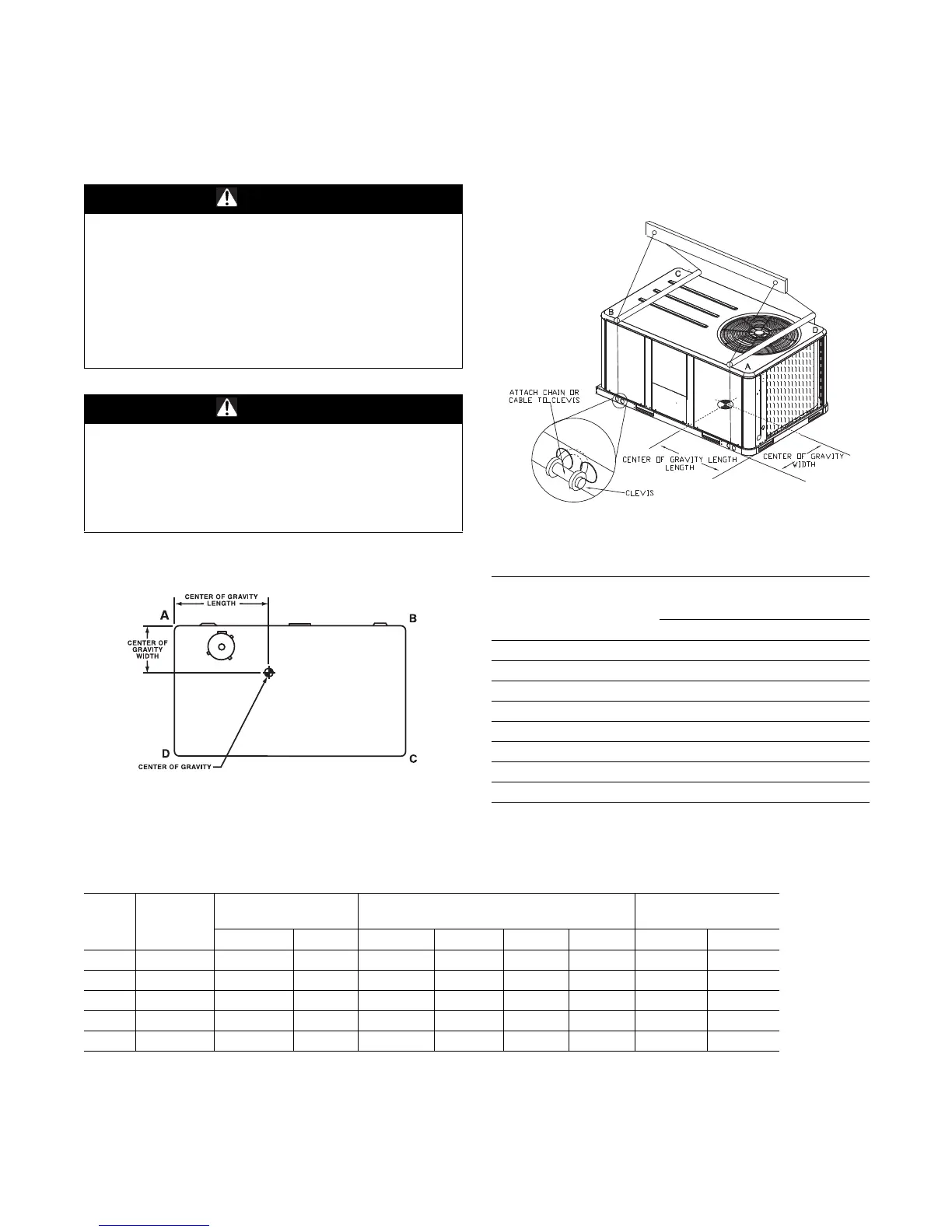

Figure 11. Corner weights
Figure 12. Rigging and center of gravity
Table 1. Factory installed options (fiops)/accessory net
weights (lbs/kgs)
(a),(b)
(a)Weights for options not listed are <5 lbs (3kgs).
(b)Net weight should be added to unit weight when ordering factory-in-
stalled accessories.
TSC060ED TSC072E-120ED
Net Weight Net Weight
Accessory 5 Ton 6-10 Ton
Barometric Relief 7/3 10/5
Coil Guards 12/5 20/9
Economizer 26/12 36/16
Hinged Doors 10/5 12/5
Manual Outside Air Damper 16/7 26/12
Motorized Outside Air Damper 20/9 30/14
Oversized Motor - 8/4
Roof Curb 61/28 78/35
Table 2. Maximum unit & corner weights (lbs/kgs) and center of gravity dimensions (in./mm) - cooling models
Tons
Unit
Model No.
Maximum Model
Weights
(a)
(lbs/kgs) Corner Weights
(b)
(lbs/kgs)
Center of Gravity
(in./mm)
Shipping Net A B C D Length Width
5 TSC060ED 633/288 528/240 167/76 128/58 108/49 125/59 40/1006 597/23
6 TSC072ED 915/415 783/355 281/127 192/87 143/65 167/76 38/963 535/21
TSC090ED 956/434 824/374 331/150 181/82 144/65 168/76 35/889 512/20
TSC102ED 1054/478 916/415 307/139 257/117 156/79 195/89 40/1015 520/20
10 TSC120ED 1078/489 940/426 326/ 148 244/111 175/71 196/88 40/1003 532/21
(a) Weights are approximate.
(b)Corner weights are given for information only.
