RTWB Heat Pump Application
41RLC-SVU02F-E4

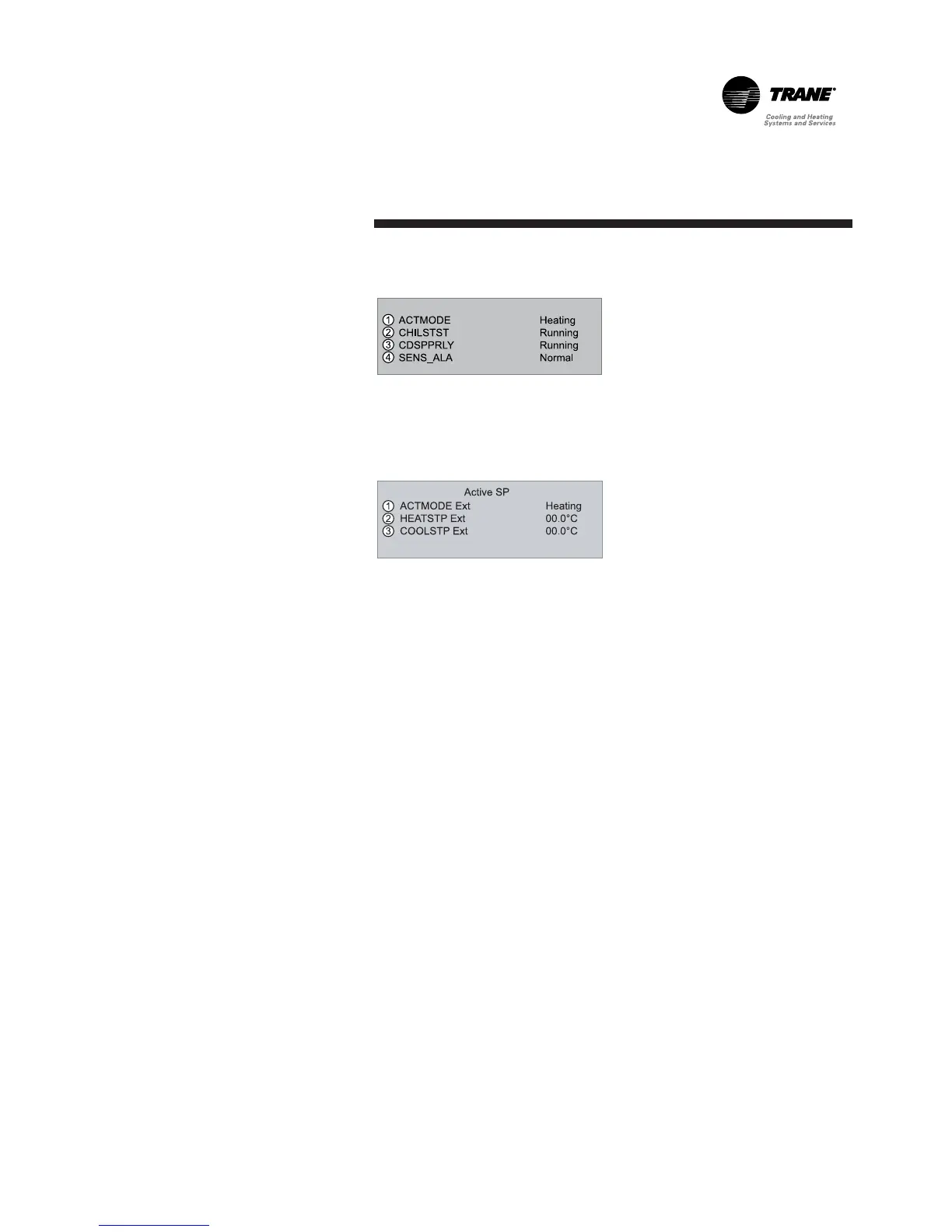

Binary Outputs
1 = Active Mode (Heating, Cooling)
2 = Unit Status (Stopped, Running)
3 = CDS Pump Status (Stopped, Running)
4 = Sensor Alarm (Normal, Alarm)
Active Setpoints
1 = Active Mode (Heating, Cooling)
2 = Heating Setpoint (displayed if Heating Mode)
3 = Cooling Setpoint (displayed if Cooling Mode)
Note: "
Ext
" is displayed according to the External Control setting (No,
Partial (Mode only), Full (Mode + SP))
