18-CD20D1-18
5
Installer’
s Guide
From Dwg. 21C341700 Sh. 1 Rev. 0

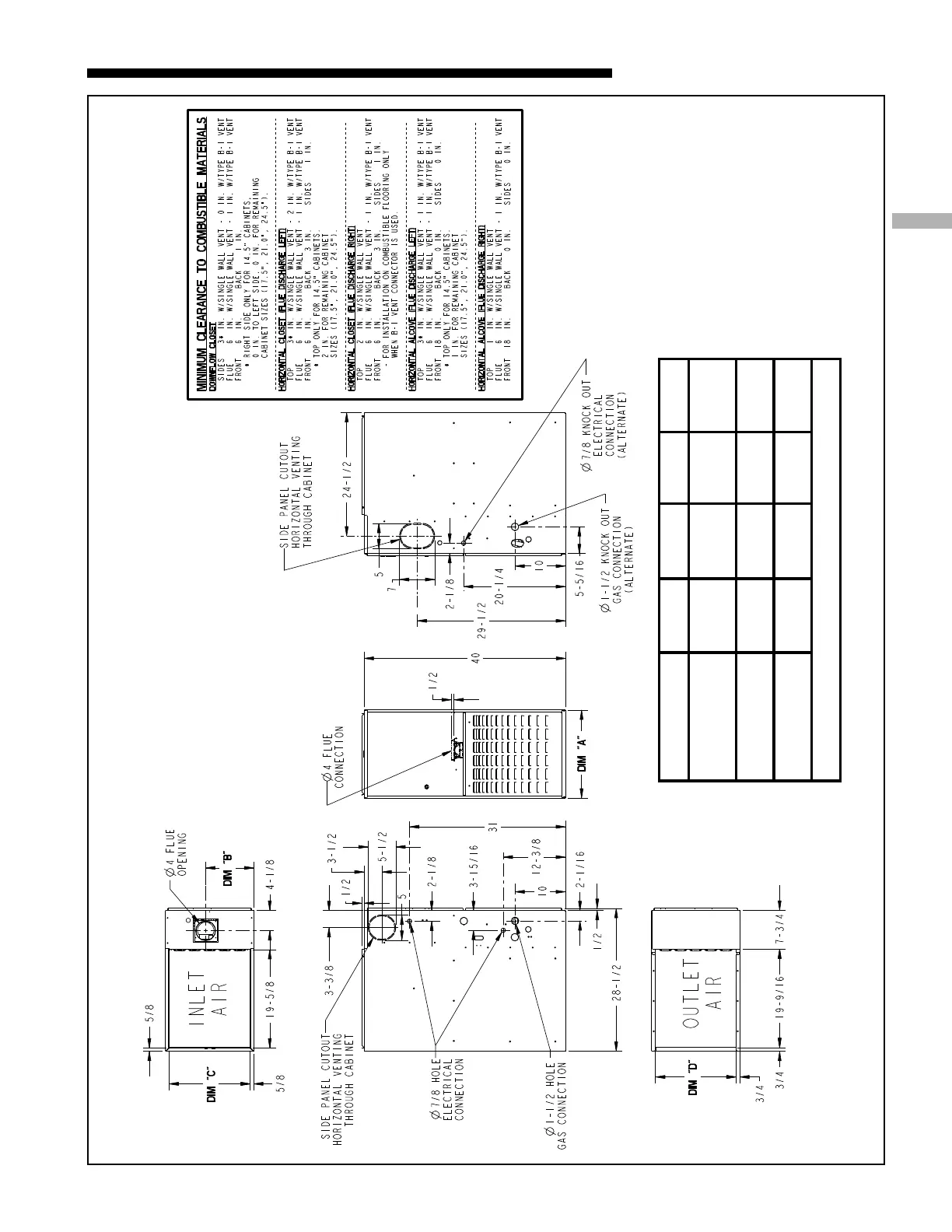

*DD-R9V-F OUT
LINE DRA
WING
(ALL DIMENSIONS ARE IN INCHES)
MODEL
A
B
C
D
*DD060R9V3F
*DD080R9V3F
17-1/2"
9-5/8"
16-1/4"
16"
*DD100R9V5F
21"
13-1/16"
19-3/4"
19-1/2"
*DD120R9V5F
24-1/2"
15-5/16"
23-1/4"
23"
* - The First Letter Ma
y Be "A" or "T"
4
6
Table of Contents
Downflow / Horizontal
1
Upflow / Horizontal
1
Safety Section
2
Contents
3
General Installation Instructions
3
Location and Clearances
3
Outline Drawing
4
Installer’s Guide
6
Upflow Installation
6
Horizontal Installation
6
Downflow Installation
6
Air for Combustion and Ventilation
7
Minimum Area in Square Feet
7
Typical Suspended Upflow/Horizontal Furnace
7
Duct Connections
8
Return Air Duct Connection
8
Minimum Free Area in Square Inches each Opening (Furnace Only)
8
Return Air Filters
9
Typical Upflow Return Air Filter Installations
9
Upflow Furnace Return Air Filters
10
Bottom Filter Rack Installation
10
Filter Rack Assembly
10
Typical Upflow Left Side Return Filter Rack Installation
11
Typical Upflow Right Side Return Filter Rack Installation
11
Bottom Engagement
11
Blower Door/Hinge Removal
12
Installing the Filter
12
Typical Downflow Furnace
12
Alternate Upflow Filter Clip / Bracket Installation
12
General Venting Instructions
13
Vent Piping
13
Venting into a Masonry Chimney
13
Internal Masonry Chimneys
13
External Masonry Chimney
14
Masonry Chimney Venting
14
Gas Vent Termination
14
Electrical Connections
15
Field Wiring Diagram for Variable Speed 2 Stage Furnace
15
1 Stage Heating
15
No Cooling
15
Humidistat Hookup
17
Fire or Explosion Hazard
18
Gas Piping
18
Left Side Piping (Standard)
18
Right Side Piping (Optional)
18
White-Rodgers 36E
19
White-Rodgers 36G
19
Final Manifold Pressure Settings
20
Gas Flow in Cubic Feet Per Hour
20
Orifice Sizes
20
Part Numbers for Replacement Orifices
20
Start up and Adjustment
21
Sequence of Operation
21
Preliminary Inspections
21
1St Stage Satisfied:
21
Control and Safety Switch Adjustment
22
Indoor Blower Timing
22
Limit Switch Check out
22
Room Air Thermostat
22
Abnormal Conditions
23
Precautionary Measures
23
Loss of Flame
23
Power Failure
23
Integrated Furnace Control Error Flash Codes
24
