Trane UHSB - Dimensional Data: S Model Header Type; S Model Header Type Dimensions

26 UH-SVX01A-EN
Dimensional Data
Note: Motors are totally enclosed, thermally protected, sleeve bearing, with 4" (w) x 2" (h) conduit connection boxes.
3/8-16 nutserts are attached to enclosure for balanced hanging.

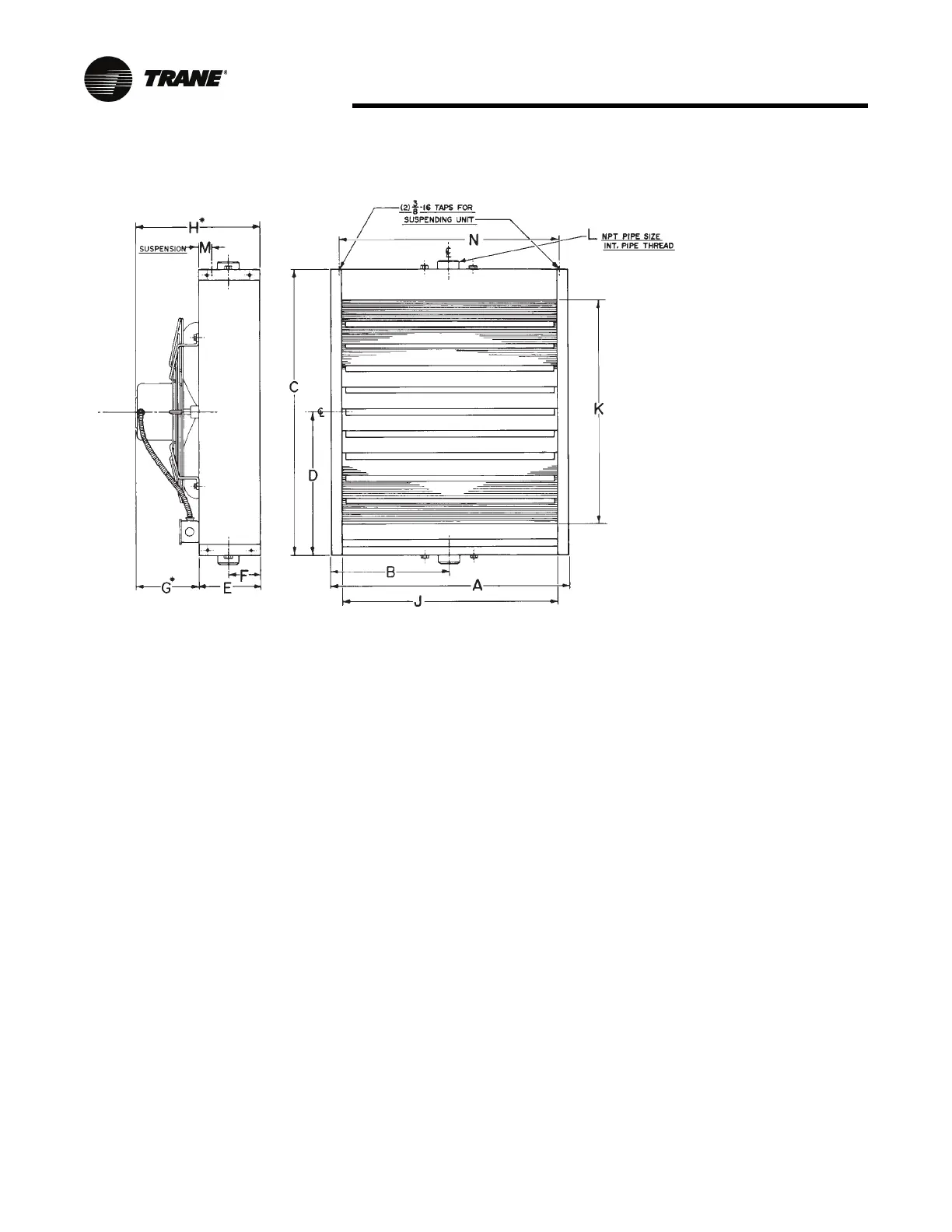

Figure 27. Header Type Models 18 thru 360
