UH-SVX01A-EN 25
Dimensional Data
Dimensional Data: S Model
Note: Motors are totally enclosed, thermally protected, sleeve bearing, with 4" (w) x 2" (h) conduit connection boxes.
3/8-16 nutserts are attached to enclosure for balanced hanging.

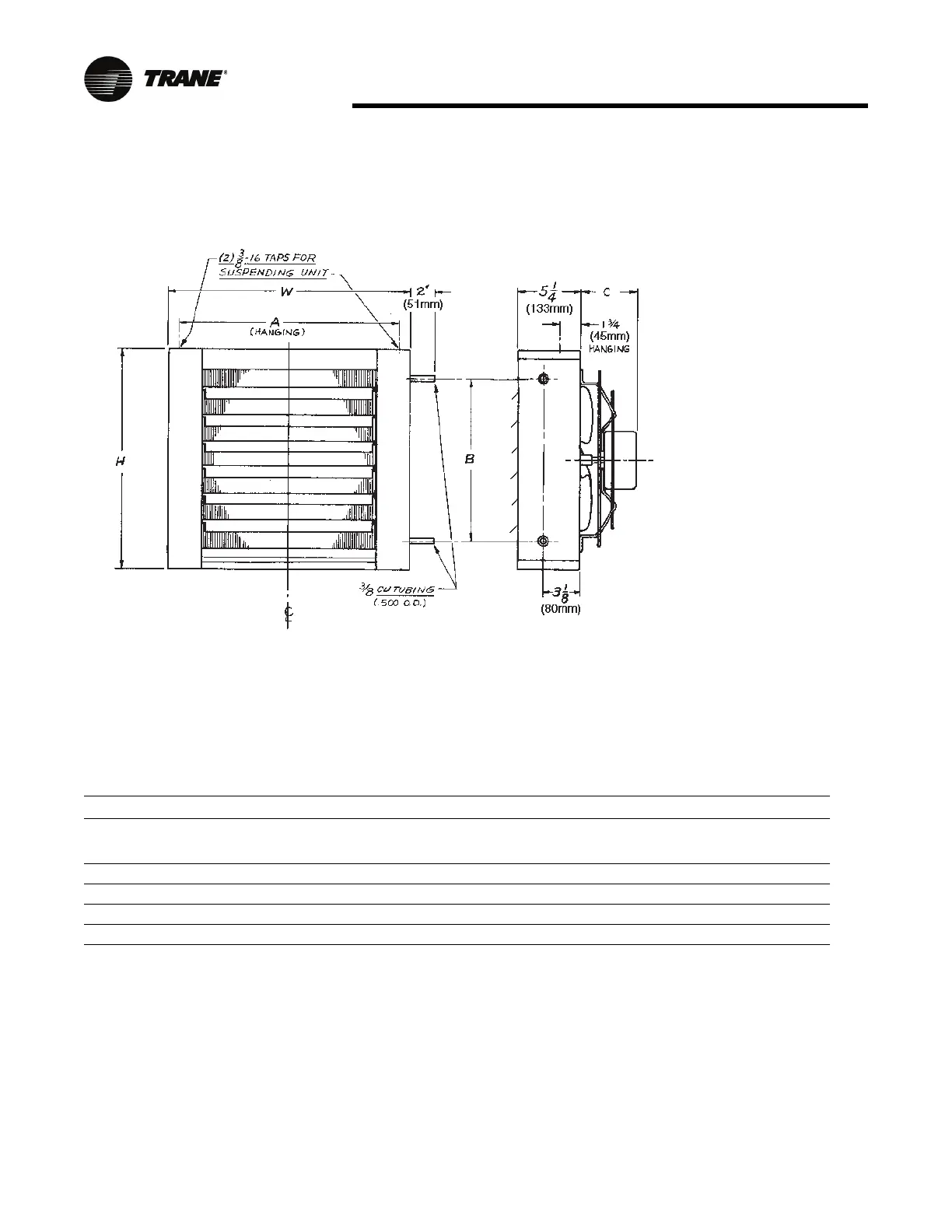

Figure 26. Serpentine Type Models A08, A18, A25, A36
Table 10. Table 3- Serpentine Models
MODEL
H inches
(mm)
W inches
(mm)
A inches
(mm)
B inches
(mm)
C inches
(mm)
NO. OF
LOUVERS
NOM. FAN
DIAM. inches
(mm)
APPROX.
SHIP WT. lbs.
(kg)
A08 16 (406) 18 (457) 16 7/32 (412) 11 1/4 (286) 4 1/4 (108) 5 9 (229) 22 (10.0)
A18 16 (406) 18 (457) 16 7/32 (412) 11 1/4 (286) 4 1/4 (108) 5 10 (254) 24 (10.9)
A25 16 (406) 18 (457) 16 7/32 (412) 11 1/4 (286) 4 1/4 (108) 5 10 (254) 25 (11.3)
A36 18 1/2 (470) 20 1/2 (521) 18 22/32 (475) 13 3/4 (349) 5 1/8 (130) 6 12 (305) 31 (14.0)
