Electrical Connections

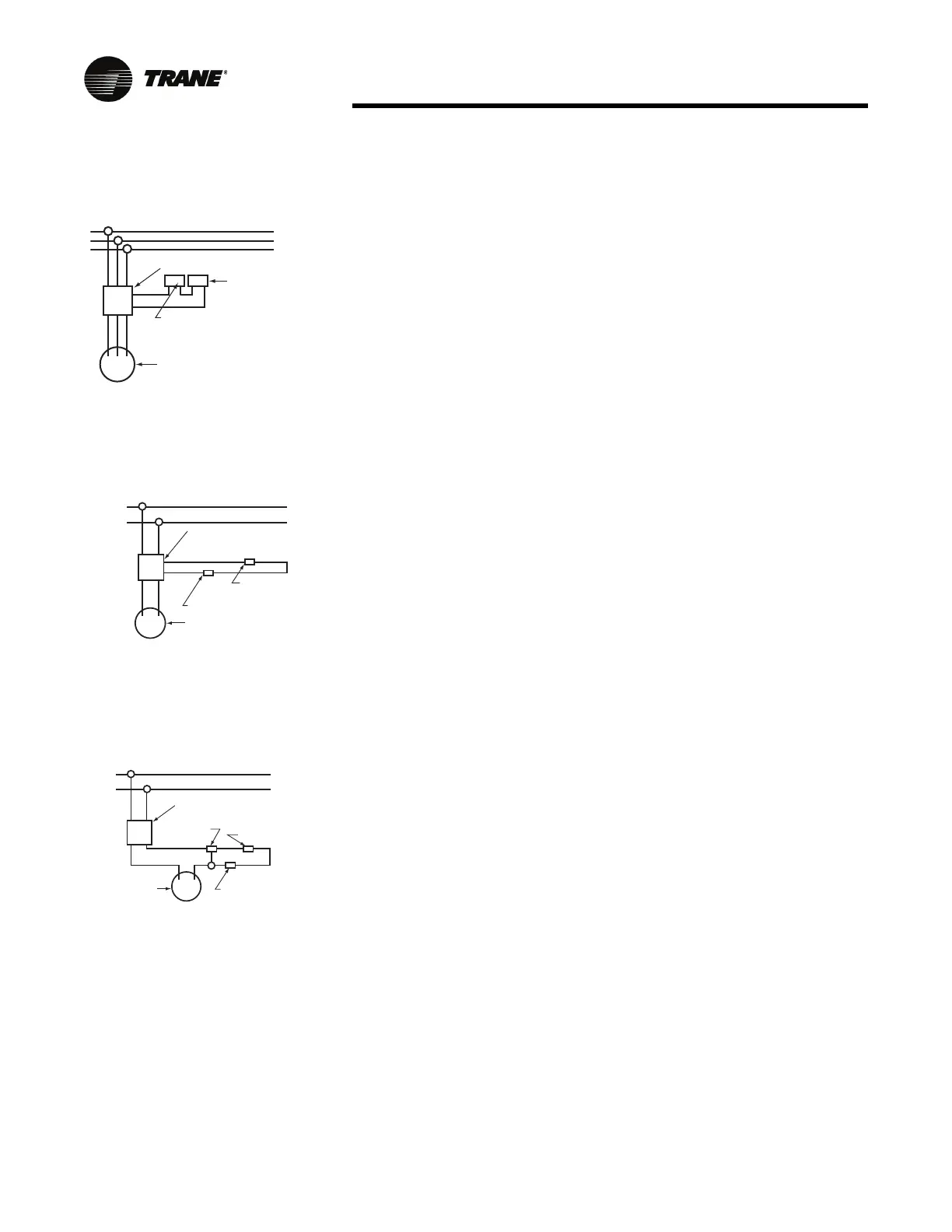

Figure 55.
Figure 56.
Figure 57.
MOTOR
MANUAL STARTING
SWITCH
3 PHASE LINE
MANUAL CONTROL WITH
THREE PHASE MOTOR
LIMIT CONTROLLER
REVERSE ACTING
THERMOSTAT
MOTOR
MANUAL STARTER
WITH BUILT IN
SELECTOR SWITCH
1 PHASE LINE
THREE POSITION SELECTOR SWITCH
BUILT INTO MAGNETIC STARTER FOR
MANUAL OR THERMOSTATIC CONTROL
LIMIT CONTROLLER
THERMOSTAT
MOTOR
MANUAL STARTING
SWITCH
1 PHASE LINE
THREE POSITION SELECTOR SWITCH
USED FOR EITHER MANUAL
OR THERMOSTATIC CONTROL
LIMIT CONTROLLER
SELECTOR
SWITCH
THERMOSTAT
