Trane UniTrane FCD 721 - Page 44

Installation
UNT-SVX10G-E444

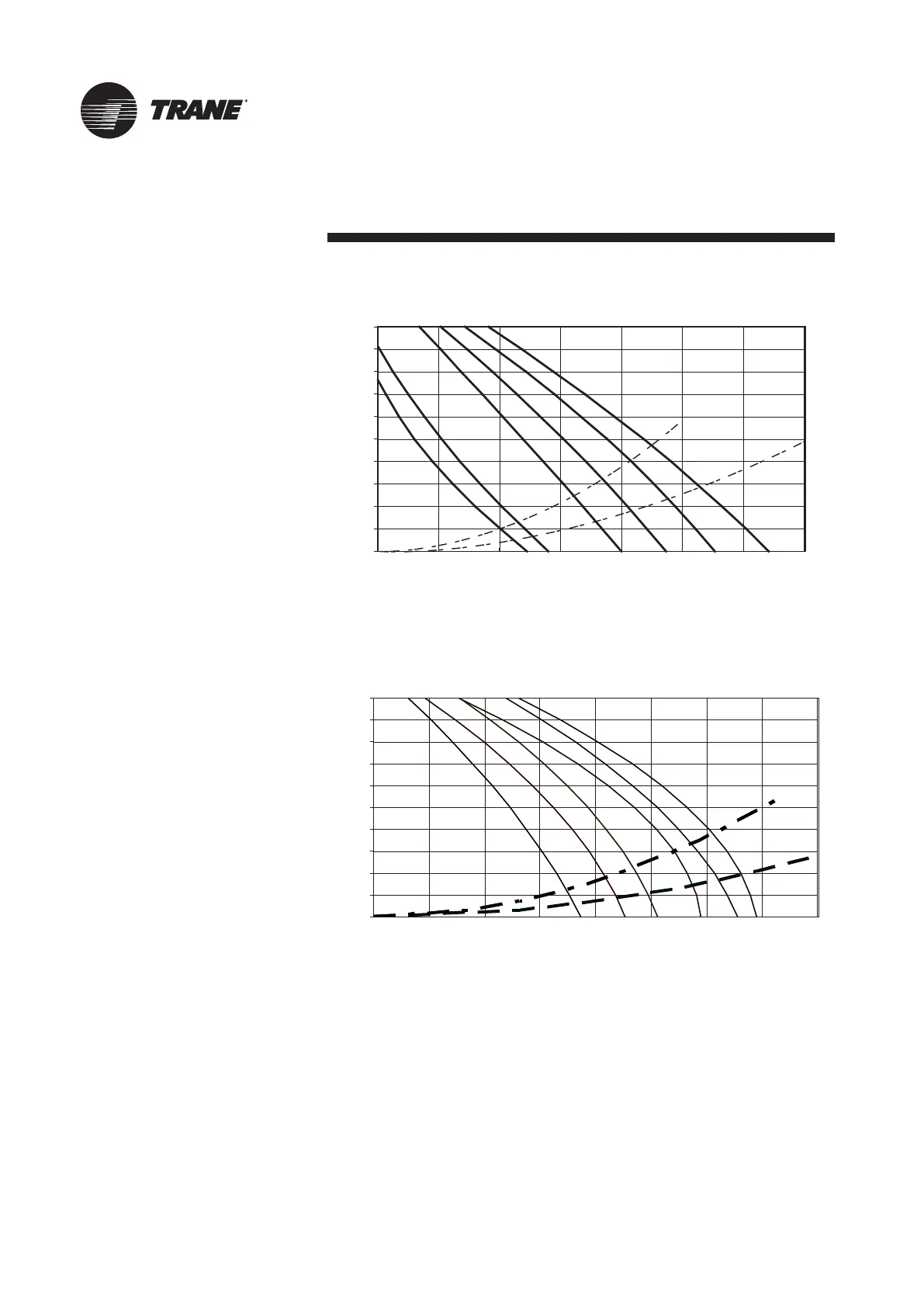

Figure 40 - External Static Pressure - FCD 508 with G3 filter
D1 = Discharge plenum only, ø200 mm air duct connection(s)
D2 = Discharge plenum + return plenum, ø200 mm air duct connections(s)
Figure 41 - External Static Pressure - FCD 512 with G3 filter
D1 = Discharge plenum only, ø200 mm air duct connection(s)
D2 = Discharge plenum + return plenum, ø200 mm air duct connections(s)
0
10
20
30
4
0
5
0
60
70
80
90
100
0200400600800100012001400
D2
D1
12 3 4 5 6
m3/h
Pa
0
10
20
30
40
50
60
70
80
90
100
02004006008001000120014001600
D1
D2
123456
m3/h
Pa
