Installation
45UNT-SVX10G-E4

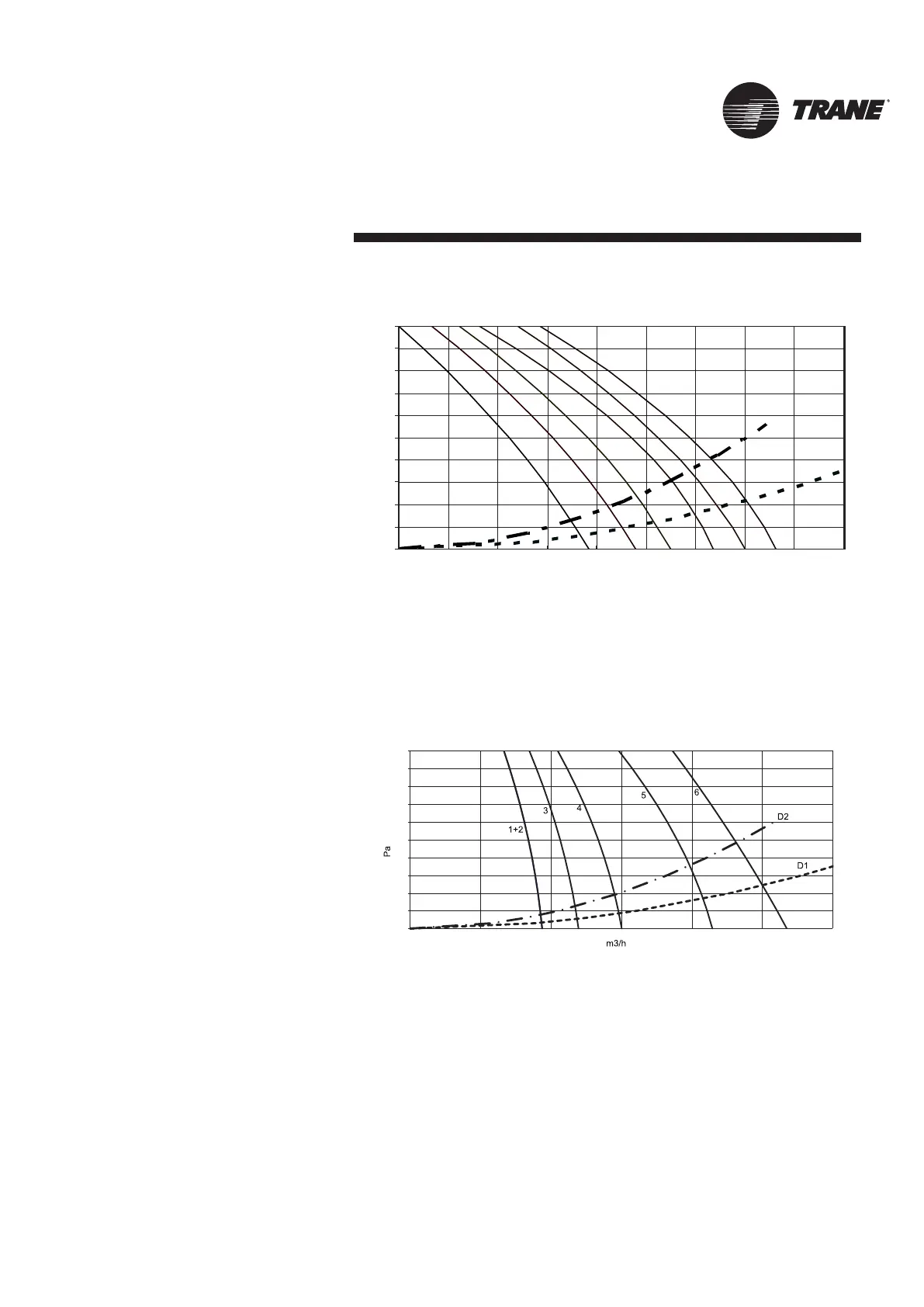

Figure 42 - External Static Pressure - FCD 612 with G3 filter
D1 = Discharge plenum only, ø200 mm air duct connection(s)
D2 = Discharge plenum + return plenum, ø200 mm air duct connections(s)
Figure 43 - External Static Pressure - FCD 721 with G3 filter
D1 = Discharge plenum only, ø200 mm air duct connection(s)
D2 = Discharge plenum + return plenum, 0200mm air duct connections(s)
