Trane UniTrane FCD User Manual

Installation
23UNT-SVX10G-E4
Condensate drainage
connection
Provide a U-trap on the drainage
line. It is vital to use tubes that do
not become deformed when bent.
It is recommended to secure
connection between the tube and
the drain with a clamp or a collar.
CAUTION! Make sure there is no
counter-slope or debris which would
prevent condensate drainage. (see
Figure 14)

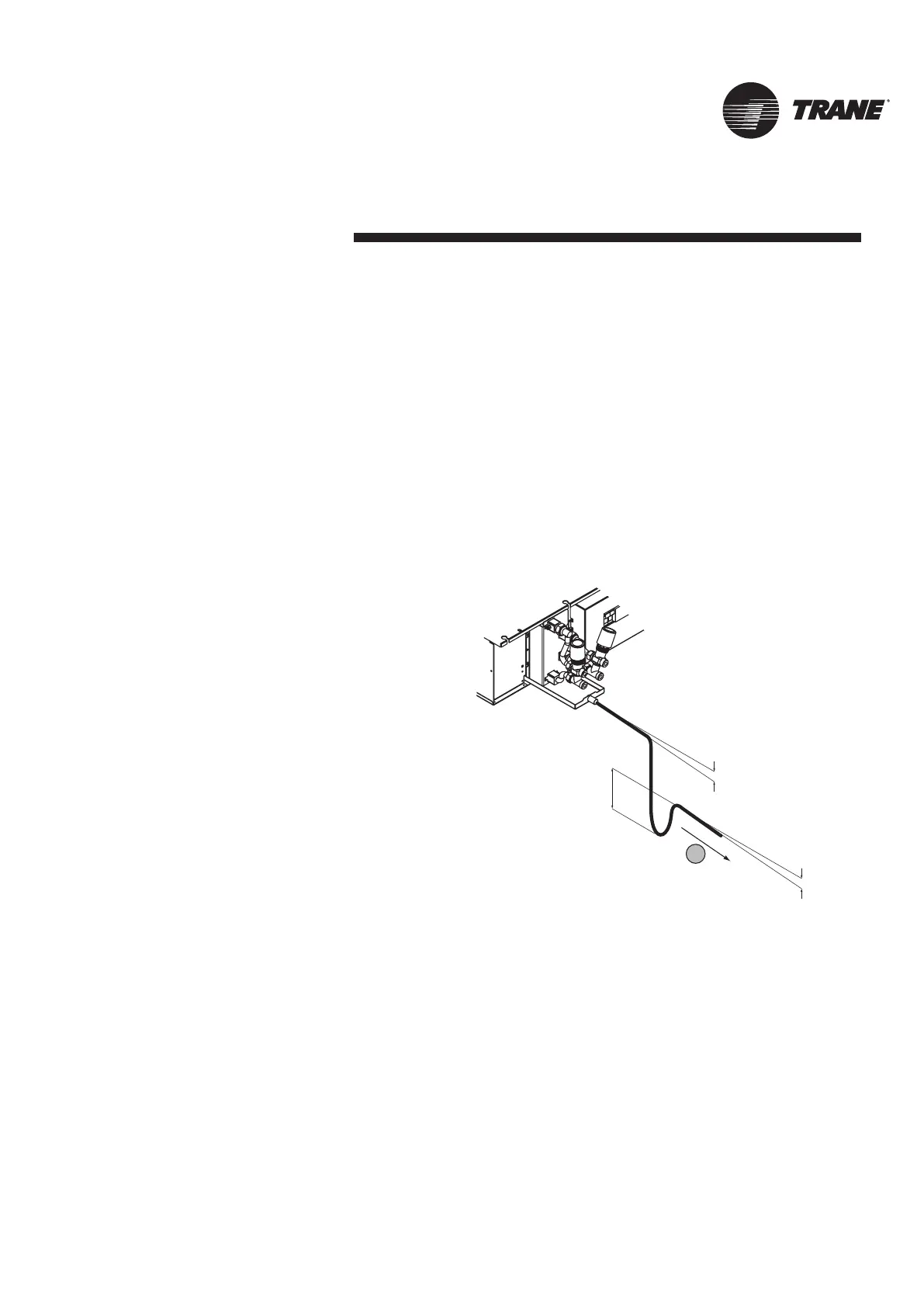

Figure 14 - Single unit condensate drainage
A = To local condensate drain pipe
60 mm
10 mm/m
10 mm/m
A
