Trane UniTrane FCD User Manual

Installation
UNT-SVX10G-E450

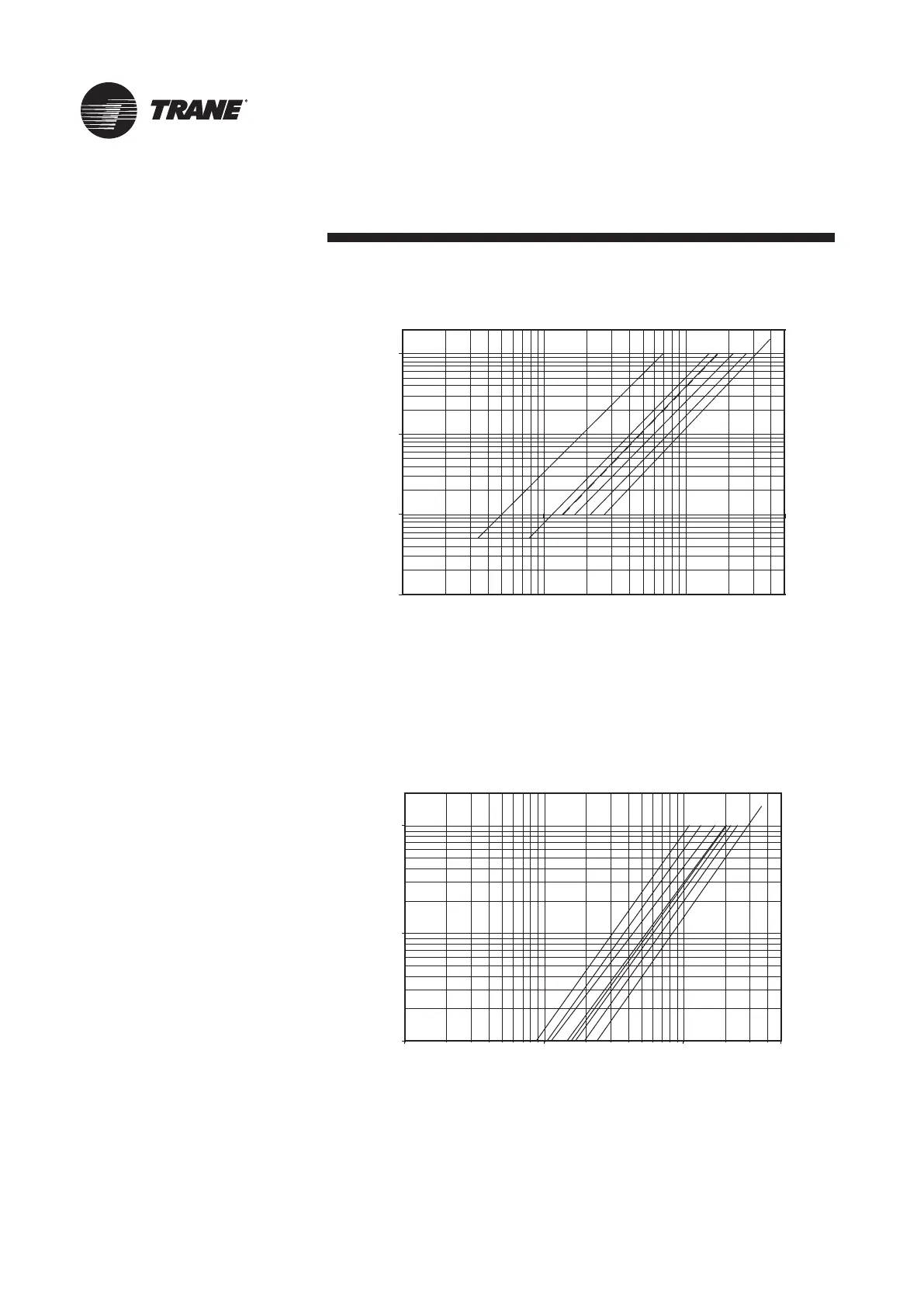

Figure 52 - Water pressure drop through the coils - Heating mode, Standard 2-pipe
coil
1 = FCD Size 101-103 / FED 100 5 = Size 508-512 / FED 500
2 = FCD Size 203-204 / FED 200 6 = Size 612 / FED 600
3 = FCD Size 304-306 / FED 300 7 = Size 721
4 = FCD Size 406-408 / FED 400
0
1
10
100
10 100 1000
5000
kPa
l/h
12
34 5 6 7
2
00
Figure 53 - Water pressure drop through the coils - Heating mode, High capacity
2-pipe coil
1
10
100
10 100 1000
kPa
l/h
1234 567
8
5000
200
1 = FCD Size 101-103 / FED 100
2 = Size 203
3 = FCD Size 204 / FED 200
4 = FCD Size 304-306 / FED 300
5 = FCD Size 406-408 / FED 400
6 = Size 508-512 / FED 500
7 = Size 612 / FED 600
8 = Size 721
UNT-SVX10G-BAT1_Mise en page 1 7/26/2013 2:41 PM Page 50
