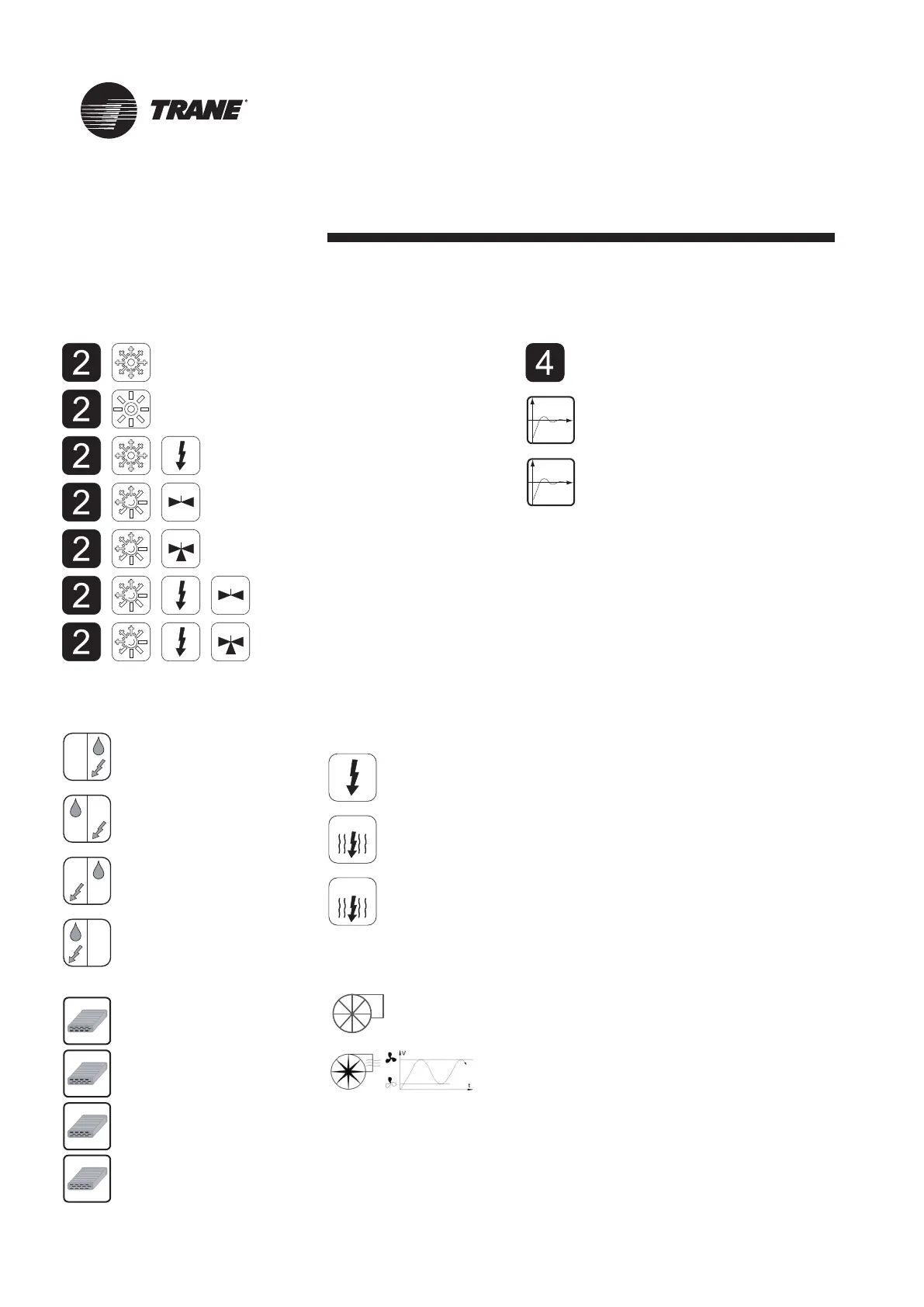

UNT-SVX10G-E46
Installation
ƒ = Indicates the unit handing
= Indicates the coil type
= Indicates the presence of an
electric heater
= Indicates the factory-wired fan speeds (AC motor) or presence of EC
motor
= Indicates the unit description
= Indicates the ZN control configuration program
2-pipe cooling only
2-pipe heating only
2-pipe cooling + electric heater
2-pipe changeover, 2-way valve
2-pipe changeover, 3-way valve
2-pipe changeover + electric heater, 2-way valve
2-pipe changeover + electric heater, 3-way valve
4-pipe
ˆ = Indicates customer order number (max 25 alphanumeric characters)
= Indicates job name (max 25 alphanumeric characters)
Š = Indicates personal customer tag (max 22 alphanumeric characters)
1
Zone control
2
Cascade control
Water Right hand +
Electric Right
connection
Water Left hand +
Electric Right
connection
Water Right hand +
Electric Left connection
Water Left hand +
Electric Left connection
2 STD
2 HC
4
Standard coil
2-pipe high capacity
coil
4-pipe standard coil
STD
SQ
Electric heater. If
nothing, no electric
heater
Electric heater with
electro-mechanical
relay
Electric heater with
solid-state relay
3 - 4 - 5
1 = Low speed
3 = Medium speed
5 = High speed
4 HC
4-pipe high capacity
coil
Indicates presence of EC motor
UNT-SVX10G-BAT1_Mise en page 1 7/26/2013 2:41 PM Page 6
