Page 3

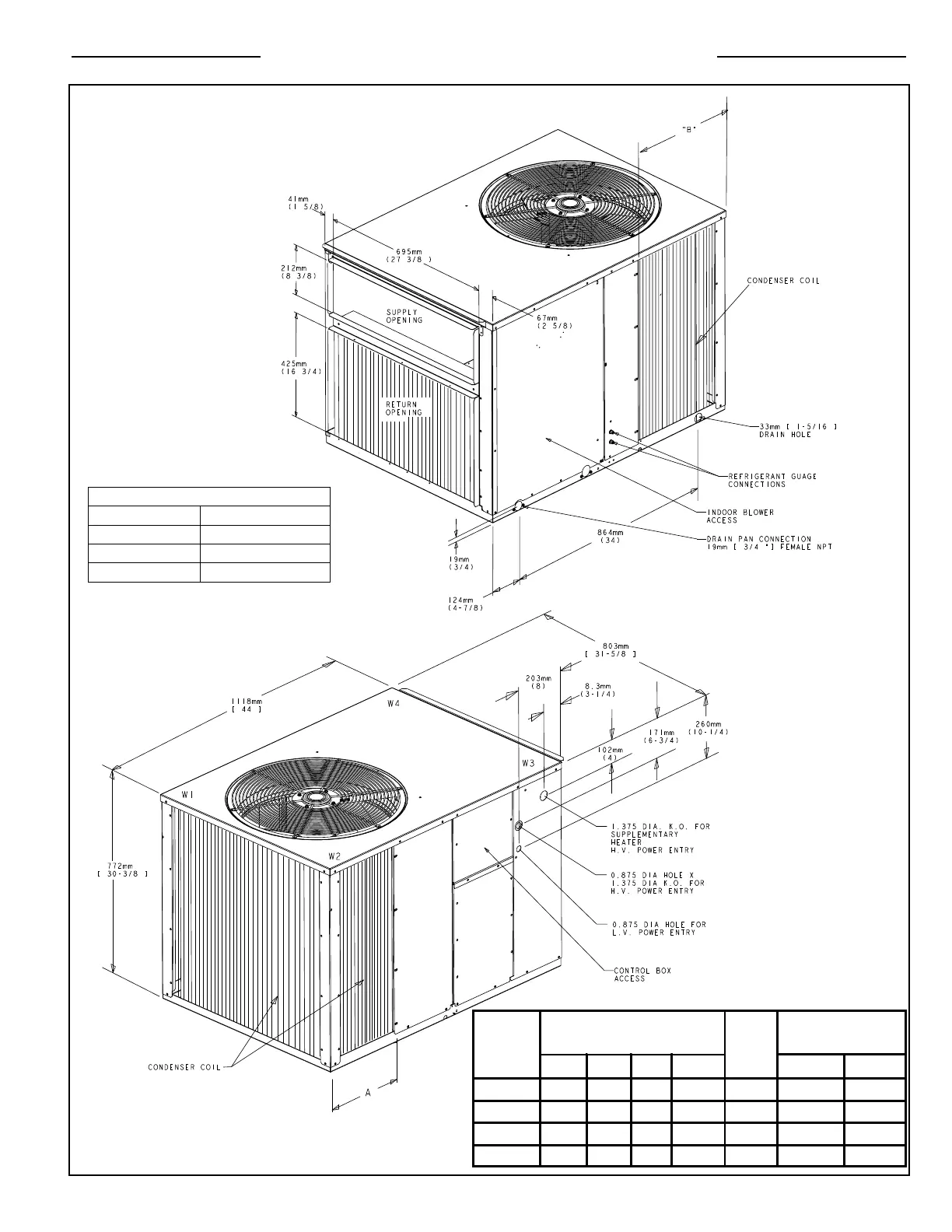

Unit Dimensions and Clearances
WCH024-042C Outline
Dwg. No. D673590 Rev 0.
1
INSTALLATION / SERVICE CLEARANCE
BACK 48.0"
LEFT SIDE 24.0"
RIGHT SIDE 36.0"
TOP 36.0"
MODEL
APPROX. CORNER WTS / LBS.
TOTAL
WEIGHT
LBS.
COIL DIMENSION (in)
W1 W2 W3 W4
AB
WCH024C 79 73 63 68 282 14 16
WCH030C 80 71 62 70 284 14 16
WCH036C 83 75 66 73 297 14 16
WCH042C 84 79 72 77 312 20 16
