DIMENSIONAL DATA
5
From Dwg. 21D664
MODEL A B C D
WCY024G
WCY030G
56-1/2 36 29-3/16 12-15/1
6
WCO36G
WCY042G
64 36 29-3/16 14-1/2
WCY048G
WCY060G
65-1/8 45 33-3/8 14-13/1
6
RECOMMENDED SERVICE CLEARANC
E
BACK * 6.0"
LEFT SIDE 30.0"
RIGHT SIDE 24.0"
FRONT SIDE 30.0"
* 18" WITH FRESH AIR ACCESSORY
* 30" WITH ECONOMIZER
CLEARANCE TO
COMBUSTIBLE MATERIA
L
BOTTOM 0.0"
BACK 1.0"
LEFT SIDE 6.0"
RIGHT SIDE 6.0"
FRONT SIDE 12.0"
TOP 36.0"

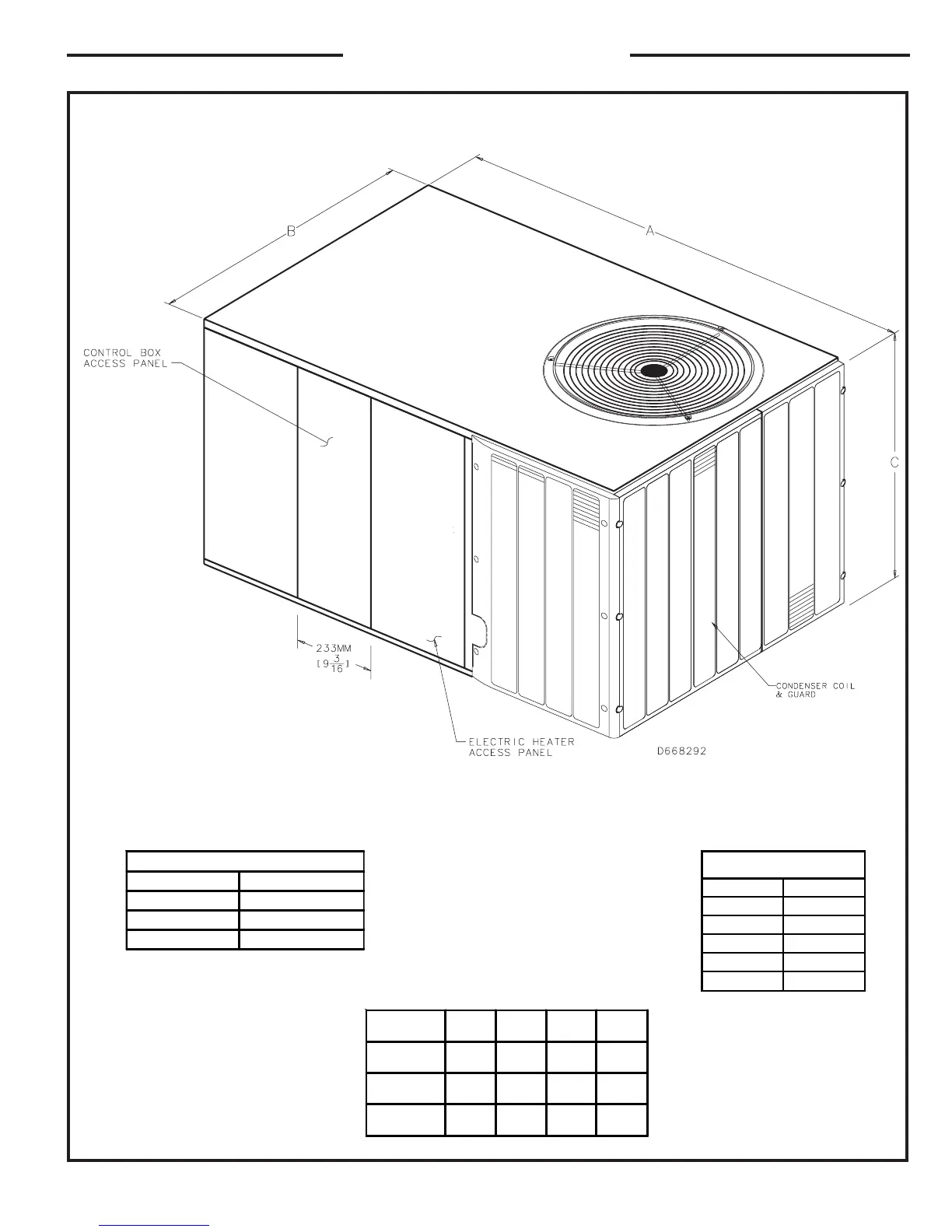

WCY024-060G OUTLINE - FRONT
