Unit Clearances
14 RT-SVX23F-EN

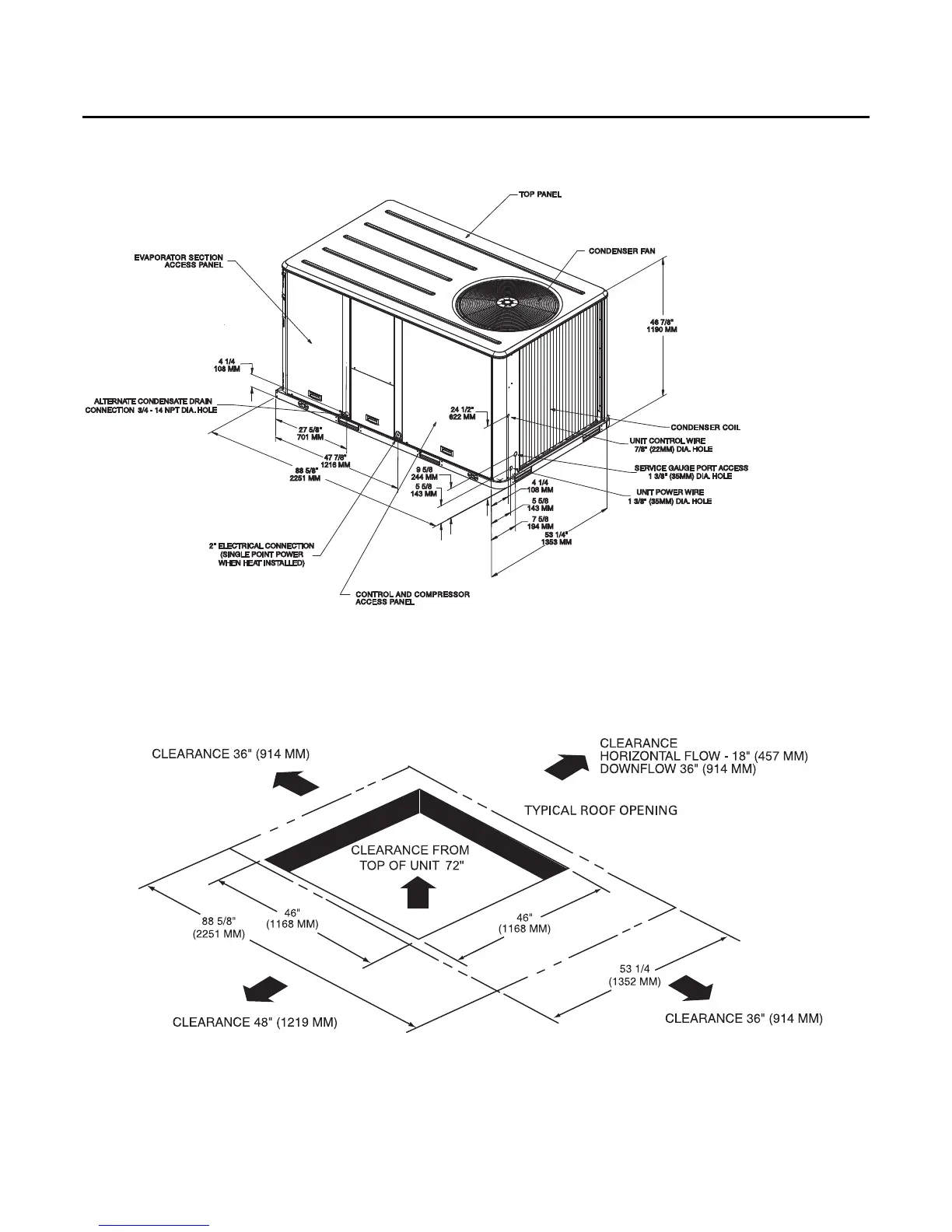

Figure 6. Heat pump - 7½ ton standard efficiency
Note: All dimensions are in inches/millimeters.
Figure 7. Heat pump - 5-7½ ton - unit clearance and roof opening
Note: All dimensions are in inches/millimeters.
