Trane WSC120E - Page 30

Installation
30 RT-SVX23F-EN

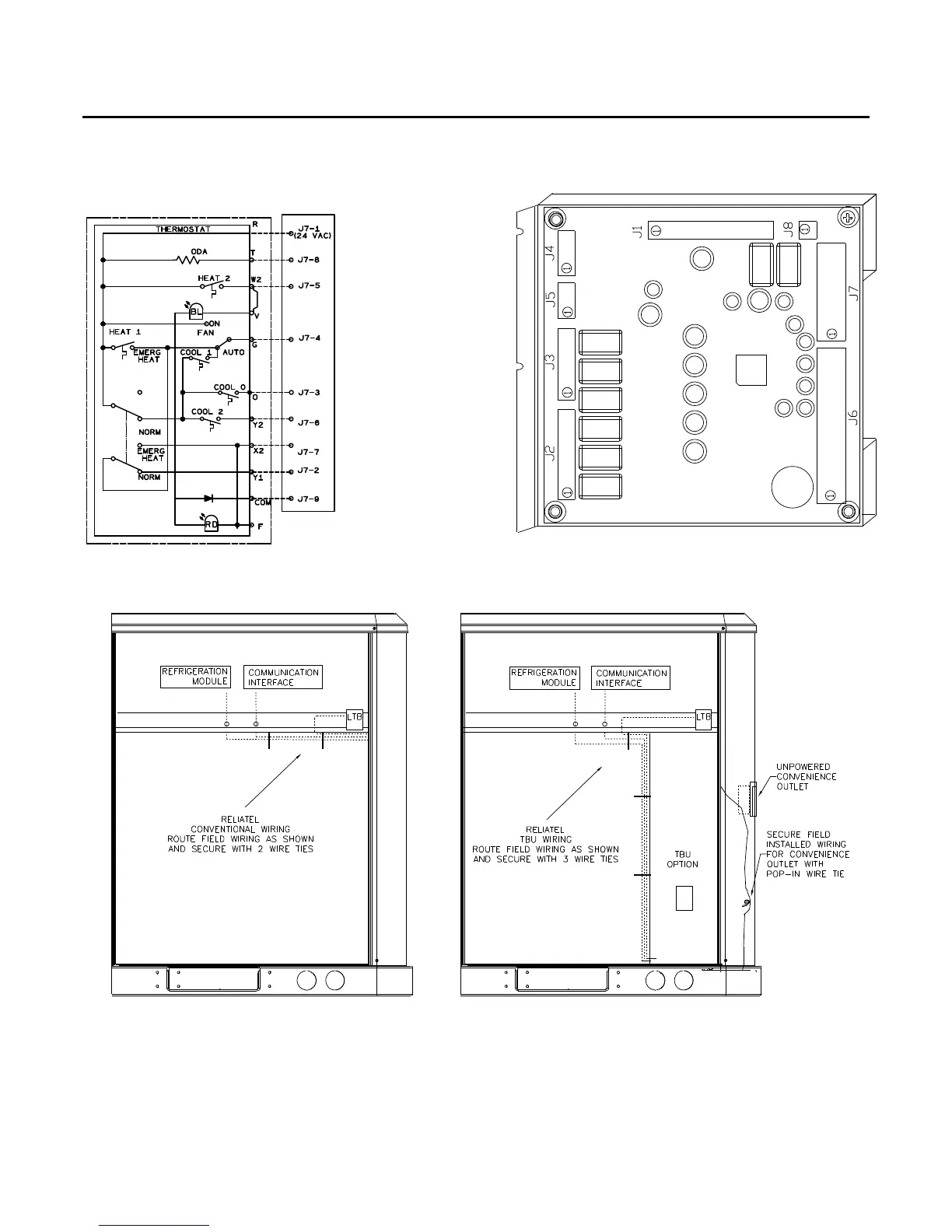

Figure 35. ReliaTel™ conventional thermostat field
wiring diagram
RTRM
Figure 36. ReliaTel™ refrigeration module
Figure 37. Customer control low voltage routing (all units except 10 ton)
