Appendix: Using the Tracer™ TU Service Tool with Wireless Networks
3. On the right side of the Startup Task Panel, select TU Adapter - Wireless and then click the
Connect button.TheWireless Network Utilities screen appears (
Figure 15) showing the group
and subnetwork numbers (which correspond to WCI address settings; see “WCI Addressing,”
p. 11 ), and signal strength for all existing wireless networks within radio range ofTracerTU. A
closed padlock icon indicates that aTracer SC login is required. An open padlock icon indicates
that noTracer SC login is required.

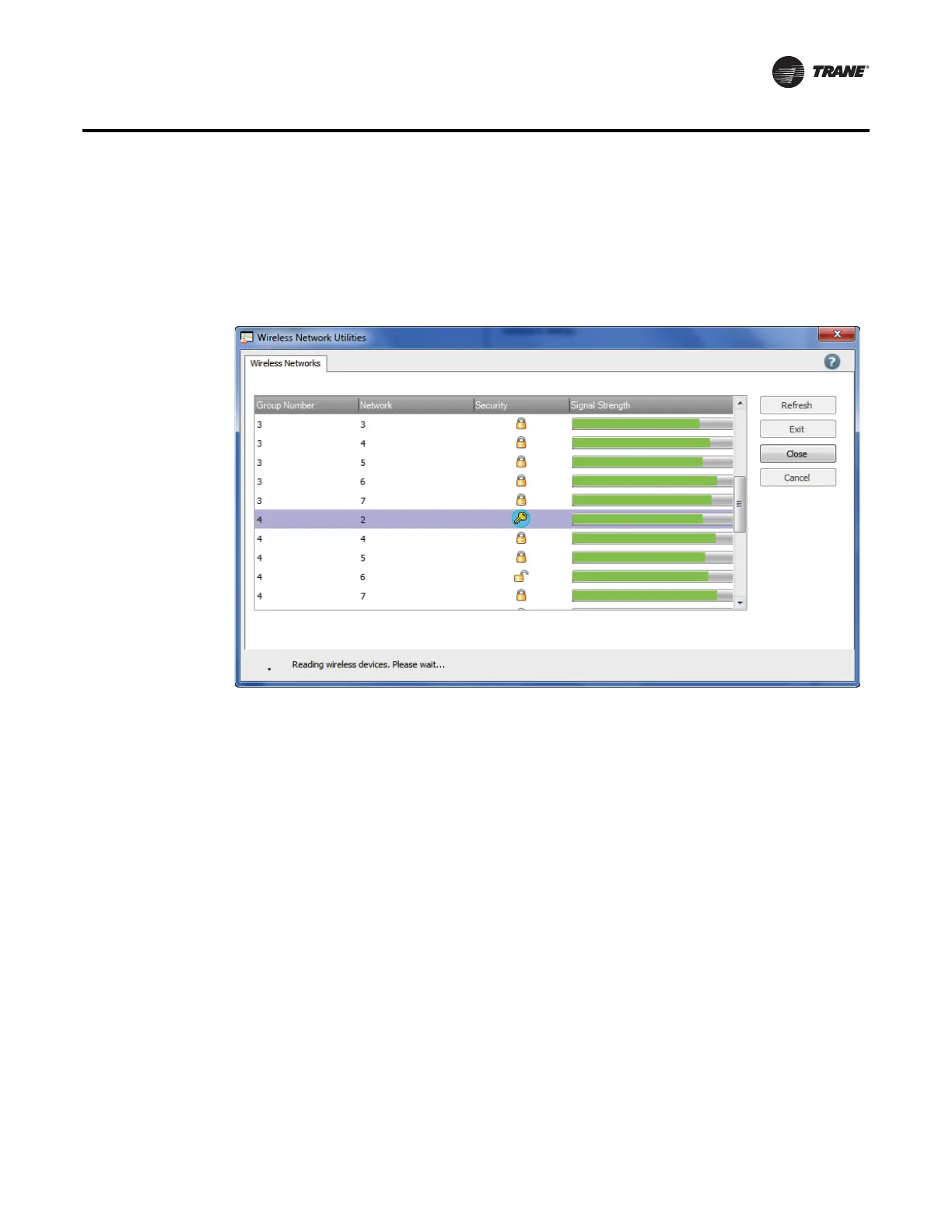

Figure 15. Wireless Network Utilities
4. Select the network you wantTracer TU to join. Click the Join button.
Note: TracerTU can join only one network at a time.
5. If aTracer SC is present on the network, a log-in prompt appears. Enter yourTracer SC user-ID
and password. After log-in, the Wireless Network Utilities screen appears as shown in
Figure 16.
Note: If noTracer SC is present on the network, the screen shown in Figure 16 appears without
the need to log in.
In the Security column, the lock icon is replaced by a key icon to identify the network thatTracer
TU has joined, and two additional tabs appear on the screen.
