Trane YHC092E - Page 20

Installation
20 RT-SVX21K-EN
Table 1. Maximum unit & corner weights (lbs) and center of gravity dimensions (in.) - gas/electric models
Unit
Model No.
Maximum Model Weights
(a)
Corner Weights
(b)
Center of Gravity (in.)
Tons Shipping Net A B C D Length Width
3 YSC036E/YHC036E 607 532 165 137 95 134 31 19
4 YSC048E 638 563 175 145 101 142 31 19
5 YSC060E 688 613 190 158 110 155 31 19
6 YSC072F 805 710 222 217 121 150 41 22
7½ YSC090F 862 767 243 221 155 149 45 21
7½ YSC092F 990 847 265 249 173 160 46 21
8½ YSC102F 1047 904 279 252 187 186 44 22
10 YSC120F 1156 1058 345 242 258 213 41 23
3 YHC037E 676 606 178 162 126 139 33 19
4 YHC048E/YHC047E 858 763 238 200 148 176 40 23
4 YHC048F 806 711 226 199 144 143 44 22
5 YHC060E/YHC067E 917 822 261 218 156 187 40 22
5 YHC060F 850 755 239 214 152 151 44 21
6 YHC072F 965 822 250 245 174 153 47 21
7½ YHC092E 1552 1335 373 368 295 299 50 28
7½ YHC092F 1124 1026 340 233 249 204/ 50 28
8½ YHC102E 1579 1362 385 374 297 306 49 28
10 YHC120E 1589 1372 384 378 302 308 49 28
(a) Weights are approximate.
(b)Corner weights are given for information only.

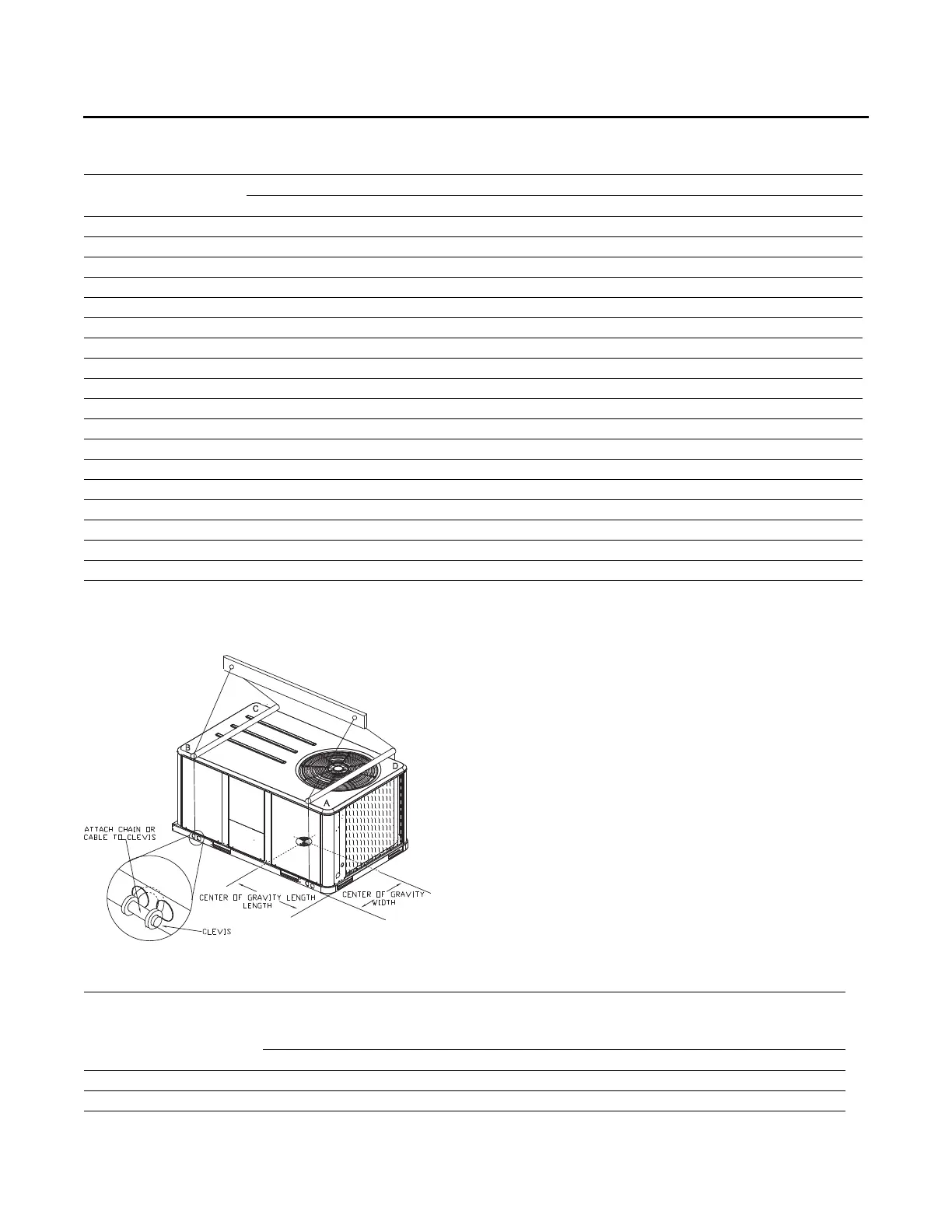

Figure 15. Rigging and center of gravity
Table 2. Factory installed options (fiops)/accessory net weights (lbs)
(a),(b)
YSC036E-060E
YHC036E,YHC037E
YHC047E-067E
YHC048F-060F
YSC072F-102F
YHC072F
YHC092F,
YSC120F YHC092E-120E
Net Weight Net Weight Net Weight Net Weight Net Weight
Accessory 3-5 T 4-5 T 6-8½ T 7½, 10 T 7½-10 T
Barometric Relief 7 10 10 10 10
Belt Drive Option (3 phase only) 31 31 — — —
continued on next page
