Trane YHC092E - Page 37

To Next Page

To Previous Page

Installation

RT-SVX21K-EN 37

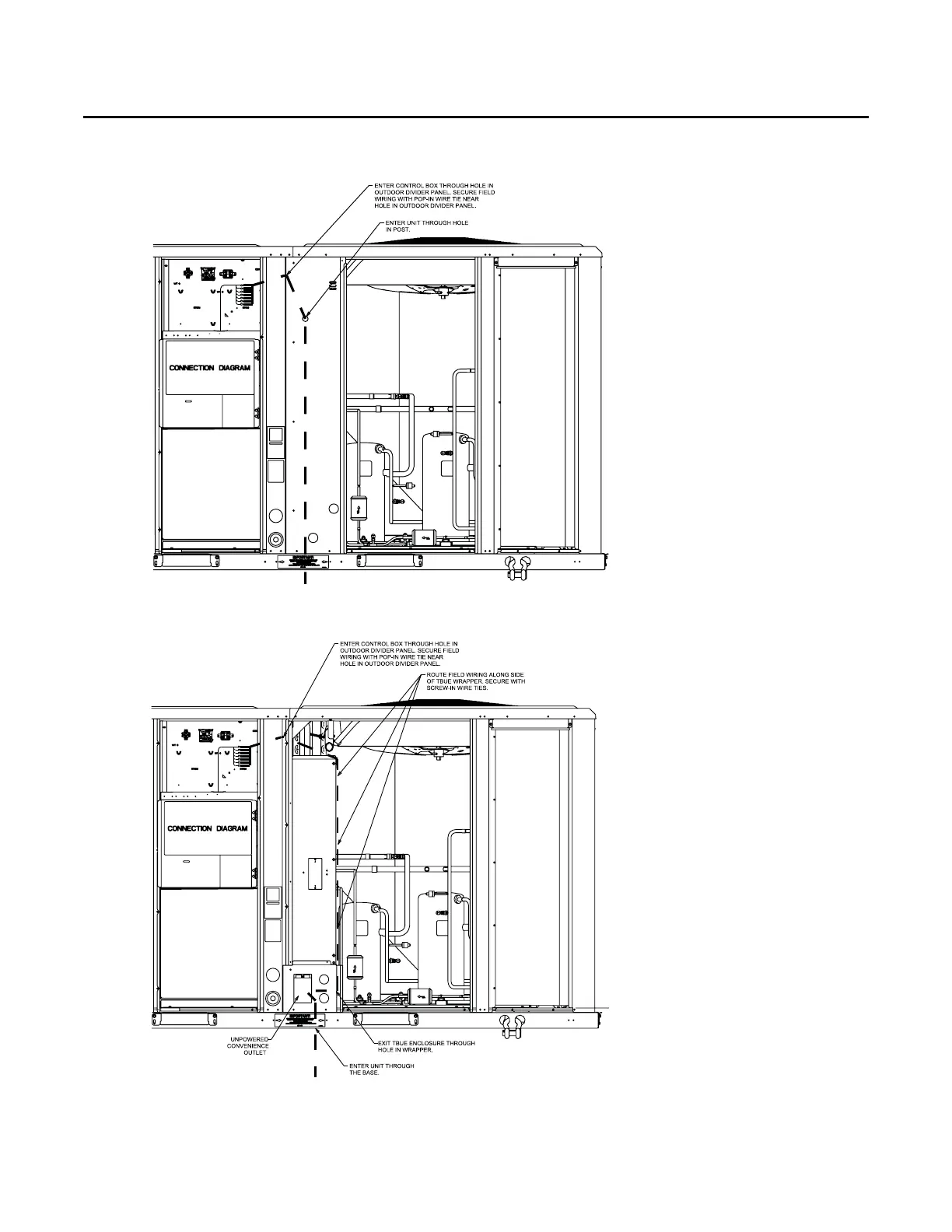

Figure 49. Electromechanical (without TBUE) control customer wire routing (7½ (dehumidification) - 10 ton high

efficiency)

Figure 50. Electromechanical (with TBUE) control customer wire routing (7½ (dehumidification) - 10 ton high

efficiency)
