Trane YSC036E - Unit Dimensions; Figure 2. 3-5 ton standard efficiency...

Unit Dimensions
16 RT-SVX21P-EN

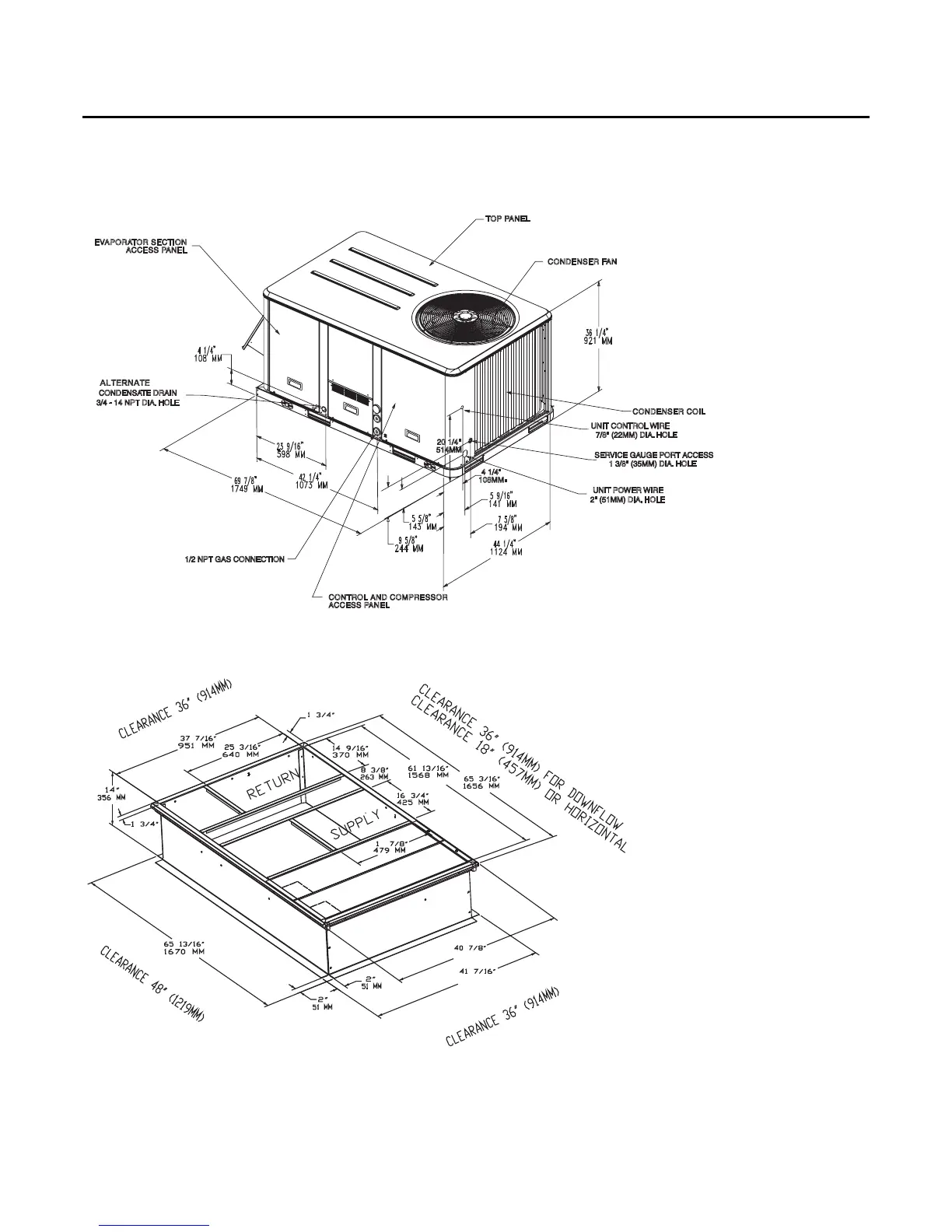

Figure 2. 3-5 ton standard efficiency, 3 ton high efficiency
Notes:
1. All dimensions are in inches/millimeters.
2. ½ NPT Gas Connection
Figure 3. 3-5 ton standard efficiency, 3 ton high efficiency - roof curb
Note: All dimensions are in inches/millimeters.
