Trane YSC036E - Installation; Figure 45. Electromechanical control customer low voltage routing...; Figure 46. Relia Tel control customer low voltage routing...

72 pages

To Next Page

To Previous Page

Installation

38 RT-SVX21P-EN

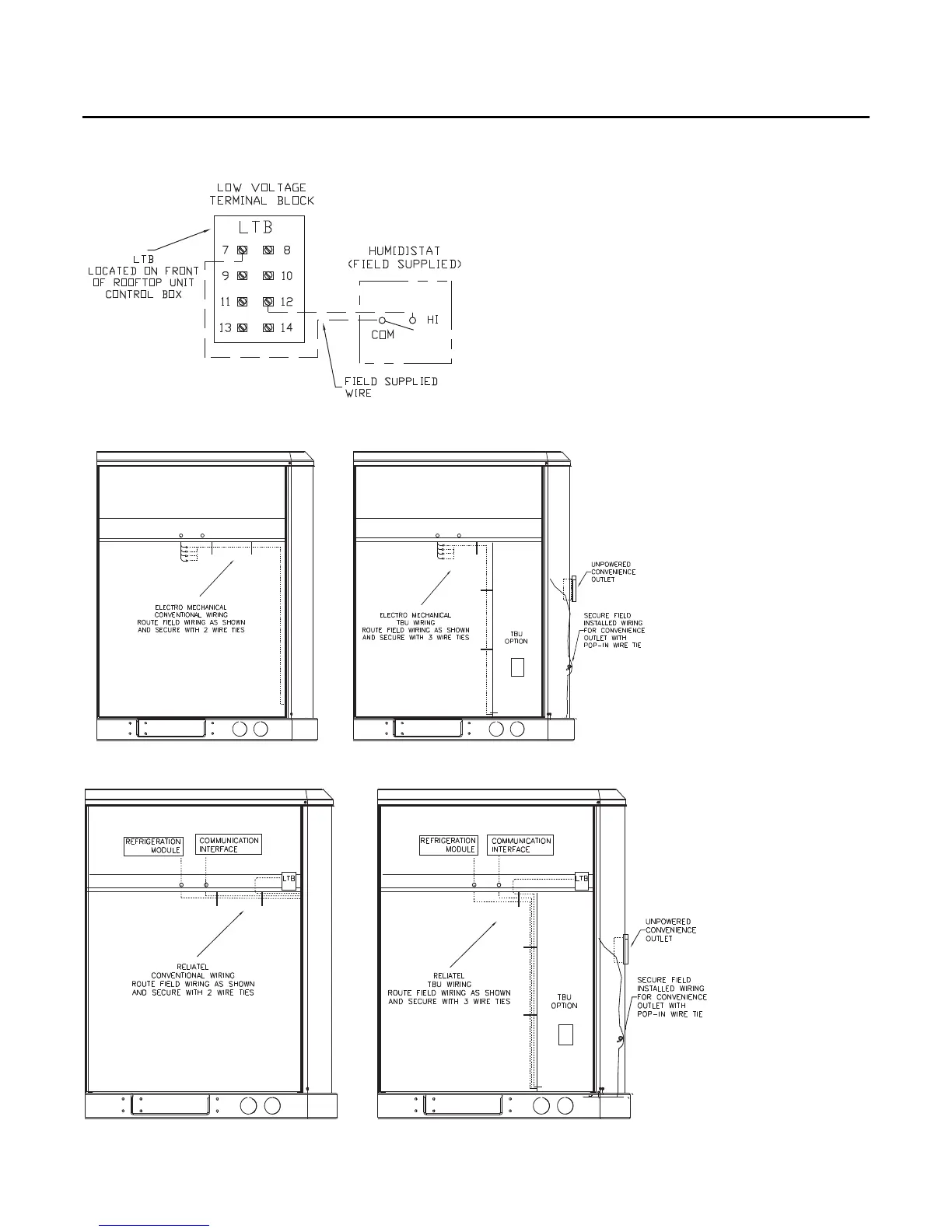

Figure 44. ReliaTel™ humidistat (dehumidification

option)

Figure 45. Electromechanical control customer low voltage routing (all units except 10 ton high efficiency)

Figure 46. ReliaTel™ control customer low voltage routing (all units except 10 ton high efficiency)
