Installation
RT-SVX21N-EN 37

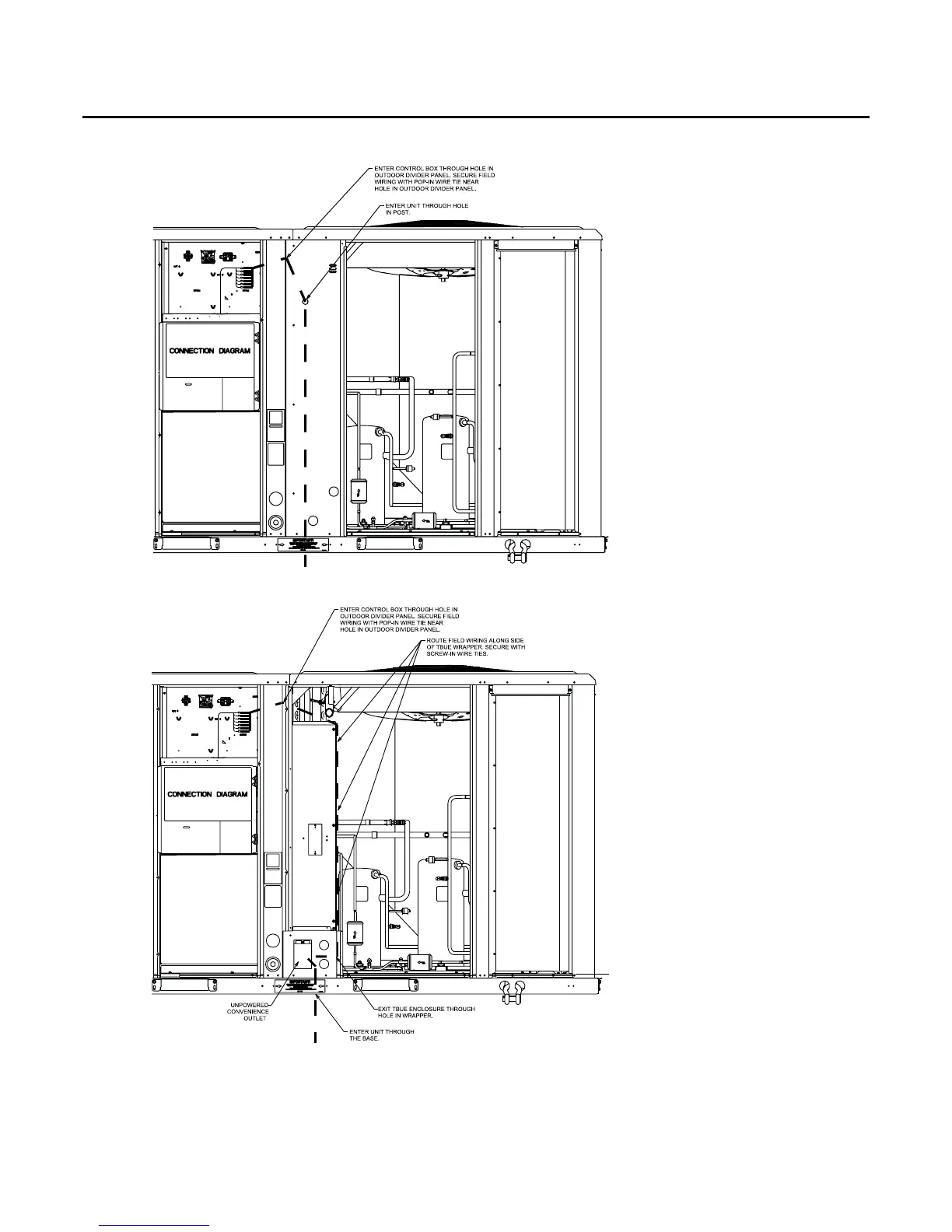

Figure 49. Electromechanical (without TBUE) control customer wire routing (10 ton high efficiency)
Figure 50. Electromechanical (with TBUE) control customer wire routing (10 ton high efficiency)
