Unit Dimensions
14 RT-SVX38B-EN

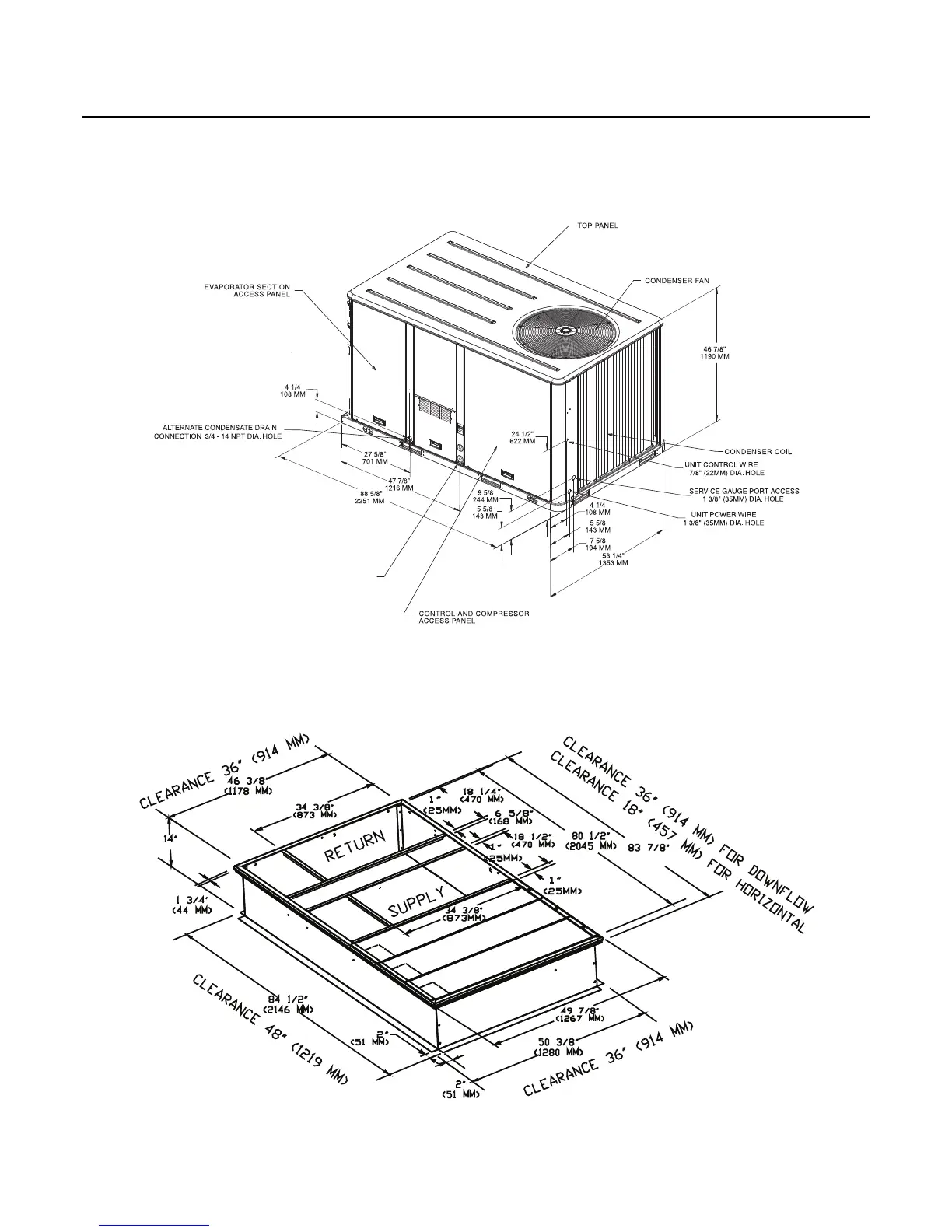

Figure 8. 8½ - 10 tons standard efficiency
Note: All dimensions are in inches/millimeters.
1/2 NPT GAS CONNECTION
Figure 9. 8½ - 10 tons standard efficiency - roof curb
Note: All dimensions are in inches/millimeters.
(2130 MM)
(356 MM)
