Trane YSC072H - Lifting and Handling Safety

WARNING
Heavy Objects!
Failure to follow instructions below or properly lift unit
could result in unit dropping and possibly crushing
operator/technician which could result in death or
serious injury, and equipment or property-only damage.
Ensure that all the lifting equipment used is properly
rated for the weight of the unit being lifted. Each of the
cables (chains or slings), hooks, and shackles used to
lift the unit must be capable of supporting the entire
weight of the unit. Lifting cables (chains or slings) may
not be of the same length. Adjust as necessary for even
unit lift.
WARNING
Improper Unit Lift!
Failure to properly lift unit could result in unit dropping
and possibly crushing operator/technician which could
result in death or serious injury, and equipment or
property-only damage. Test lift unit approximately 24
inches to verify proper center of gravity lift point. To
avoid dropping of unit, reposition lifting point if unit is
not level.

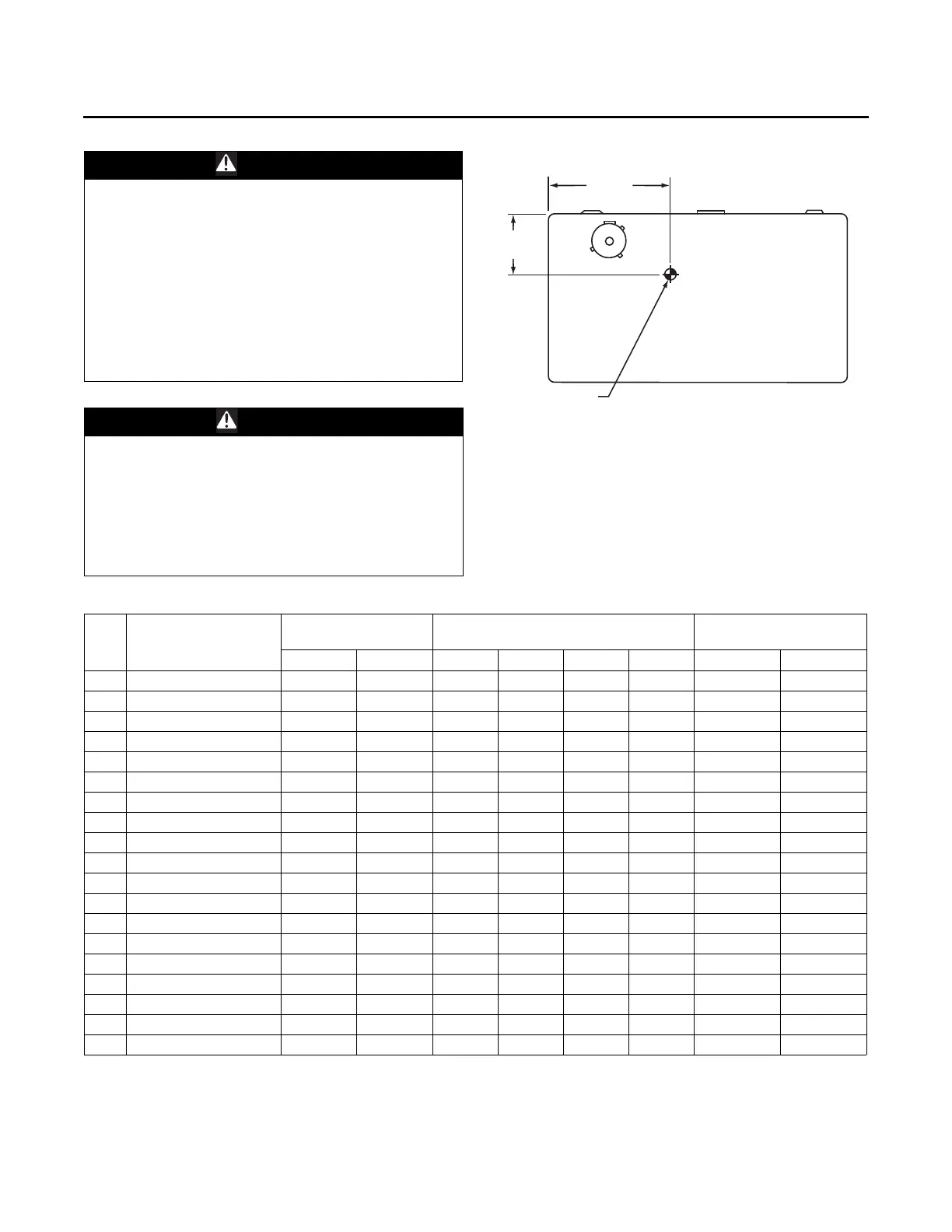

Figure 2. Corner weights
Center of Gravity
Length
Center of
Gravity
Width
Center of Gravity
A
B
C
D
Table 3. Maximum unit and corner weights (lbs) and center of gravity dimensions (in.) - gas/electric models
Unit
Maximum Model
Weights
(a)
Corner Weights
(b)
Center of Gravity (in.)
Tons Model No. Shipping Net A B C D Length Width
3 YSC036G 577 472 193 178 45 55 33 9
4 YSC048G 598 492 205 183 46 58 33 9
5 YSC060G 627 522 214 193 52 63 33 10
6 YSC072H 805 710 222 217 121 150 41 22
7.5 YSC090H 925 832 253 225 169 185 42 23
7.5 YSC092H 990 847 265 249 173 160 46 21
8.5 YSC102H 1028 927 300 242 203 182 47 22
10 YSC120H 1156 1058 345 242 258 213 41 23
3 YHC036E 607 532 165 137 95 134 31 19
4 YHC048E 858 763 238 200 148 176 40 23
4 YHC048F 806 711 226 199 144 143 44 22
5 YHC060E 917 822 261 218 156
187 40 22
5 YHC060F 850 755 239 214 152 151 44 21
6 YHC072E 1025 927 296 198 205 228 41 24
6 YHC072F 965 822 250 245 174 153 47 21
6 YHC074F 1114 1016 334 231 248 202 41 23
7.5 YHC092F 1124 1026 340 233 249 204 41 23
8.5 YHC102F 1133 1035 341 236 253 205 49 23
10 YHC120F 1453 1259 356 371 289 242 54 27
Dimensions and Weights
RT-SVX21AC-EN 19
(a) Weights are approximate.
(b) Corner weights are given for information only.
