Dimensions and Weights
26 RT-SVX21AC-EN

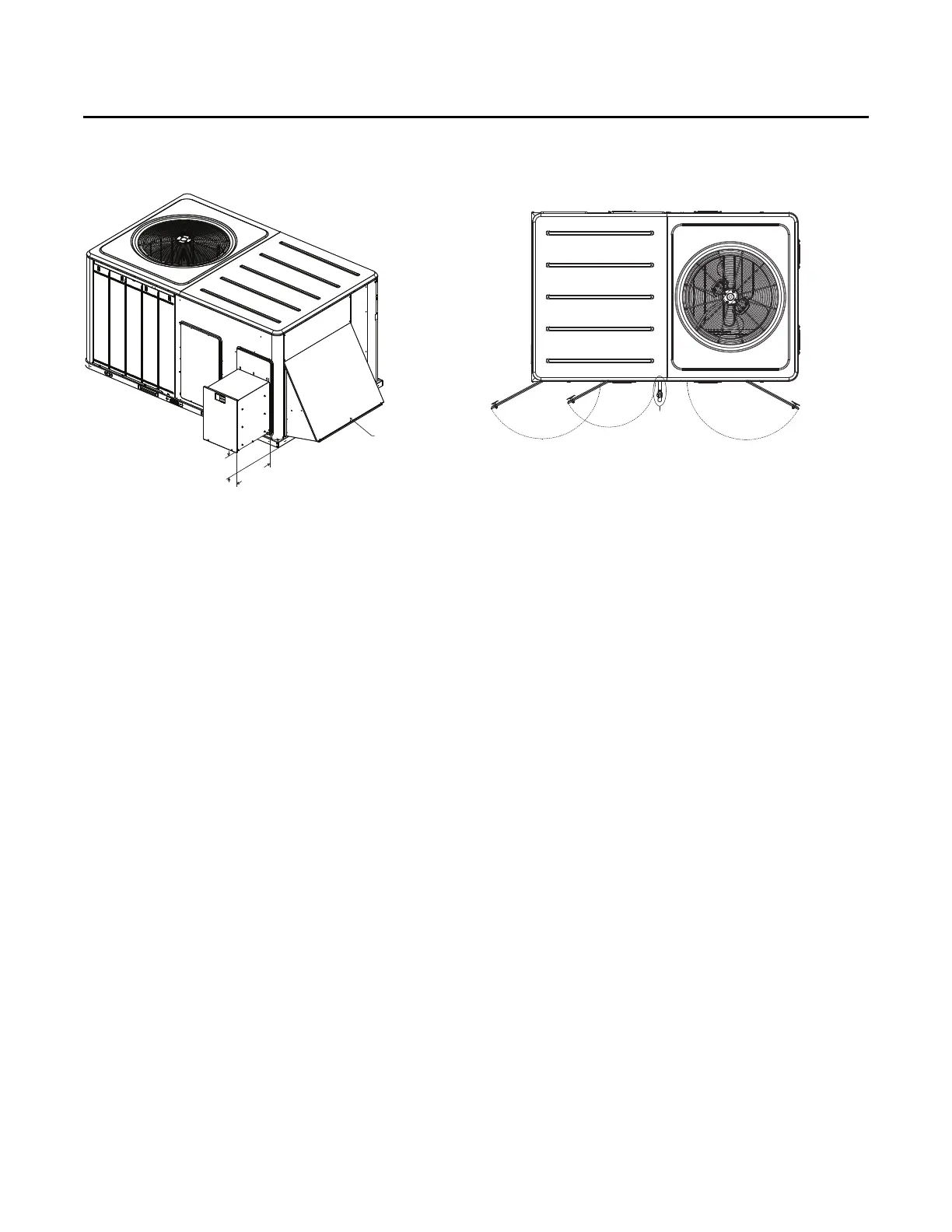

Figure 30. Cooling and gas/electric —10 tons high
efficiency— power exhaust
(a)
(a) All dimensions are in inches/millimeters.
ECONOMIZER HOOD
21 5/8”
549 MM
5 5/8”
143 MM
Figure 31. Cooling and gas/electric —10 tons high
efficiency— swing diameter for hinged door(s)
option
(a)
(a) All dimensions are in inches/millimeters.
Applicable to
Y_C models only
22 1/2”
572 MM
17 13/16”
451 MM
22”
559 MM
