Dimensions and Weights
22 RT-SVX21AC-EN

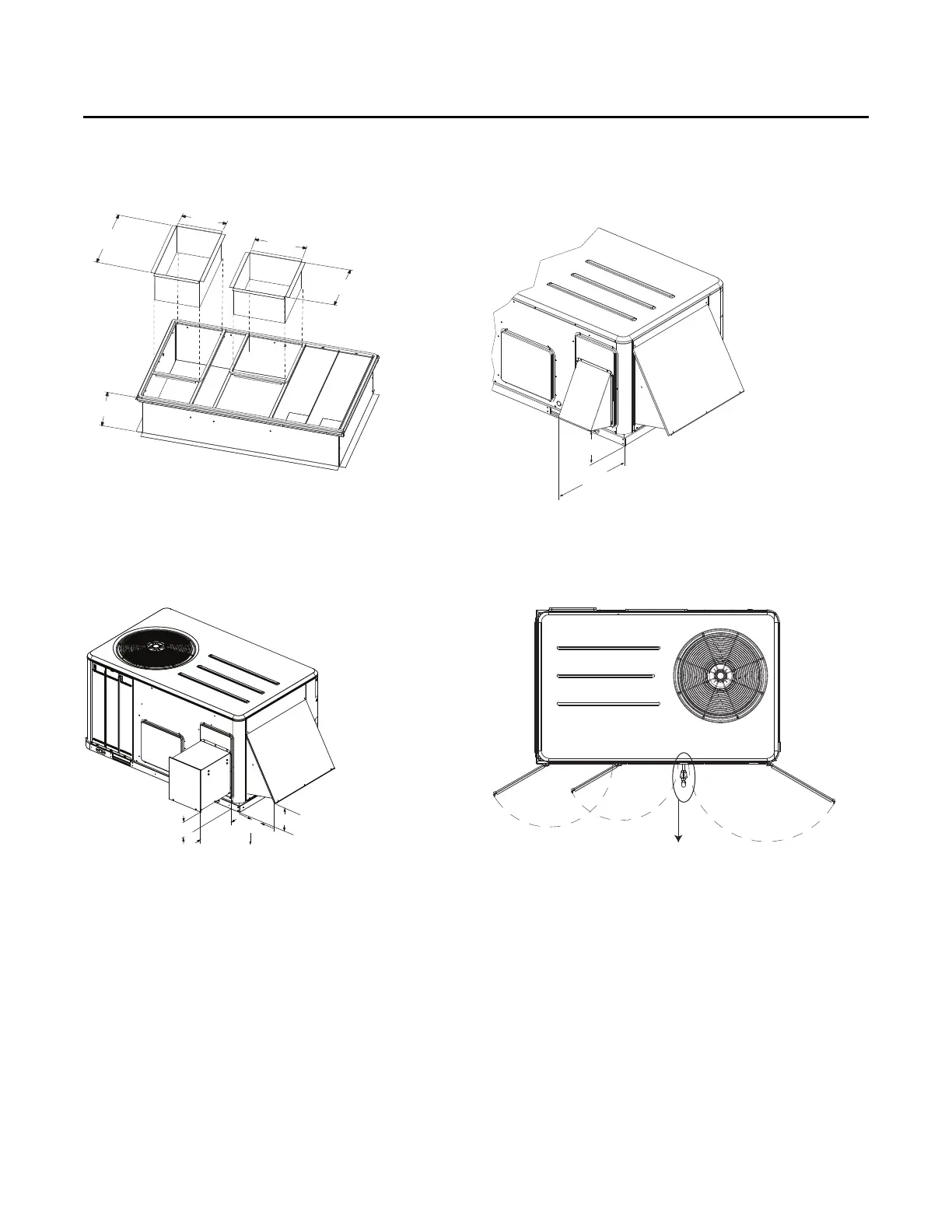

Figure 10. Cooling and gas/electric —3 to 5 standard
efficiency, 3 tons high efficiency — downflow
duct connections, field fabricated
(a)
(a) All dimensions are in inches/millimeters.
Figure 11. Cooling and gas/electric —3 to 5 tons
standard efficiency, 3 tons high efficiency—
economizer, manual or motorized fresh air
damper, power exhaust
(a)
(a) All dimensions are in inches/millimeters.
ALL FLANGES 1 1/4” (32 MM)
24 3/8”
(619 MM)
14 1/16”
(357 MM)
16 3/16”
(411 MM)
17 1/16”
(433 MM)
14”
(356 MM)
RETURN
SUPPLY
Dimensions extends to 16 1/2"/419 MM
when powered exhaust is coupled
with low leak economizer
6 3/16”
157 MM
16 1/2”
419 MM
16 1/4”
159 MM
12 1/2”
318 MM
Figure 12. Cooling and gas/electric —3 to 5 tons
standard efficiency, 3 tons high efficiency—
economizer and barometric relief damper
hood
(a)
(a) All dimensions are in inches/millimeters.
Figure 13. Cooling and gas/electric —3 to 5 tons
standard efficiency, 3 tons high efficiency—
swing diameter for hinged door(s) option
6 15/16”
176 MM
9 1/8”
232 MM
17 7/8”
454 MM
16”
406 MM
22 1/4”
565 MM
Applicable to
Y_C models only
