Installation:
When installing the cable into the Outer Chassis, make the rear connection first. Then create a loop in the cable so
that it can be easily slipped over the clip (A) closest to the connector, then repeat for remaining clips. Release the
sliding connector board’s latches by lifting up on the two levers and push the board towards the rear to allow enough
slack to mate the front connection. Now mate the front connection to the sliding board and pull the sliding board
forward until it is firmly latched.

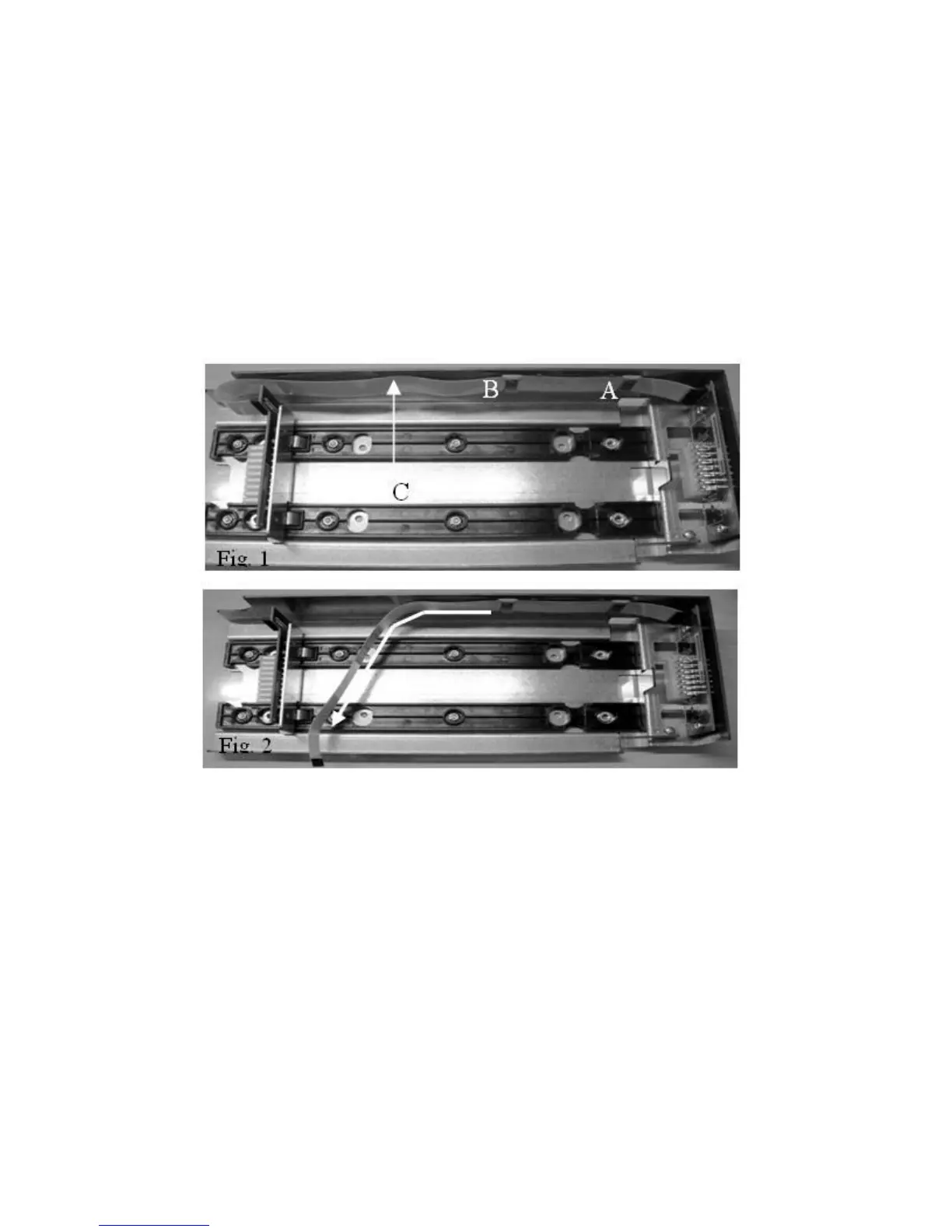

Warning: If reinstalling a used cable, care must be taken to insure that the cable’s bow protrudes in
the direction as shown in Figure 2 and when installed, it should look like (C).
Flex Cable Item Number: 98-06499L
