CHAPTER 7: OPERATION
7 .1 DISPLAY
The Model TI-500-EU indicator utilizes a 6-digit LCD (Liquid Crystal Display) to display the weight
and system information. Table 7-1 summarizes the display annunciators.
7.1.1 LIQUID CRYSTAL DISPLAY (LCD)

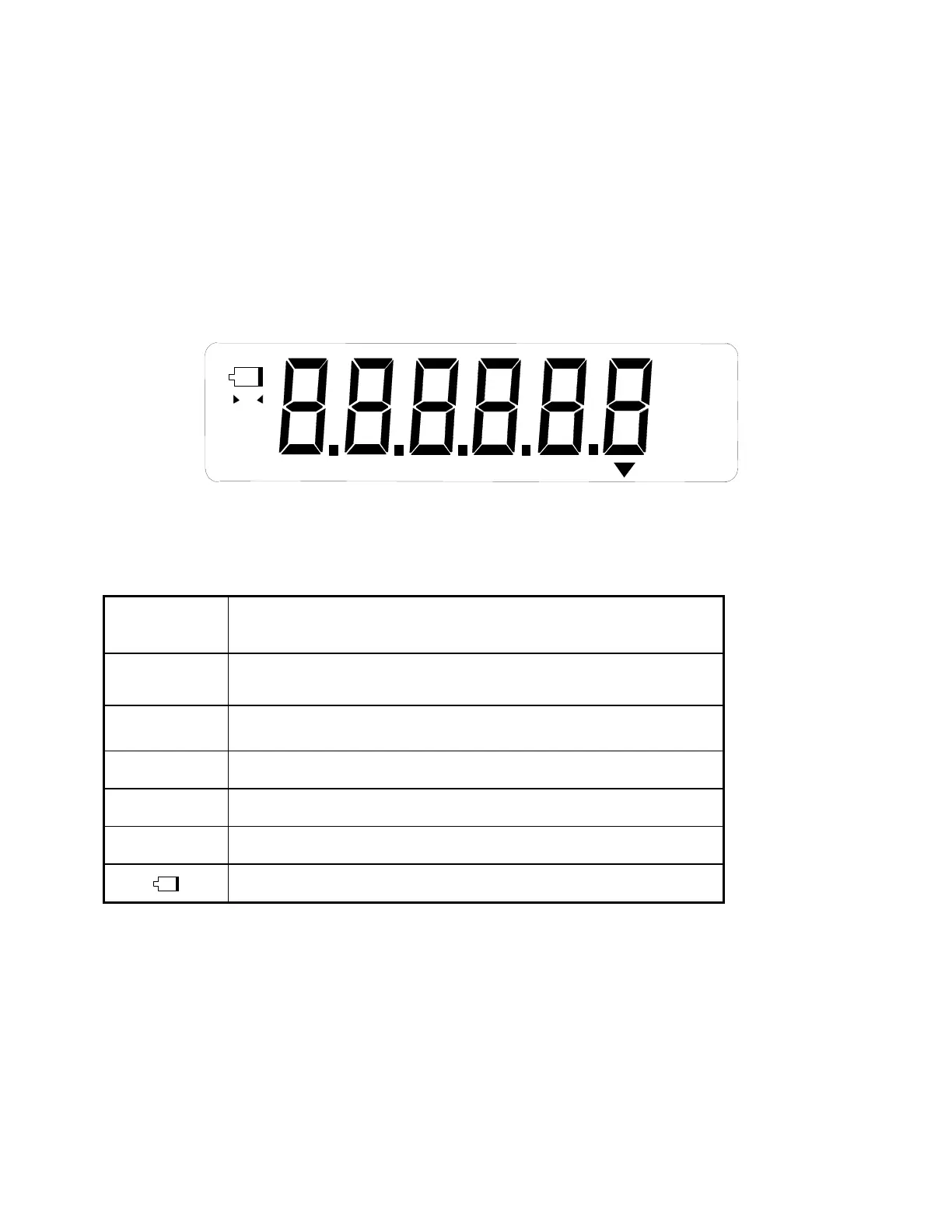

Figure 7-1 shows the display detail of the TI-500-EU LCD.
oz
lb
pcs
%
kg
G N
O
P T
NET
FIGURE 7-1: TI-500-EU LCD Detail
LCD Annun-
ciator
MEANING
Î0Í
Better known as the “Center of Zero” annunciator, this light is active when-
ever the displayed weight is within ± 0.25 divisions of true zero.
NET
Indicates that the indicator is displaying net weight.
G
Indicates that the indicator is displaying gross weight.
T
Indicates that a tare weight has been established in the system.
lb, kg
Indicates the unit of the displayed weight.
Indicates a low battery condition. Re-charge the battery.
TABLE 7-1: TI-500-EU Annunciator Definitions
Page 7-1
