CHAPTER 1: INTRODUCTION TO THE TI-500-EU DIGITAL INDICATOR
The TI-500-EU Digital Indicator is a general purpose, industrial grade weight indicator. The prod-
uct features a NEMA 4X rated stainless steel enclosure, internal 6V battery and a 0.75” tall LCD
(Liquid Crystal Display) screen.
The internal 6V rechargeable battery is capable of driving four 350Ω load cells. The unit can
readout up to 50,000 display divisions on a liquid crystal display (LCD). All setup parameters may
be entered via the front panel keys, including calibration.
An external power supply is included at no additional charge. The external power supply func-
tions as a charger for the rechargeable battery. The power supply may also be used as the main
power supply.
If your Model TI-500-EU Digital Indicator is part of a complete floor scale or has been installed for
you, you may skip to Chapter 7 for operating instructions. Prior to using the indicator, please read
this chapter carefully and completely. Store the manual in a safe and convenient place so it will
be available if you have questions concerning the operation of the scale.
If you are an installer, the indicator's installation and wiring instructions are found in Chapter 2.
The indicator contains two main setup menus: The Setup (“F”) menu, which configures the indi-
cator to your weigh platform and the User (“A”) menu, which configures the serial communication
port and enables some user options. Chapter 3 gives an overview and explains how to use the
five front panel keys to maneuver and save settings in both menus. Chapters 4 and 5 explain the
Setup and User Menu options, respectively. Chapter 6 covers system calibration. Prior to install-
ing the indicator, please read this manual carefully and completely. Store the manual in a safe
and convenient place so it will be available if you have questions concerning the setup and op-
eration of the scale.
lb
kg
MODEL
TI-500
G
oz
lb
%
O
kg
pcs
T
⌧
Min=
e=
B/G
Net
T
NET

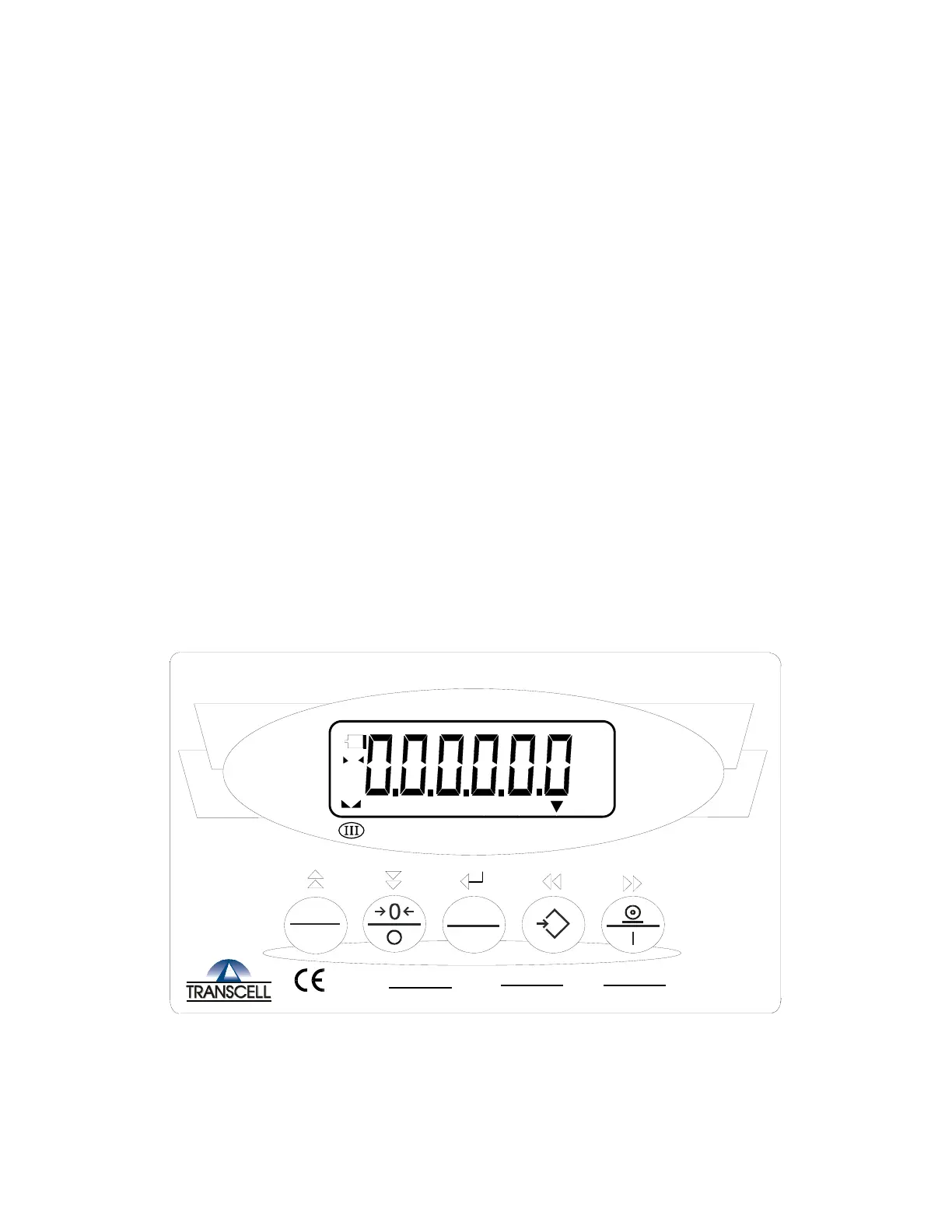

FIGURE 1-1: TI-500-EU Front Panel
Page 1-1
