OVERVIEW
Scope of TI-700K

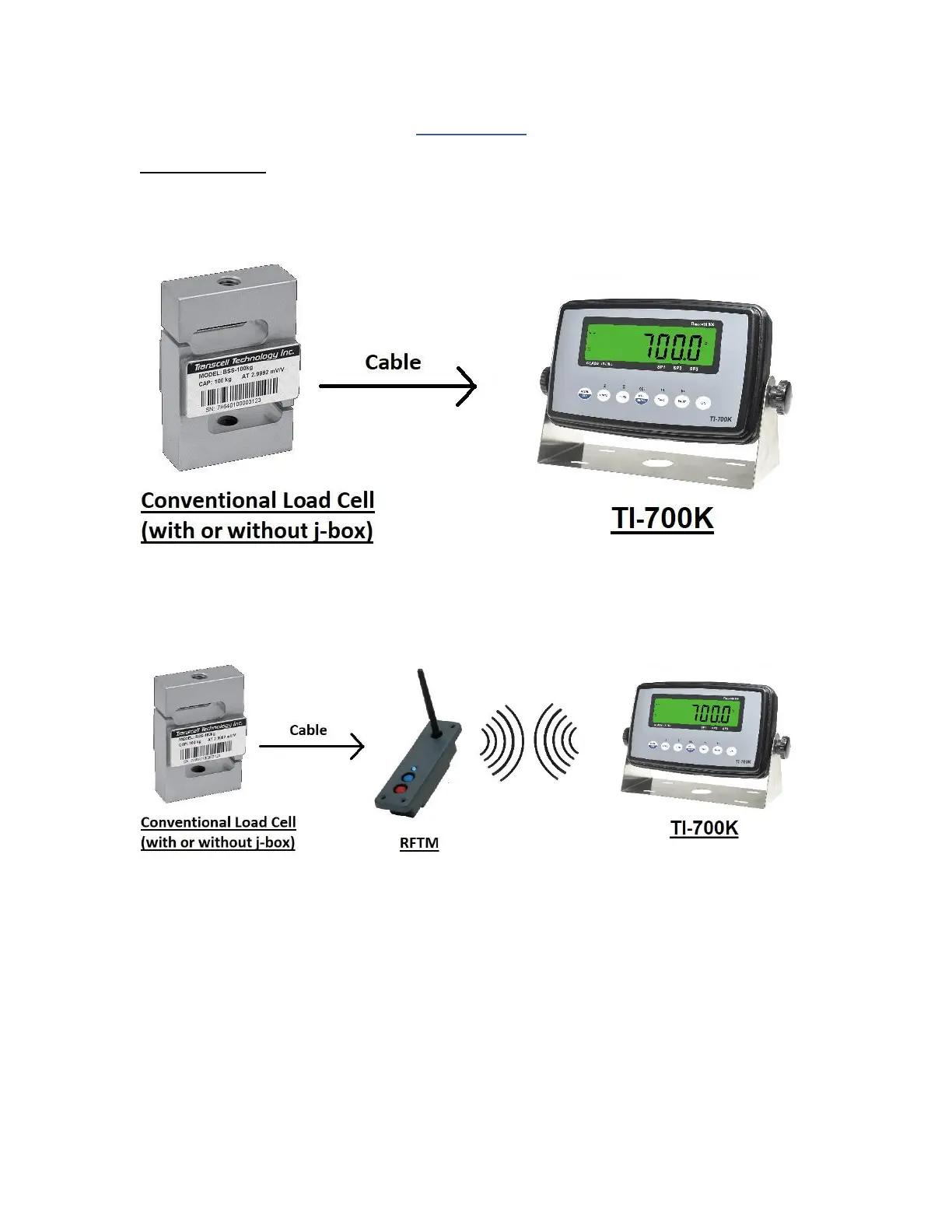

Out of the box, the TI-700K indicator operates as a basic, cabled digital weight indicator. The
load cell(s) and/or j-box is connected to the indicator’s internal A/D convertor. This configuration
is depicted in the following diagram:
When sold with an external TI-500 RFTM (Radio Frequency Transceiver Module) and an op-
tional wireless radio, your TI-700K indicator is transformed from “wired” to cable-free. This con-
figuration is depicted in the following diagram:
Our products currently use reliable and popular Bluetooth® wireless technology.
This manual covers operation and troubleshooting. For installation, configuration and calibration
of the RF indicators please refer to the separate installer’s guide.
