Transition E-100BTX-FX-06 - Installation and Configuration; 4-Position DIP Switch Settings

TransitionNetworksE‐100BTX‐FX‐06UserGuide
33791Rev.A https://www.transition.com Page4of13
Installation
Caution:Wearagroundingdeviceandobserveelectrostaticdischargeprecautionswhensettingthe
4‐positionDIPswitchandjumpers.Failuretoobservethiscautioncouldresultinfailureofthemediaconverter.
4‐PositionDIPSwitch

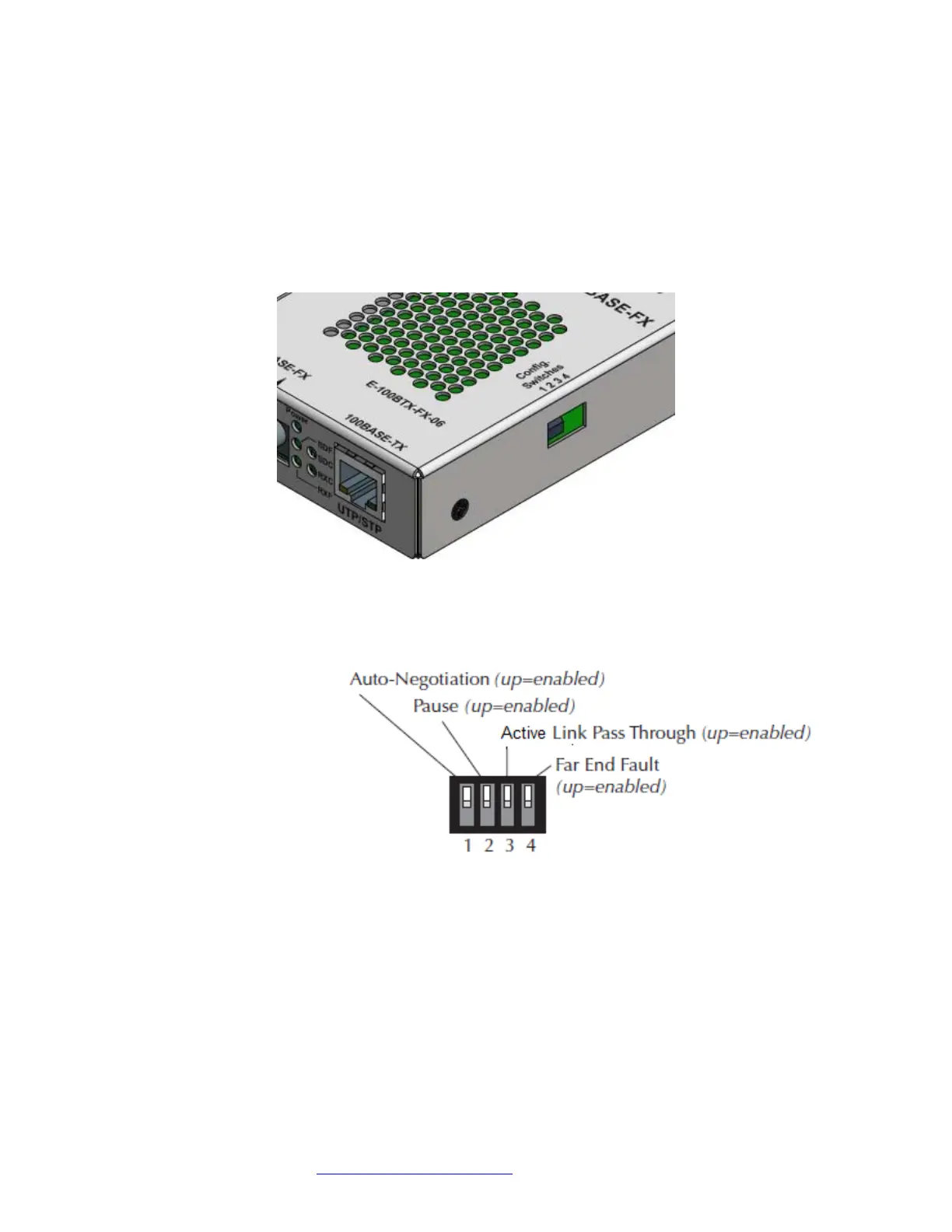

The4‐positionDIPswitchislocatedonthesideofthemediaconverter.Useasmallflat‐bladescrewdriverora
similartooltosettherecessedswitches.
1.Auto‐Negotiation
Up EnablesAuto‐Negotiationforthecopperconnection.
DownDisablesAuto‐Negotiationforthecopperconnection.
2.PauseControl
Up Enabled
DownDisabled
3.ActiveLinkPass‐Through
Up Enabled
DownDisabled
4.Far‐EndFault
Up Enabled
DownDisabled
Note:ThemediaconvertersareshippedfromthefactorywithallDIPswitchesintheUp(enabled)position.
