TransitionNetworksE‐100BTX‐FX‐06UserGuide
33791Rev.A https://www.transition.com Page8of13

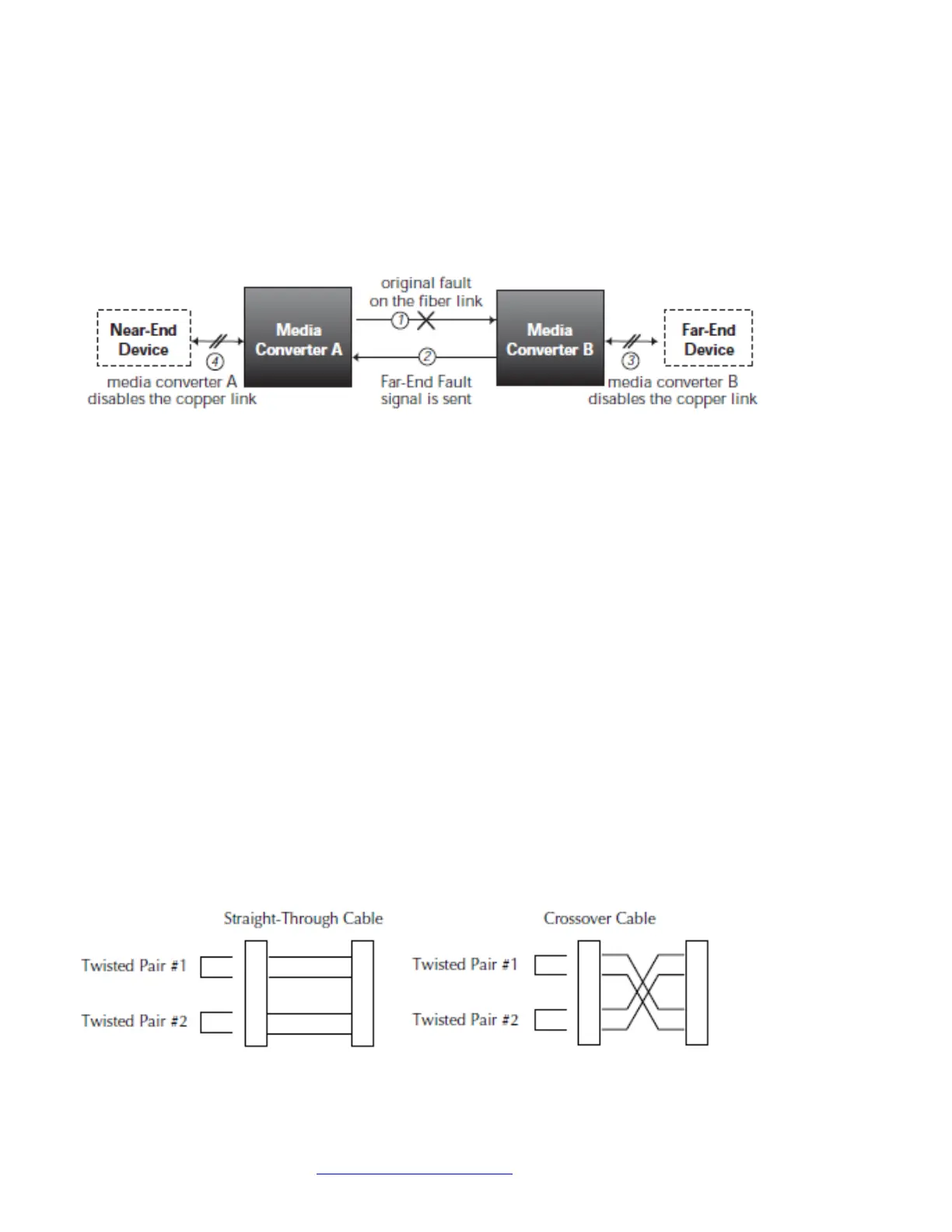

Far‐EndFault
Far‐EndFaultisavaluablefeatureusedinamediaconverterwhenitlosesReceiveFiberlink,butstillhasavalid
FiberTransmitlink.
Whenafaultoccursonanincomingfiberlink(1),themediaconvertertransmitsa Far‐EndFaultsignalonthe
outgoingfiberlink(2).
Inaddition,theFar‐EndFaultsignalalsoactivatestheLinkPass‐Through,whichinturn
disablesthelinkonthecopperportionofthenetwork(3)and(4).

Specifications
ThefiberopticcablephysicalcharacteristicsmustmeetorexceedIEEE802.3aespecification.
CableSpecifications
ThephysicalcharacteristicsmustmeetorexceedIEEE802.3™specifications.
Copper Cable
Category 5: (minimum requirement)
Gauge: 24 to 22 AWG
Attenuation: 22.0 db /100m @ 100 MHz
Maximum Cable Distance: 100 meters
 Straight-through or crossover cable may be used.
 Shielded twisted-pair (STP) or unshielded twisted-pair (UTP) may be used
 Pins 1&2 and 3&6 are the two active pairs in an Ethernet network
 RJ-45 Pin-out: Pin 1 = TD+, Pin 2 = TD-, Pin 3 = RD+, Pin 6 = RD-
 Use only dedicated wire pairs for the active pins: (e.g., blue/white & white/blue, orange/white & white/orange,
etc.)
 Do not use flat or silver satin wire.

