Genesis TP-501/TP-502 Q&A
Confidential TO: FROMM HOLDING AG
Page 8 of 8 8/19/2008
X. Tension with a result of bad quality:

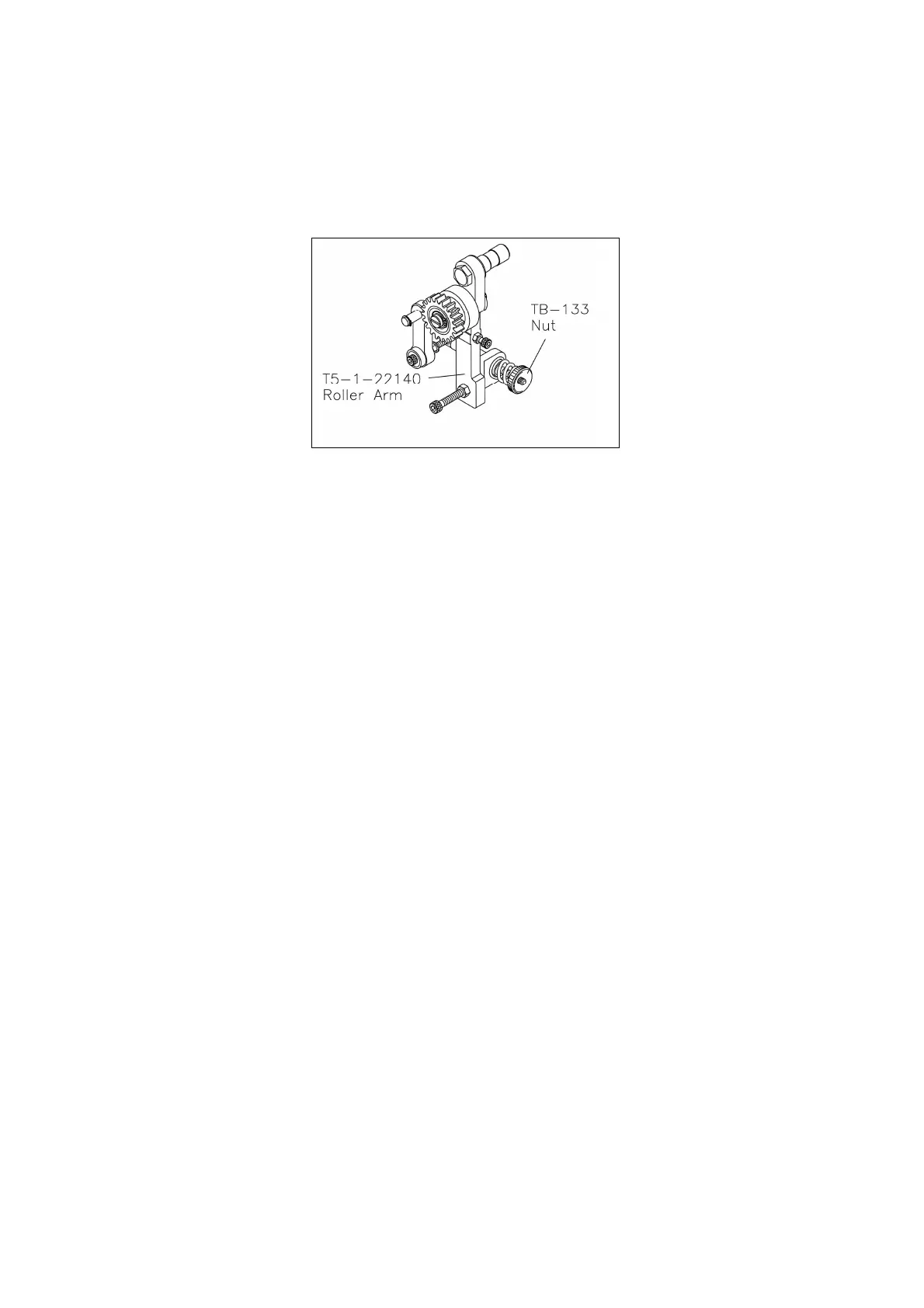

1. Turn Tension Adjustment Nut (TB-133) clockwise for an increase in the tension pressure
as illustrated in the following drawing.
2. The Bearing (BR635ZZ) for Rear Bar (TA-074) is broken or the tip of Rear Bar (TA-074)
is worn which makes Rear Bar unable to hold the straps after tensioning. This produces
bad quality tension.
3. Replace PC Board (T5-4-10141, T5-4-20501, T5-4-20511, T5-4-10142, T5-4-20502, or
T5-4-20512).
4. Replace Variable Resistor for tensioning (T5-4-10231).
