Transpak TP-201CE - Inside Tension Adjustment; Outside Tension Adjustment

-13-

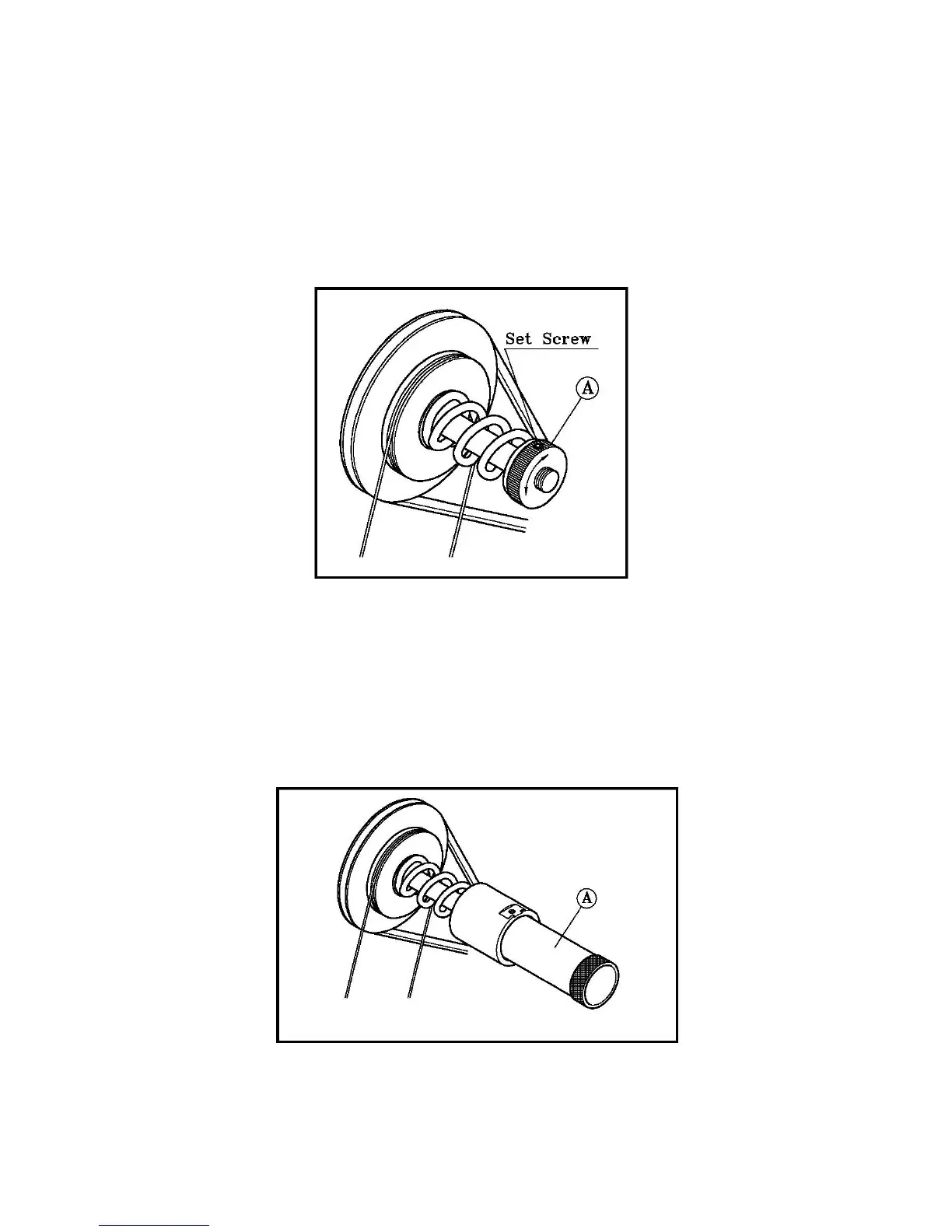

(2) Inside Tension Adjustment (For TP-201Y)
Tensioning strength should be adjusted properly by observing the tension of the strap
applied around the package.
The adjustment is made by tensioning adjustment nut A. Tensioning adjustment nut A is
turned clockwise to increase the strength and counterclockwise to decrease strength.
After adjustment, nut A should be fixed by a set screw.
(3) Outside Tension Adjustment (For TP-201/TP-202/TP-203/TP-202L)
The adjustment is made by tensioning adjustment nut A which is located at the back of the
machine.
Tensioning adjustment nut A is turned clockwise to increase the strength and
counterclockwise to decrease strength.
