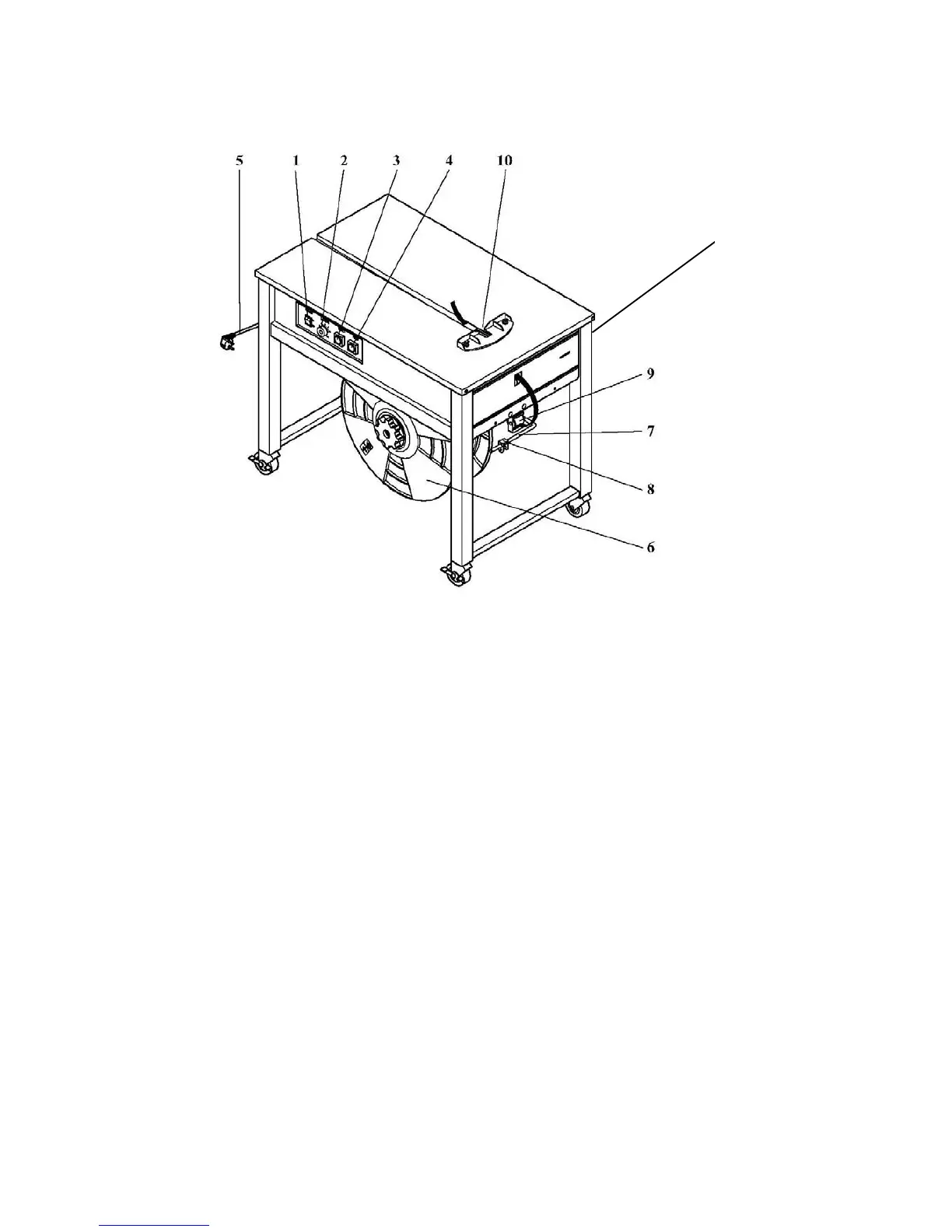

5. Machine and Operating Element
(1) Power Switch
The motor starts running when this switch is turned ON.
(2) Feeding Length Knob
Strap is automatically fed during the time preset by the knob.
(3) Reset Button
To pull strap back into machine and / or to cut off strap.
(4) Strap Feed Button
To feed strap out of machine freely.
(5) Power Plug
To be connected to a 110V or 220V/230V/240V source.
(6) Strap Reel
Slide on strap coil here. (If strap core is 280mm, you can
take off the center drum to have core size 200mm.)
(7) Brake
Stops the over-rotation of the Strap reel.
(8) Strap Guide for Brake
The strap is threaded through this guide.
(9) Strap Bypass Guide
The strap is passed through this guide.
(10) Strap Insertion Inlet
This is the strap inlet at which the leading strap end is
detected.
(11) Tension control
Turn clockwise to increase tension and counter clockwise to
decrease tension
