-17-
Step2. In case this remedy does not work due to strap jam, follow the instructions listed
below.

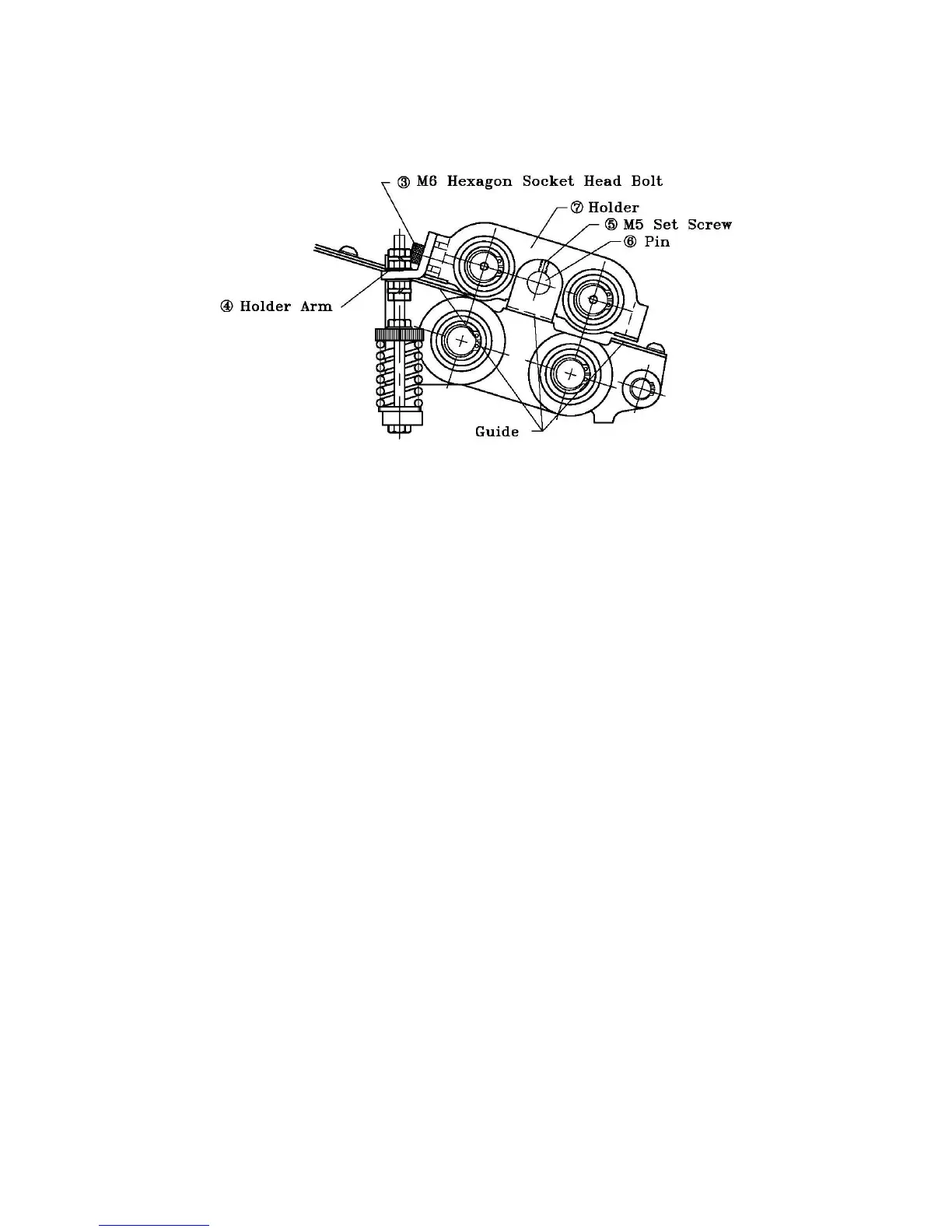

a. Loosen M5 Set screw (Part No. 5)
b. Remove Pin (Part No. 6) then lift Holder (Part No. 7) and repeat step 1. If this is
not successful, continue
c. Remove Strap Inlet Guides (Page 12 (B))
d. Remove M6 Hexagon Bolts (Part No. 3)
e. Remove Holder Arm (Part No. 4) from Holder (Part No. 7)
f. Lift out Holder (Part No. 7) and eliminate jam.
g. Reassemble from (f.) back to (a.)
To Next Page
