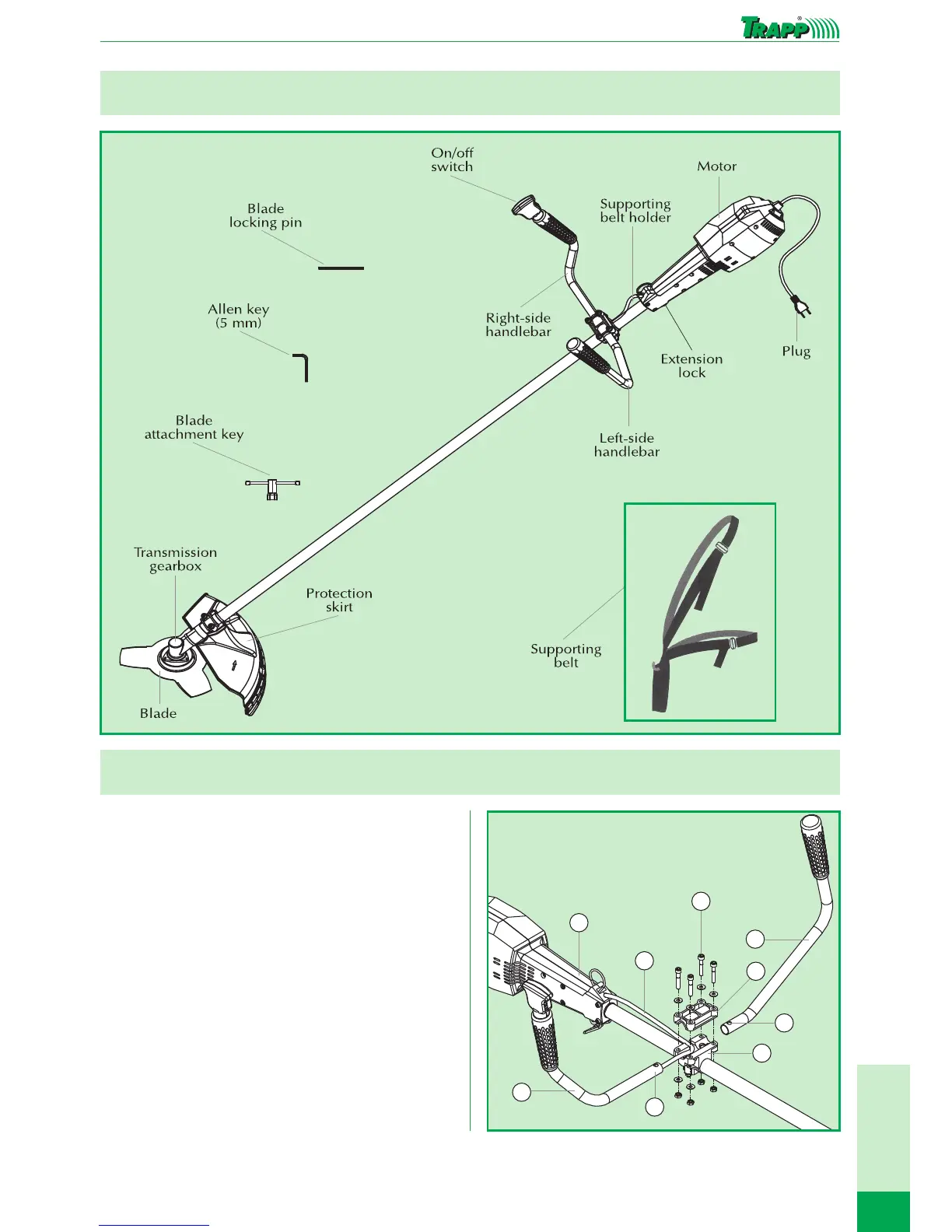

Main Components
Mounting the Handlebar
Put the machine on a firm surface and loosen
the four bolts (2) and remove the handlebar's
footstrap (3), adjust the right-side handlebar
(6), observing the mounting hole (8). Fit the
cord (4) as shown in the picture, bring the
footstrap and place the two bolts for this side
without tightening them. Then, fit the left-side
handlebar (1) on the other side, also observing
the mounting hole (8), and place the two bolts
for this side in the same way. When the four bolts
are back into place, tighten them. Finally, with
the mower placed on the supporting belt in the
operating position, adjust the distance between
the handlebar's support (5) and the motor (7), at a
comfortable working position.
