Brick Removal & Replacement

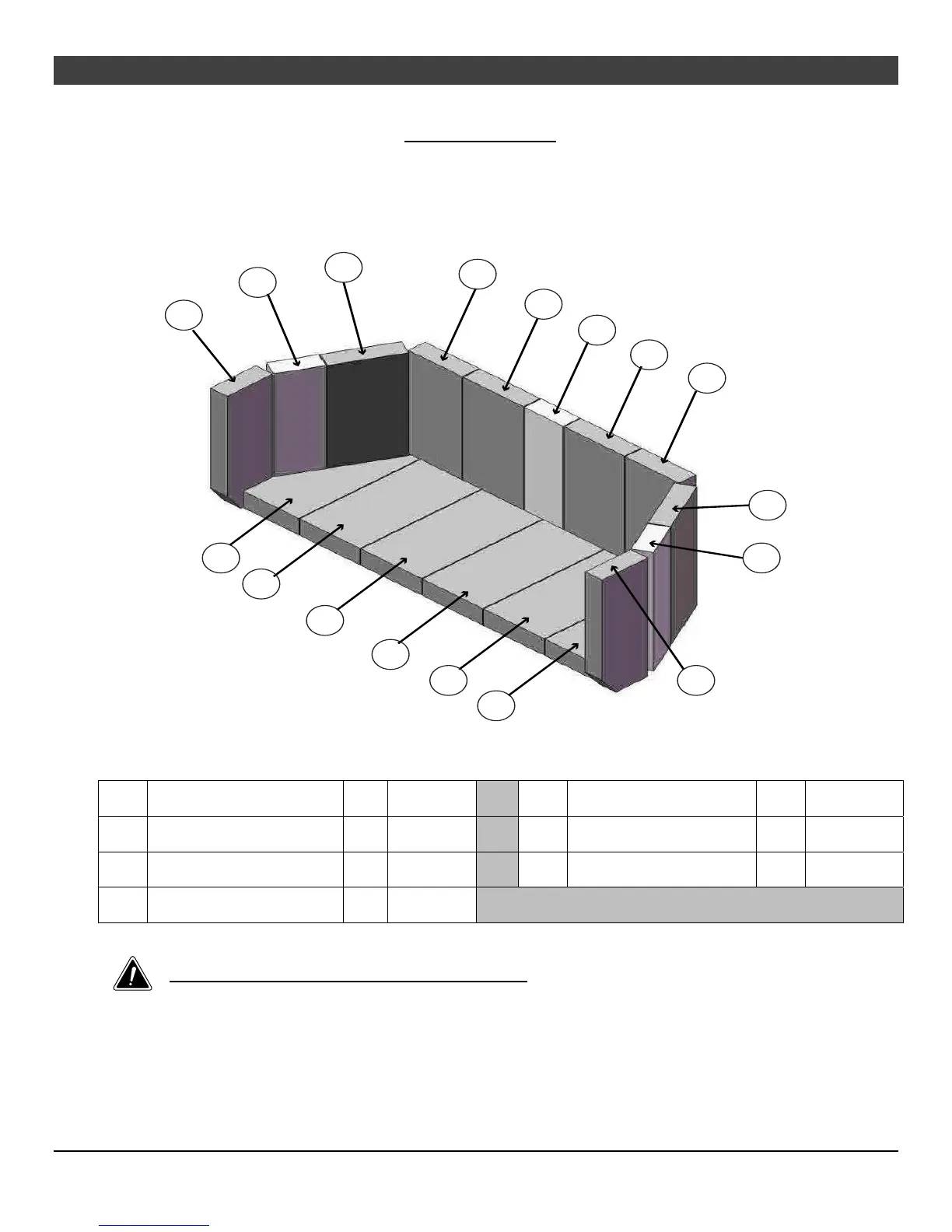

Floor and Side Brick
NOTE: “F” Denotes Full Size Brick (4-1/2” x 9”)
ID # Description Qty. Part # ID # Description Qty. Part #
1 Firebrick, Whole 8 251-00000 2 Cut Brick, 9x2.197x.593 2 251-00071
3 Cut Brick, 9x7.175x2.362 2 251-00070 4 Cut Brick, 9x4 251-00003
5 Cut Brick, 9x2-7/8 3 251-00068
Do not pry the brick - they chip and crack easily.
Remove the floor bricks first. The side bricks are pinned in place by the floor firebrick. Clean the firebox
prior to replacing the brick.
Refer to the section "Baffle Removal" on page 33 for details on removing the baffle bricks.
