8 Fireplace Insert Installation (for qualified installers only)
© Travis Industries 100-01273 4150514
Fireplace Requirements

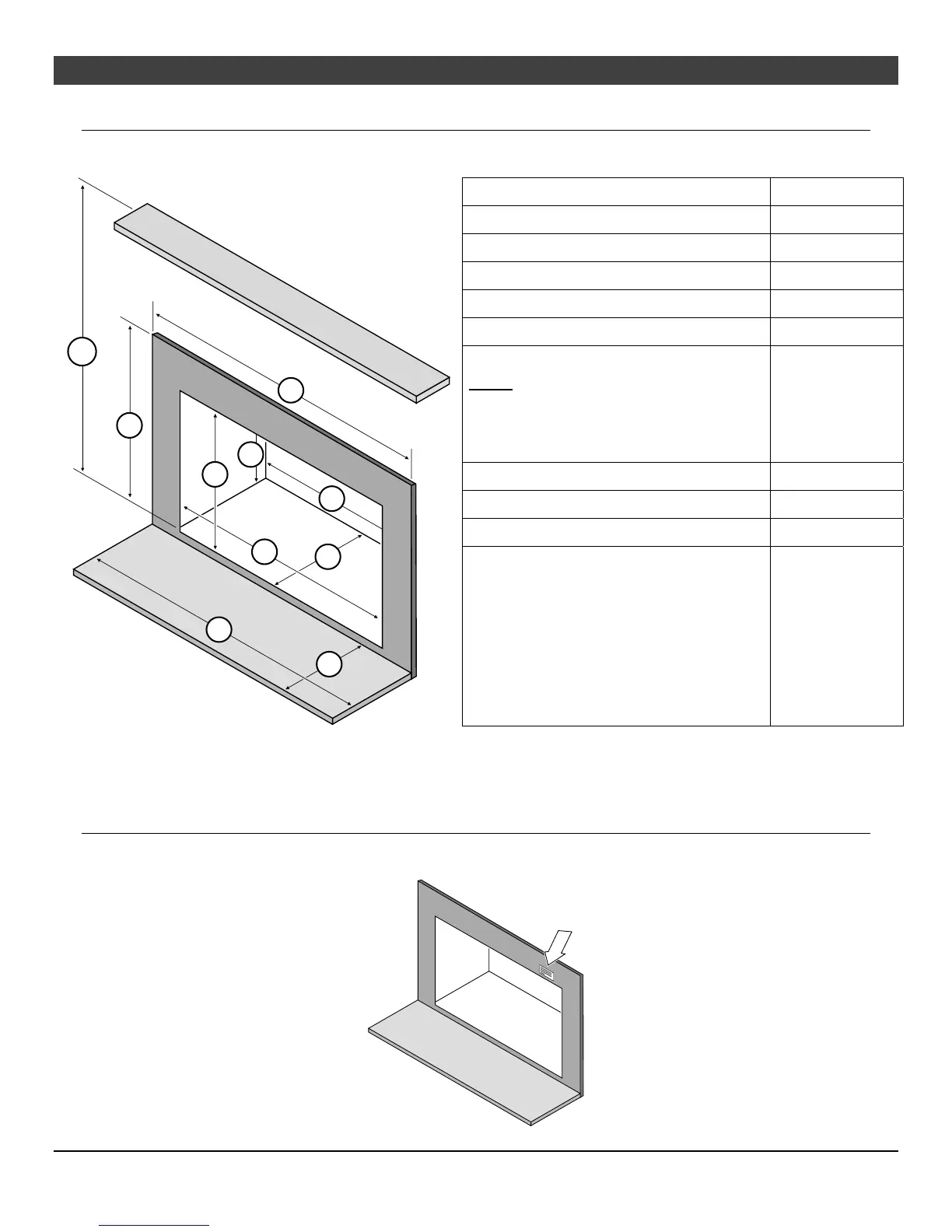

Figure 2 shows the minimum size requirements for the type of fireplace used.
Minimum Fireplace Size
a Height (front)
23.5" 597mm
b Height (rear)
22" 559mm
c Width (front)
33”* 839mm*
d Width (rear)
20.75” 528mm
e Depth
19” 483mm
f Hearth Depth
NOTE: Base of insert must be a
minimum 1” above combustible floor
surfaces (carpet, wood, etc.). See
“Hearth Requirements” for further
details.
18”** 458mm**
g Hearth Width
47" 1093mm
h Facing Width
42" 1194mm
i Facing Height Above Base of Insert
37" 940mm
j Mantel Height Above Base of Insert
41" 1042mm
Figure 2 * Includes 2” (51mm) for power cord installation.
** In the US, a 16” (407mm) hearth may be used if base of insert is 2”
(51mm) above combustible floor surfaces (carpet, wood, etc.).
Fireplace Altered Tag
Attach the "This fireplace has been altered..." plate to the fireplace (use two screws or other suitable
method). You may wish to place it in a location where it will be covered by the surround panels.
a
c
e
f
b
d
h
i
j
g
Non-Combustible Hearth
Combustible Mantel
Non-Combustible Facing
