PAGE 18 MEGA 960D PUMP OPERATION / MAINTENANCE MANUAL

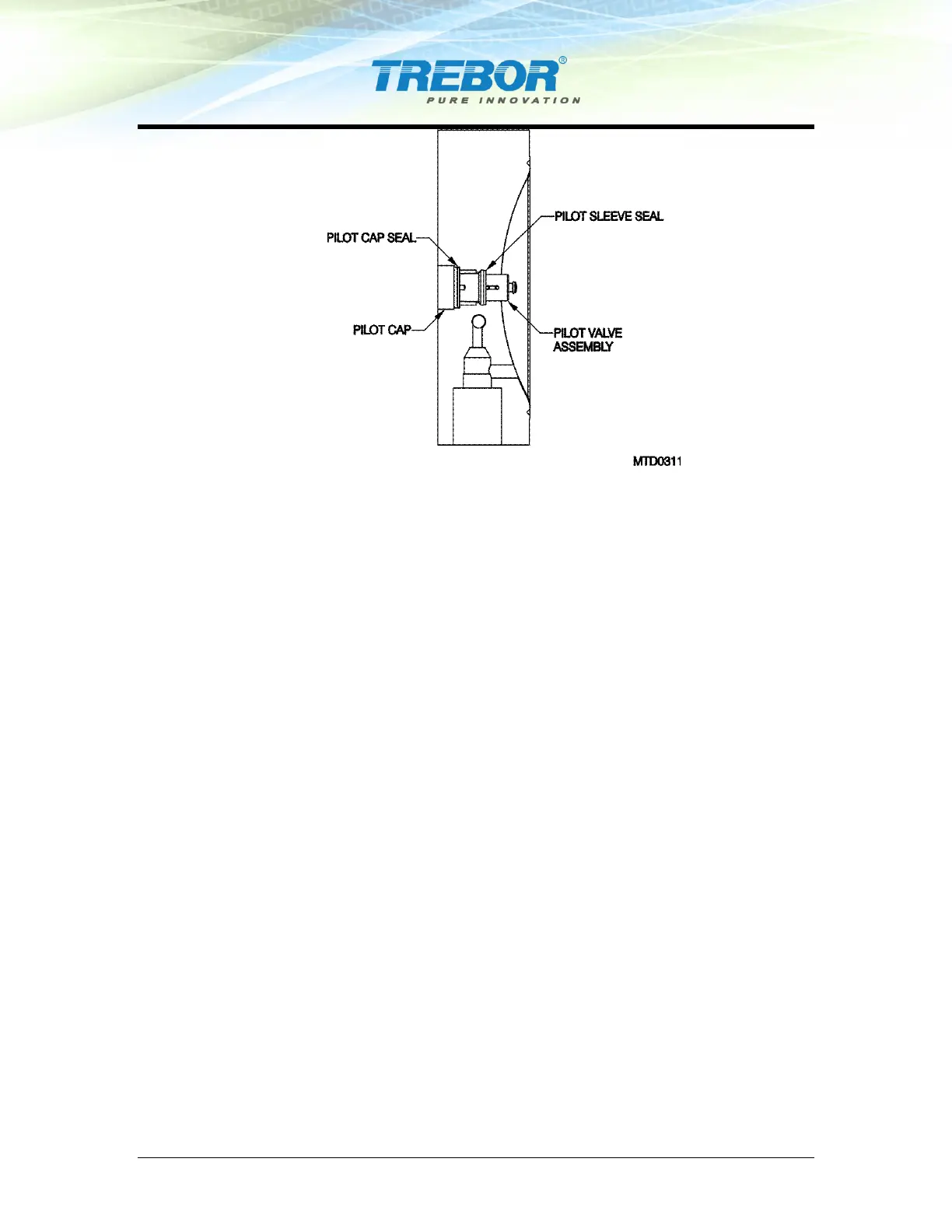

Figure 4-2
• Install pilot cap seal.
• Thread pilot valve cap to engage seal. Tighten to 45 in-lbs.
• Repeat process for both heads
• Install label cap (Slave Head only).
4.8.b Shuttle Spool Assembly
• Hold shuttle spool (item 1) upright and align slot in detent legs (item 2) with
notch on shuttle spool, see Fig. 1.
• Apply pressure upward onto base of detent legs with thumb and index finger,
as shown in Fig. 2.
• Tilt the detent ring (item 3) over one of the legs, and align the groove on the
inside of the detent ring with the end of the detent leg. Tilt the other side of
the ring down, expanding it slightly, so that the other detent leg snaps into the
detent ring groove. See Fig. 3. The completed assembly should look like
Fig. 4.
