Trebor Mega 960D - Shuttle Assembly (Master Head)

MEGA 960D PUMP OPERATION / MAINTENANCE MANUAL PAGE 19

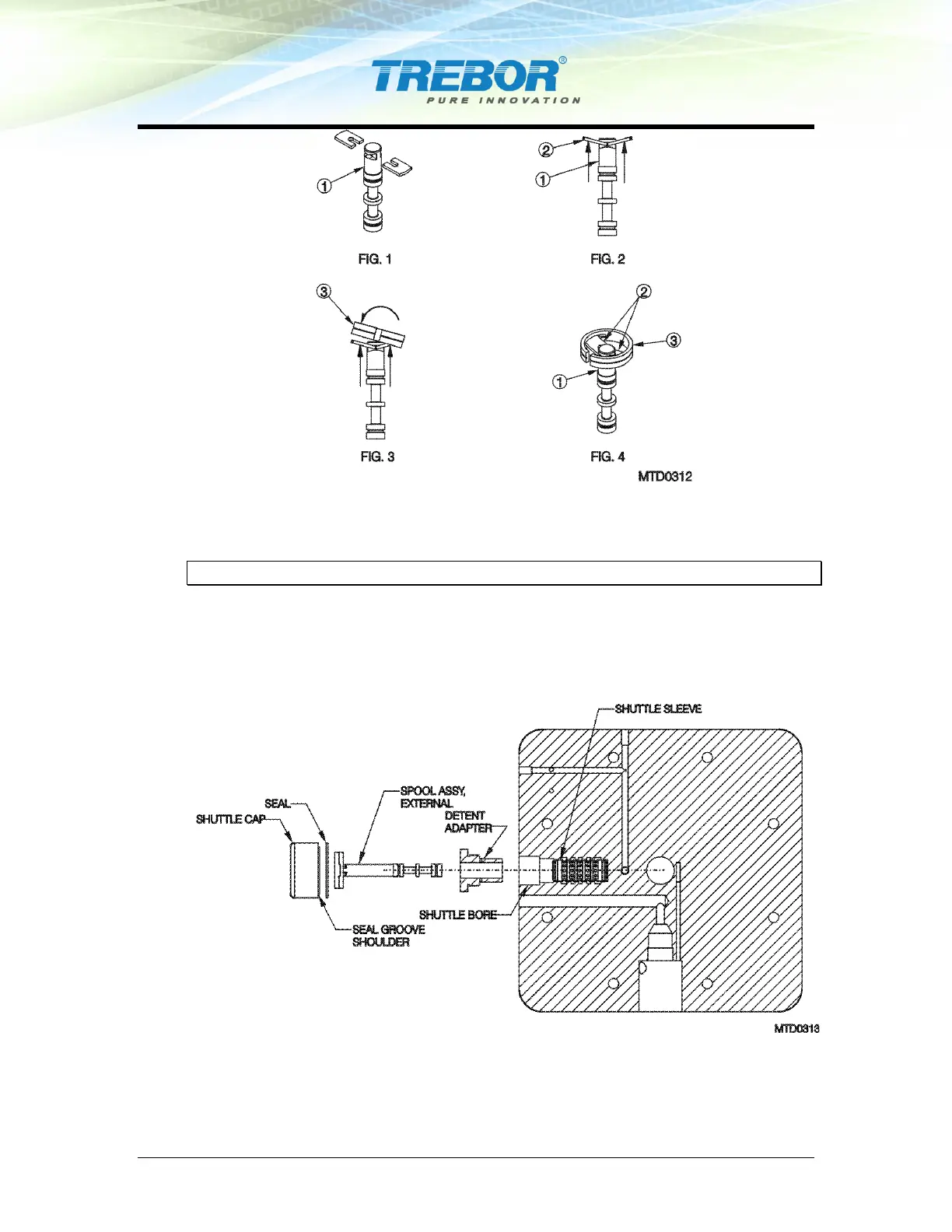

Figure 4-3
4.8.c Shuttle Assembly (Master Head)
NOTE: Ensure that the spool moves freely inside the sleeve prior to installation.
• Thread detent adapter into shuttle bore until flush against head. Tighten to 45
in-lbs.
• Insert shuttle spool assembly into adapter detent and Shuttle Sleeve. (Do not
lubricate.)
Figure 4-4
• Install the seal onto seal groove shoulder of the shuttle cap.
• Thread shuttle cap onto detent adapter. Tighten to 40 in-lbs.
