Trebor Mega 960D - 2 Options; Fluid Port Connection Options; Fluid Fittings; Surge Suppressor Hook-Up

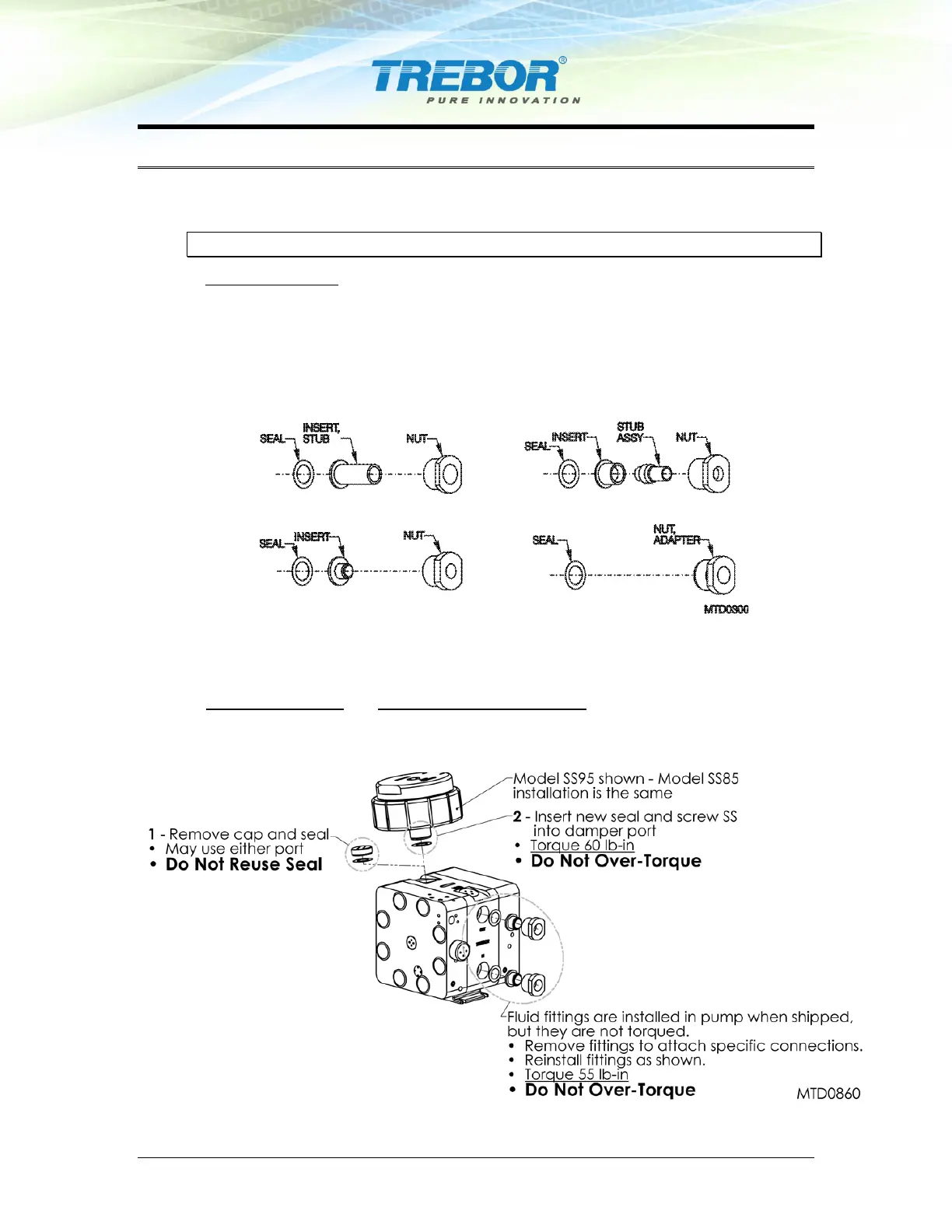

PAGE 6 MEGA 960D PUMP OPERATION / MAINTENANCE MANUAL
2 OPTIONS
2.1 FLUID PORT CONNECTION OPTIONS
NOTE: Use O-ring to seal stainless steel or other rigid plumbing.
Available Options
A) PFA Weldable pipe………..3/4” and 1”
B) Flare style tube adapter.…. 3/4" and 1”
C) PFA tube stub out………….3/4”
D) NPT adapter nut.…………..3/4” and 1”
E) PILLAR Super 300…………1” (Not Shown)
Figure 2-1
2.2 FLUID FITTINGS / SURGE SUPPRESSOR HOOK-UP
Surge Suppressor
Assembled Height: IN (CM)
SS85
17.12 (43.49)
SS95
15.06 (38.25)
Figure 2-2
A)
B)
C)
D)
