PAGE 22 MEGA 960D PUMP OPERATION / MAINTENANCE MANUAL

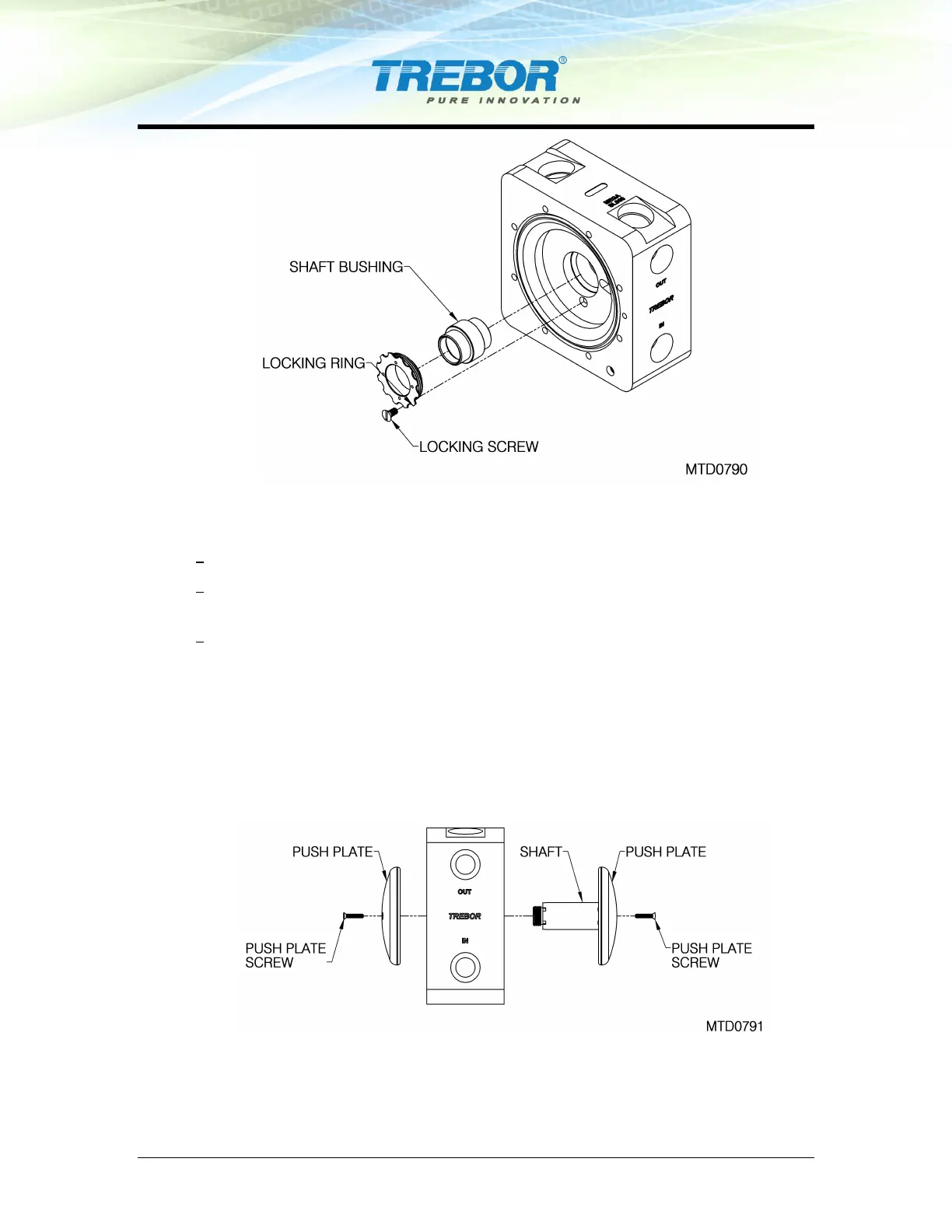

Figure 4-7
• Install shaft bushing per Figure 4-7.
• Install locking ring until flush with fluid cavity face and resistance is met.
• Tighten until next available notch aligns with locking screw hole, check to
assure that the shaft bushing does not move.
• Insert locking screw into hole and tighten until flush with locking ring.
• Thread one push plate onto shaft until push plate bottoms out on shaft
shoulder.
• Tighten push plate to 48 oz-in, and then rotate CW until locking screw hole is
aligned with the next available hole in shaft. The first push plate can be
visually aligned separate from the body.
• Install push plate locking screw. Tighten to 12 oz-in.
Figure 4-8
• Insert shaft through shaft bore as shown in figure 4-8.
• Thread on remaining push plate until push plate bottoms out on shaft
shoulder.
